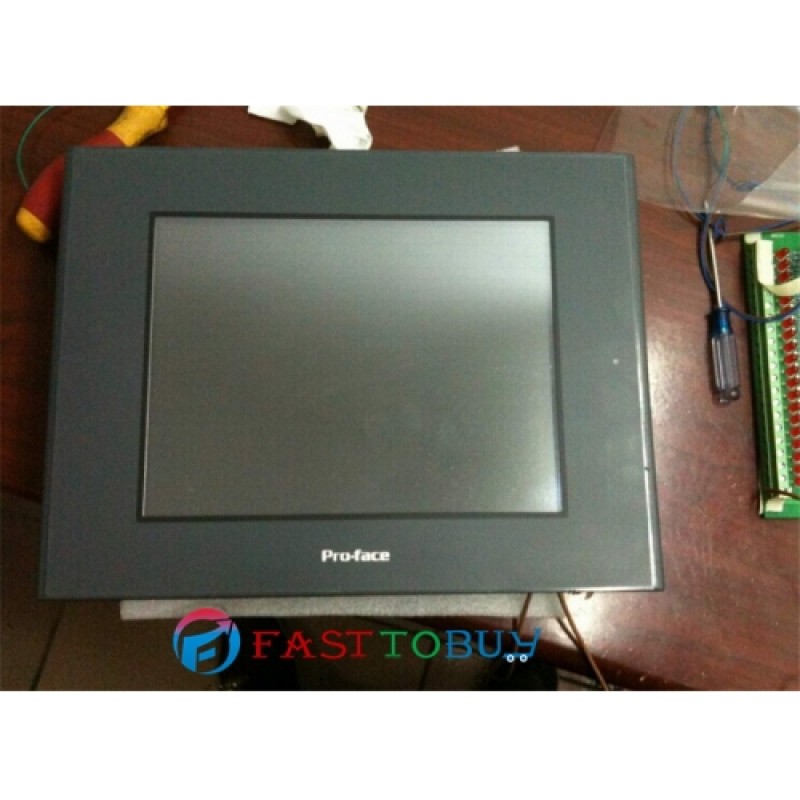

GP2500-SC41-24V HMI 10.4" 640*480 DC24V with Ethernet CF card New

Model (Global Code)

GP2500-SC41-24V (PFXGP2500SD)

Type

STN Color LCD

Display Colors

64 colors (3-speed blink)

Backlight

CCFL (Service life: 50,000 hrs. at 24hr. operation)

Resolution

640 × 480 pixels

Effective Display Area

211.2(W) × 158.4(H)(mm2)

Brightness Control

4 levels of adjustment available via touch panel

Contrast Control

8 levels of adjustment available via touch panel

Language Character Sets

ASCII: (Code page 850) Alphanumeric (incl. European characters) Chinese: (GB2312-80 codes) simplified Chinese fonts Japanese: ANK 158, Kanji : 6962 (JIS Standards 1 & 2) Korean: (KSC5601 - 1992 codes) Hangul fonts Taiwanese: (Big 5 codes) traditional Chinese fonts

Text

8 x 8 dots

80 char. × 60 rows

8 x 16 dots

80 char. × 30 rows

16 x 16 dots

40 char. × 30 rows

32 x 32 dots

20 char.× 15 rows

Character Sizes

8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots

Font Sizes

Width can be expanded 1 to 8 times. Height can be expanded 1/2 , 1 to 8 times.

Application Memory

FLASH EPROM 4MB

Data Backup Memory

256KB SRAM - uses lithium battery

Touch Panel Resolution

32 × 24 keys/ screen - 1 or 2 point touch

External
Interface

Serial Interface

Asynchronous Transmission: RS232C/ RS422 Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, Odd or Even
Data Transmission Speed: 2400 to 115.2kbps, 187.5Kbps

Expansion Serial
Interface

RS-232C Asynchronous Transmission Method: RS232C,
Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Odd or Even,Data Transmission Speed: 2400 to 38400 bps

Network Interface

IEEE802.3, 10BASE-T

CF Card Interface

1 slot

External CF Card
Interface

CF Card Front Maintenance Unit Connector

Sound Output
Interface

External Speaker Connection (Terminal Block) Monaural 1CH Speaker Output 70mW (Rated Load: 8ohm, Frequency: 1kHz) Sound Line Out Output 2.7Vp-p (Rated Load: 10kohm) Wire Gauge: AWG28 to AWG16

AUX
Input/Output
Interface

Remote
Reset
Input

Remote Reset Input: 1 point, Input Voltage: DC24V ±10%, Input Current: 4mA (TYP), Min. Input Pulse Width: 2ms  Operating Voltage: (When ON) Min. DC21.1V/ (When OFF) Max. DC3V Isolation Method: Photocoupler Isolation

Output

Output: 3 Points (RUN Output: 1 point, System Alarm Output: 1 point, External Buzzer Output: 1 point) Rated Voltage: DC24V, Max. Rated Current: 50mA/ point,
Wire Gauge: AWG28 to AWG16

Printer Interface

Compatible with NECPC-PR201/PL, EPSON ESC/P24-J84(C), HP Laser Jet, PCL 4 command, EPSON PM/Stylus (6-color ink), EPSON Stylus (4-color ink) compatible printers

Tool Connector

Asynchronous TTL level nonprocedure command I/F
Used for transferring data between the GP application software and the GP. Used for data transfer with the 2-Port feature. Used for a variety of devices, including a bar-code reader.

Model (Global Code)

GP2500-SC41-24V (PFXGP2500SD)

Electrical

Rated Voltage

DC24V

Rated Voltage Range

DC19.2 to 28.8V

Power Consumption

50W or less

Allowable Voltage Drop

10ms or less

Voltage Endurance

AC1000V, 20mA for up to 1 minute
(between charging and FG terminals)

Insulation Resistance

10Mohm or higher at DC500V
(between charging and FG terminals)

Environmental

Ambient Operating Temperature

0 to 50centigrade degree

Storage Temperature

-20 to 60centigrade degree

Ambient Humidity

10 to 90% RH (non-condensing wetbulb temperature 39centigrade degree or less)

Ambient Humidity

10 to 90% RH (non-condensing wetbulb temperature 39centigrade degree or less)

Vibration Resistance

Compatible with IEC61131-2
When vibration is NOT continuous:
10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2
When vibration is continuous:
10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2
X, Y, Z directions for 10 times (80min.)

Noise Immunity

Noise Voltage: 1000Vp-p Pulse Duration: 1µs
Rise Time: 1ns (via noise simulator)

Electrostatic Discharge Immunity

6kV (complies with IEC 61000-4-2 Level 3)

Corrosive Gases

Free of corrosive gasses

Structural

Grounding

100ohm or less, or your country's applicable standard

Ratings

Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12

External Dimensions

317W × 243H × 58D(mm3)

Weight

3.5kg (7.7lb) or less

Cooling Method

Natural air circulation
