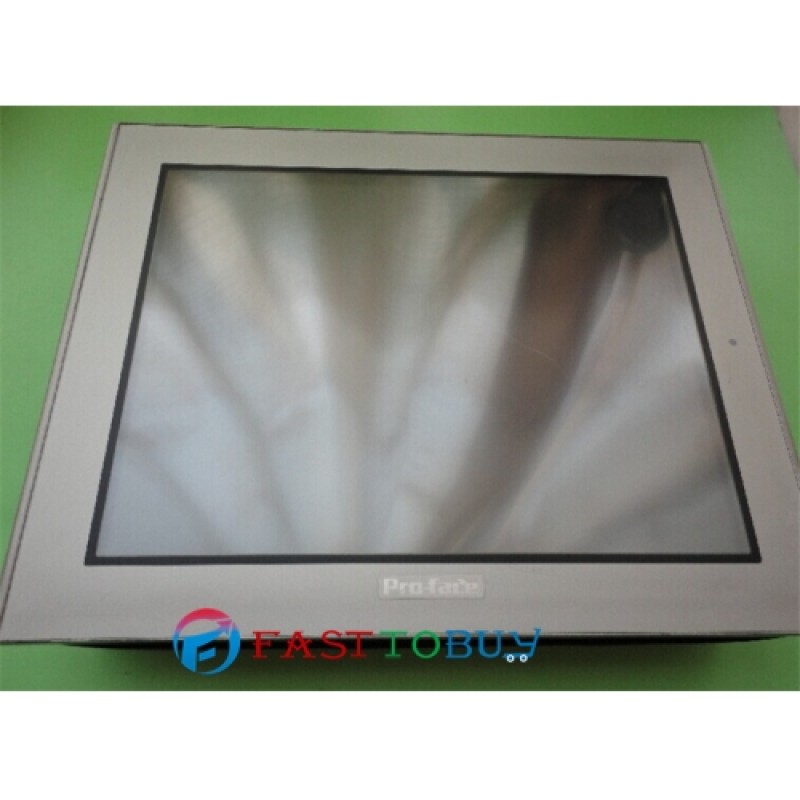

AGP3200-A1-D24 HMI 3.8" 320?40 DC24V with Ethernet New

Model

AGP3200-A1-D24

Display Type

Monochrome Amber/Red LCD

Display Size

3.8"

Resolution

320 x 240 pixels (QVGA)

Dot pitch

W0.24 x H0.24 mm [W0.01 x H0.01 in.]

Effective Display Area

W78.8 x H59.6 mm [W3.10 x H2.35 in.]

Display Colors

Monochrome (8 Levels)

Backlight

Amber/Red LED (User non replaceable parts. Factory replacement required.)

Brightness Control

16 Levels (Adjusted with the touch panel)

Contrast Control

8 Levels (Adjusted with the touch panel)

Backlight Service Life

50,000 hrs. or more (continuous operation at 25centigrade degree before backlight brightness decreases to 50%)

Language Fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts Stroke font: 6 to 127 pixel fonts Image font: 8 to 72 pixel fonts

Font Sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.

8 x 16 dots

40 char. x 15 rows

16 x 16 dots

20 char. x 15 rows

32 x 32 dots

10 char. x 7 rows

8 x 8 dots

40 char. x 30 rows

Application Memory

FLASH EPROM 6 MB*1

Data Backup

SRAM 320KB (uses lithium battery)*2

Clock Accuracy

65 sec/month (deviation at room temperature and power is OFF)*3

Touch Panel Type

Resistive Film (analog)

Touch Panel Resolution

1,024 x 1,024

Touch Panel Service Life

1,000,000 times or more

Serial (COM1)

RS-232C/422/485 Asynchronous Transmission Data Length: 7 or 8 bit Parity: none, Even or Odd Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps Connector: D-Sub9 (plug)

Ethernet (LAN)

IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1

USB (TYPE-A)

Conforms to USB1.1 (TYPE-A) x 1 Power Supply Voltage: DC 5 V ±5 % Output Current: 500 mA or less Communication Distance: 5 m or less

Model

AGP3200-A1-D24

Rated Input Voltage

DC 24V

Input Voltage Limits

DC 19.2 to 28.8V

Allowable Voltage Drop

2 ms or less

Power Consumption

13 W or less

In-Rush Current

60 A or less

Voltage Endurance

AC 1,000V, 20 mA for 1 minute (between charging and FG terminals)

Insulation Resistance

DC 500 V, 10 MΩ or more (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90 % RH (Wet bulb temperature: 39 centigrade degree or less - no condensation.)

Storage Humidity

10 to 90 % RH (Wet bulb temperature: 39 centigrade degree or less - no condensation.)

Dust

0.1 mg/m³ or less (non-conductive levels)

Pollution Degree

For use in Pollution Degree 2 environment

Atmosphere

Free of corrosive gases

Air Pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)

Vibration Resistance

IEC/EN61131-2 compliant 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.] 9 to 150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (100 min)

Concussion Resistance

IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times

Noise Immunity

Noise Voltage: 1,000 Vp-p Pulse Duration: 1 µs Rise Time: 1 ns (via noise simulator)

Electrostatic Discharge Immunity

Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)

Grounding

Functional grounding: Grounding resistance of 100Ω, 2mm² or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Structure

Equivalent to IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*4

Installation Configuration

Embedded panel

Cooling Method

Natural air circulation

Weight Approx.

0.4 kg [0.9 lb] or less (display unit only)

External Dimensions

W130 x H104 x D40 mm [W5.12 x H4.09 x D1.57 in.]

Panel Cut Dimensions

W118.5 x H92.5 mm [W4.67 x H3.64 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*5
