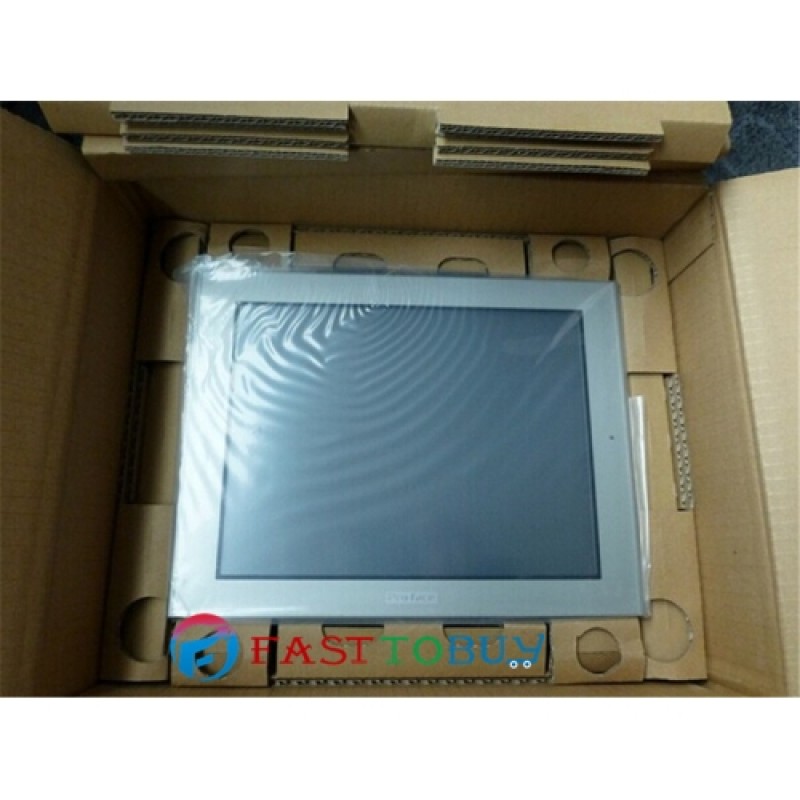

PFXGP4401TAD HMI 7.5" 640*480 DC24V with Ethernet SD Card New

Model

PFXGP4401TAD

Graphics Display Resolution

640 x 480 pixels (VGA)

Display Type and Size

TFT Color LCD (7.5 inch)

Display Colors

65,536 Colors (No blink)/16,384 Colors (Blink)

Display Area

W153.7 x H115.8 mm [W6.05 x H4.56 in.]

Touch Screen

Resistive film analog 1024 x 1024 resolution

USB

USB Type-A (2.0) x 1 , USB mini-B (2.0) x1

SD Card

SD Card slot x 1 (maximum 32 GB SD/SDHC Card)

Serial

COM1: RS-232C Asynchronous Transmission Data Length: 7 or 8 bit, Parity: None, Odd or Even, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector:D-Sub9 (plug)

COM 2: RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bit Parity: None, Odd or Even Stop Bit: 1 or 2 bit Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)

Ethernet

Ethernet IEEE802.3i/IEEE802.3u,10BASE-T/100BASE-TX

Backlight

White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.

Brightness and Contrast Controls

16 levels of adjustment available via touch panel or the software

Programming Memory

32MB FEPROM (GP-Pro EX V3.0 or later)

Backup Memory

512kb SRAM with battery backup

Model

PFXGP4401TAD

Input Voltage

Rated DC24V (Limits DC19.2 to 28.8V)

Power Consumption

12 W or less

Ambient Operating Temp.

0 centigrade degree to 55 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Altitude Endurance

800hPa to 1114hPA (2000 meters or lower)

Certifications

CE, UL Listed Cl 1Div2, RoHS, ABS (American Bureau  of Shipping), DNV (Norway– Marine)

Humidity/Ambient/Storage

10to90%RH(Wetbulbtemperature:39centigrade degree  or  less ( no condensation.)

Noise Immunity

Noise Voltage: 1,000 Vp-p, Pulse Duration: 1µs,Rise  Time: 1 ns (via noise simulator)

Cooling Method

Natural air circulation

Electrostatic Discharge Immunity

Contact Discharge Method:  6  kV  (IEC/EN61000-4-2  Level  3)

Vibration Resistance

IEC/EN61131-2 compliant,5to9Hz Single amplitude3.5  mm[0.14  in.],9 to 150 Hz Fixed acceleration: 9.8  m/s², X, Y,Z directions for 10cycles  (approx.  100 min)

Shock during operation

IEC/EN 61131-2 compliant 147m/s2, X, Y, Z directions for 3 times

Rating

Equivalent to IP65f, Nema #250 Type 4x13 (Equivalent  to  NEMA 12 with the addition of “Oil  or  Spraying  and Splashing”) when properly installed in  an  enclosure

Weight

1.2 kg [2.6 lb] or less (display unit only)

External Dimensions

W218 x H174 x D60 mm [W8.58 x H6.85 x D2.36 in.]

Warranty

Two-year standard (maximum 4 years)
