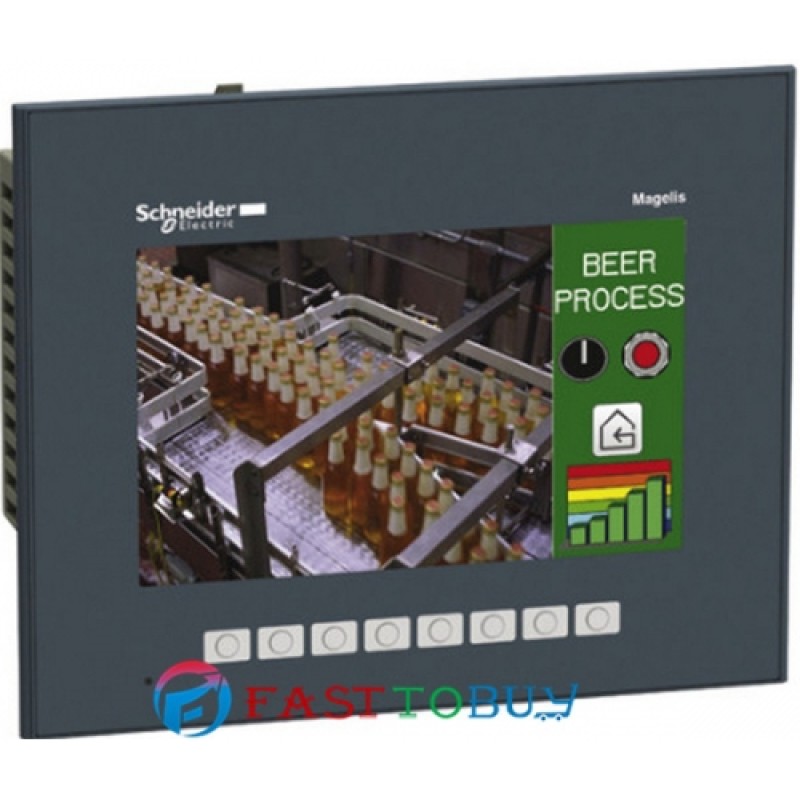

HMIGTO3510 HMI 7" 800*480 24VDC TFT Touchscreen Panel New

Range of product

Magelis GTO

Product or component types

Advanced touchscreen panel

display size

7 inch

display type

TFT color LCD

display color

65536 colors

resolution

800 x 480

Supply

External source

Control button type

Pushbutton, key type , marking: F1...F8, number of function keys = 8 (operation defined using Vijeo Designer)

Battery type

Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 d, battery life = 10 yr

Terminal type

Touchscreen display

Display type

Backlit colour TFT LCD

Display resolution

800 x 480 pixels WVGA

Touch sensitive zone

1024 x 1024

Touch panel

Resistive film, 1000000 cycles

Backlight lifespan

50000 hours (white) at 25 centigrade degree

Brightness

16 levels - control by software

16 levels - control by touch panel

Character font

ASCII

Chinese (simplified Chinese)

Japanese (ANK, Kanji)

Korean

Taiwanese (traditional Chinese)

[Us] rated supply voltage

24 V DC

Supply voltage limits

19.2...28.8 V

Inrush current

<= 30 A

Power consumption in W

<= 5.5 W (when backlight is dimmed)

<= 5 W (when backlight is OFF)

<= 8 W (when power is not supplied to external devices)

<= 12 W

Software designation

Vijeo Designer configuration software >= V6.1

Memory description

64 MB flash (EPROM)

Data backed up

128 kB internal RAM (SRAM)

Data storage equipment

SDHC card <= 32 GB

SD card <= 32 GB

Product mounting

Flush mounting

Integrated connection type

Ethernet RJ45, interface: IEEE 802.3

Ethernet RJ45, interface: 10BASE-T/100BASE-TX

USB 2.0 port mini B USB

USB 2.0 port USB type A

COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compati-

ble with Siemens MPI

COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps

COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200

bps

Downloadable protocols

Modbus TCP Schneider Electric Modicon

Third party protocols Siemens Simatic

Third party protocols Rockwell Automation Allen-Bradley

Third party protocols Omron Sysmac

Third party protocols Mitsubishi Melsec

FIPWAY Schneider Electric Modicon

Modbus Plus Schneider Electric Modicon

Uni-TE Schneider Electric Modicon

Modbus Schneider Electric Modicon

Product weight

1.2 kg
