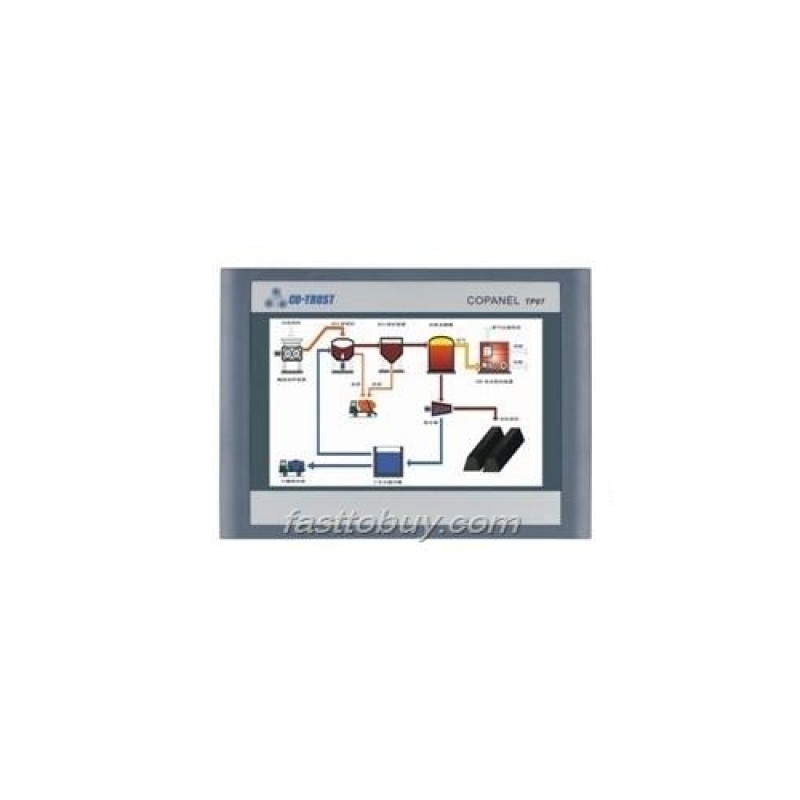

CTS6 T07-CH020 CO-Trust Touch Screen HMI 800x480 7 inch original brand new

Specification

TP07

Display

Type

7.0 inch

Resolution?W×H?Pixel?

800 ×480

Colors

256K colors

Luminance?CD/??

350

Visual Dimension((up/down/left/right)

50/70/70/70

Background light

LED

Average lifetime of background light?25??

50000 hours?Typical?

Weight

2KG

Installation Angle

Vertical

Interface

RS485/RS232/USB

?SD card?CAN?LAN reserved?

Variables

Number of variables in project file

2048

Alarms

Number of alarm classes

32

Number of discrete alarms

2000

Number of analog alarms

200

Character length of an alarm

50

Screens

Number of screens

100

Number of fields per screen

200

Number of variables per screen

200

Number of complicated objects per screen

5

Recipes

Number of recipes

100

Number of elements per recipe

500

Number of data records per recipe

200

Logs

Number of logs

20

Number of entries per log file

5?000?000

Trends

Number of trends

300

Text list and graphic list

Number of text lists

400

Number of graphic lists

500

Total number of lists

500

Number of entries per text or graphic list

256

Number of graphic objects

1000

User administration

User groups

50

Authorization

32

Number of users

50

Size of project file

4MB

System keys for configuration

×

Number of connections

32

Number of runtime languages

√

Font

Song typeface

Online help

×

schedules

√

Additional functions

×

Software

Screen aiming

Audio feedback setting of touch screen

On-off setting of LED background light

Runtime clock

System version information

Touch panel

Type

4-wire resistive

Transparency

Over 80%

Response speed

Within 10ms

Life time

More than 1 million times

Audio output

Touch panel operation

Audio feedback

Communication

RS485

2?communicating  with PLC,PPI/MPI?MODBUS?Omron Hostlink/Multilink?Mitsubishi Protocol

USB Master

2, connected with U disk

USB Slaver

1, connected with PC for download program

Power supply

Working voltage

9VDC~28VDC

Rated Voltage

24VDC

Rated current

0.3A

Physical size

Front panel?l*w  mm?

214×156

Perforate size?l*w  mm?

192×138

Environmental conditions

Working temperature

-10?~60?

Transport/ storage temperature

-20?~70?

Humidity

10%~90%?non-condensing

Sinusoidal vibration

10 to 50Hz(3 axis direction?1G)

Package drop

1M of height , free drop

PIN

PORT1

PORT0

1

Ground

Ground

2

-

-

3

RS485 D1+

, , RS485 D1+

4

-

-

5

0V DC

0V DC

6

+5V DC

+5V DC

7

24VDC

24VDC

8

RS485 D1-

RS485 D1-

9

-

-

10

Ground

Ground

11

Ground

Ground
