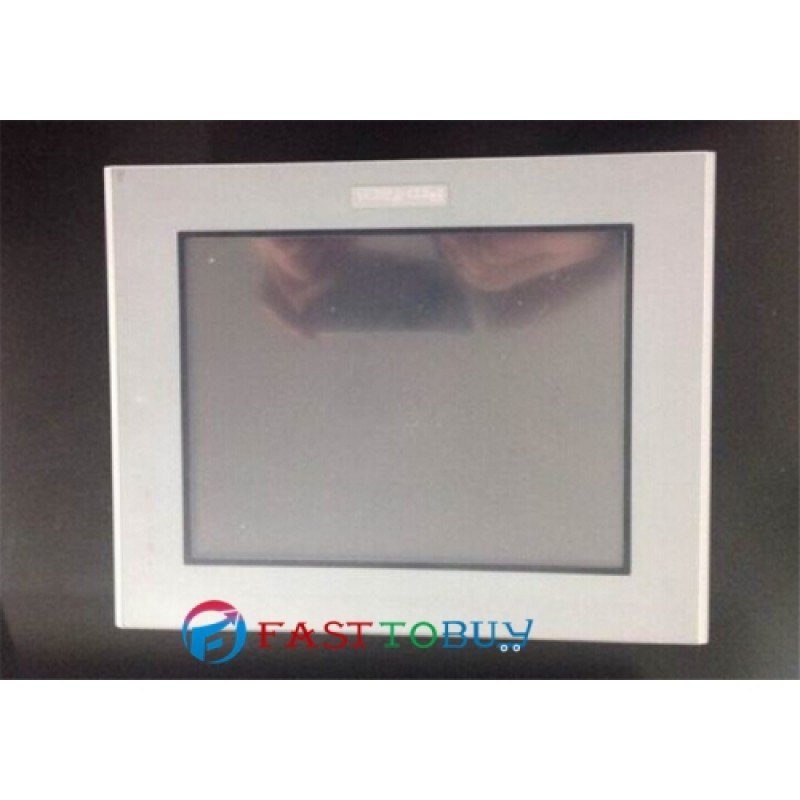

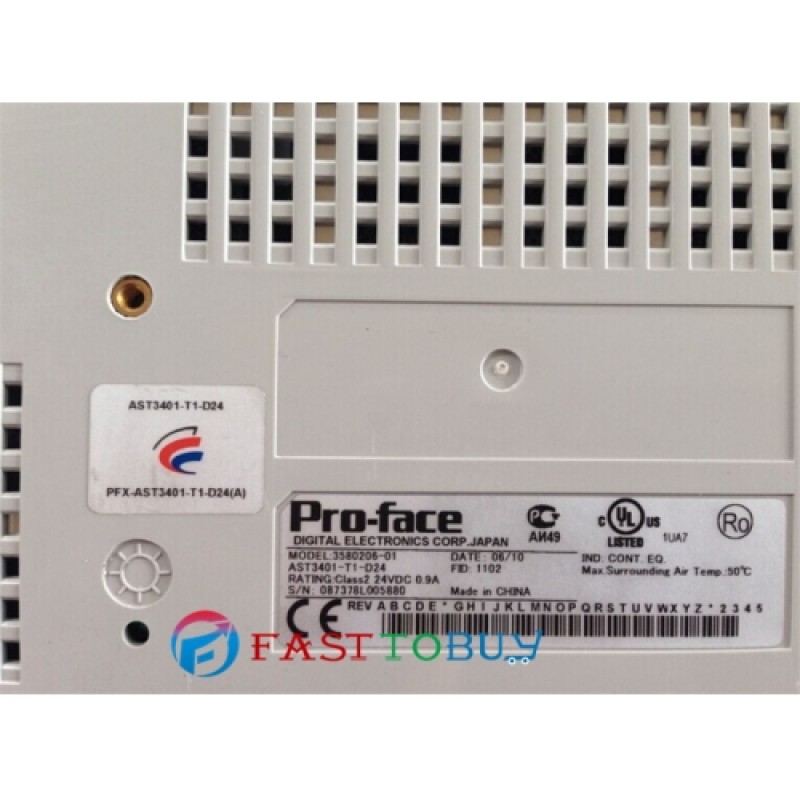

AST3401-T1-D24 HMI 7.5" 640*480 DC24V New

Model

AST3401-T1-D24

Display Type

TFT Color LCD

Display Size

7.5"

Display colors

256 colors (no blink) / 64 colors (3-speed blink)

Resolution

640×480 dots

Brightness Control

8 gradations (adjustable via touch panel)

Contrast Adjustment

None

Language Fonts

Japanese: 6962 ( JIS standards 1 & 2 including 607 non-kanji characters ) ANK: 158  ( Korean fonts, Simplified Chinese and Taiwanese traditional Chinese fonts are downloadable)

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 dot fonts, Stroke font: 6 to 127 dot fonts, picture font:8 to 72 dot fonts

Font Sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times

8 x 8 dots

80 char. × 60 rows

8 x 16 dots

80 char. × 30 rows

16 x 16 dots

40 char. × 30 rows

32 x 32 dots

20 char. × 15 rows

Application

6 MB FLASH EPROM

Data Backup

320 KB SRAM(Li battery)

Type

Resistive film  ( analog)

Resolution

1024×1024

Serial Interface  ( COM1)

Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 Bits, Data Transmission Speed: 2400 bps to 115.2 kbps, Connector: D-Sub 9-pin plug

Serial Interface  ( COM2 )

Asynchronous Transmission: RS-422/485 (ST-3211A only as for RS-485), Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: none, Odd or Even, Data Transmission Speed: 2400 b ps to 115.2kbps, ( MPI: 187.5kbps) , Connector: D-Sub 9pin plug

USB(type-A)

USB Interface USB1.1, USB TYPE A connector x 1,voltage : DC5V ±5%,output current: 500Ma or less. communication distance:5M or less

Model

AST3401-T1-D24

Rated Input Voltage

DC 24V

Input Voltage Limits

DC 19.2 to 28.8V

Power Consumption

22W or less

In-rush current

10ms or less

Insulation Resistance

DC500V 10Mohm (min.), (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Storage Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Grounding

Functional Grounding: D-type grounding (SG-FG common)

Protection Ratings

Equivalent to IP65f NEMA #250 TYPE 4X/13   ( For front panel of installed unit )

Weight

1.8kg or less
