Introduction:

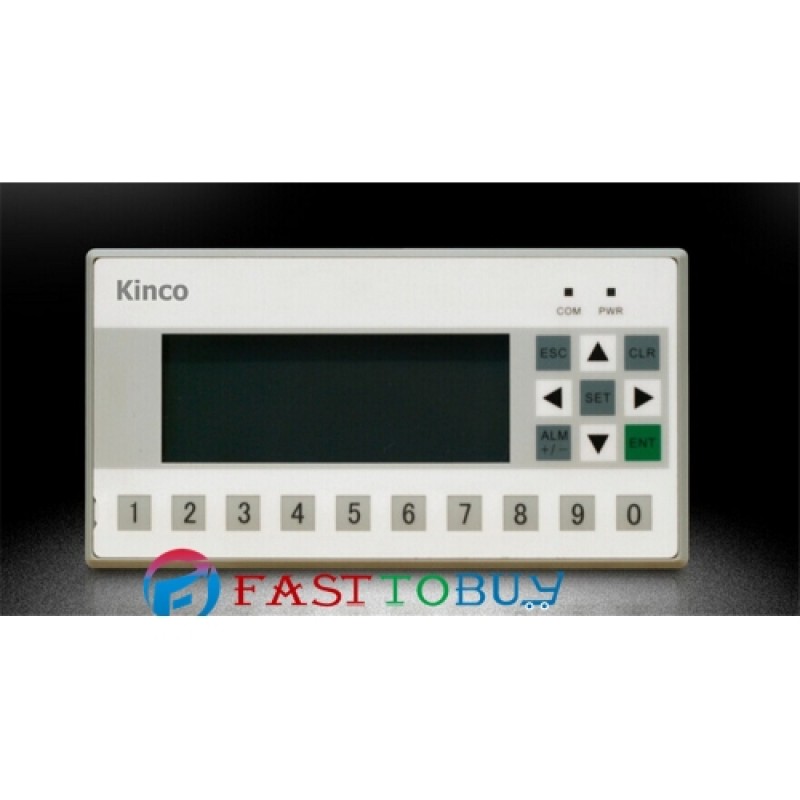

The MD series programmable text display is a small touch-tone human-machine interface, you can communicate with the PLC of the mainstream market, its internal with real-time clock and alarm list, and text, light and other forms of surveillance, and modify the PLC internal registers or the value and status of the relay, so that the operator is able to freely control the machinery and equipment.
Specifications:
MD304L
Display: 4.3 "FSTN,
Memory: 64KB of Flash ROM
Color: Monochrome...
Type | MD304L |
Specification | |
Shell color | Silver white |
Display | 4.3"FSTN |
Resolution | 192 × 64 pixels (4 lines x 12 Chinese characters display) |
color | Monochrome |
Brightness | 97 cd/m² |
Contrast | Potentiometer adjustment |
Backlight | White LED |
LCD life | 25 ± 2 ° C, 65 ± 10% RH conditions, more than 50,000 hours |
Touch screen | Non-touch |
CPU | 8bits processor |
Memory | 64KB Flash ROM |
The recipe memory | 2KB EEPROM |
Real-time clock | Yes(30PPM) |
Function keys | 20 buttons, can be freely defined (including 10 digital input button) |
Communication port | COM0: PC RS232 & PLC RS485/422 & PLC RS232 |
Print port | NO |
Working power | 21~28 VDC |
Current consumption | MAX150mA@24VDC |
Immunity tests | The voltage 1500Vp-p, pulse period 1us continuous 1s |
Pressure test | 500 V AC 1 minute |
Insulation resistance | More than 10M Ohm @ 500V DC |
Shock test | 10 ~ 25 Hz (X, Y, Z direction 2G / 30 minutes) |
Degree of protection | IP65(front panel) |
Operating ambient temperature | 0~ 50 ° C |
Operating ambient humidity | 20~ 90 % RH (Non-condensing) |
Storage Temperature | -20 ° C ~70 ° C |
Case Material | Engineering plastics ABS+PC |
Dimensions | 175× 90× 26mm |
Display size | 101× 36 mm |
Installation hole size | 165× 78 mm |
Cooling method | Natural air-cooled |
Weight | 0.3 Kg |
