4.3"FSTN Single Color HMI Text MD214L 192*64 19 Keys with Free Programming Cable&Software Wholesale

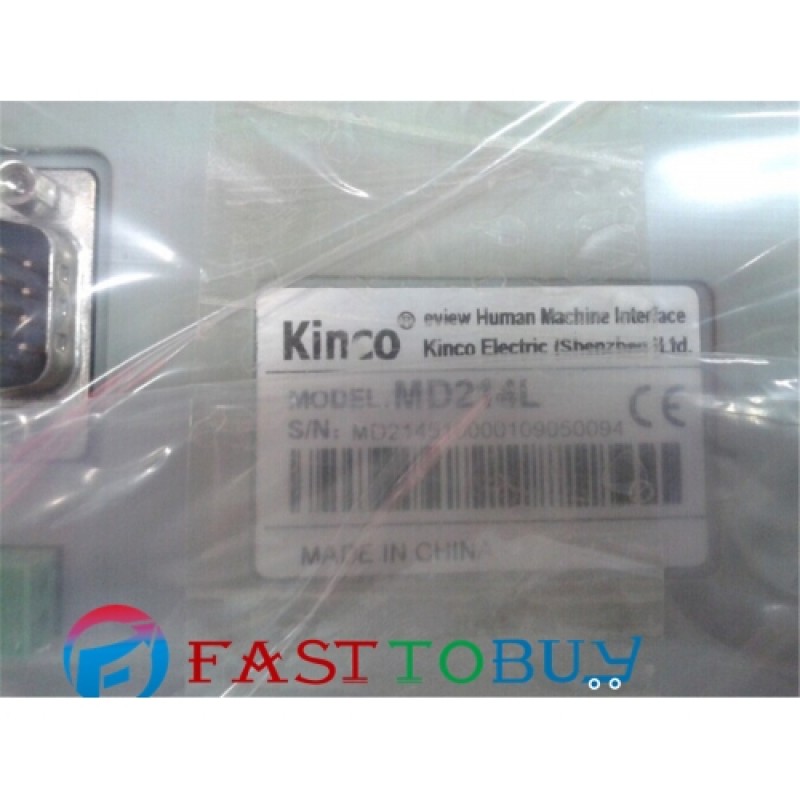

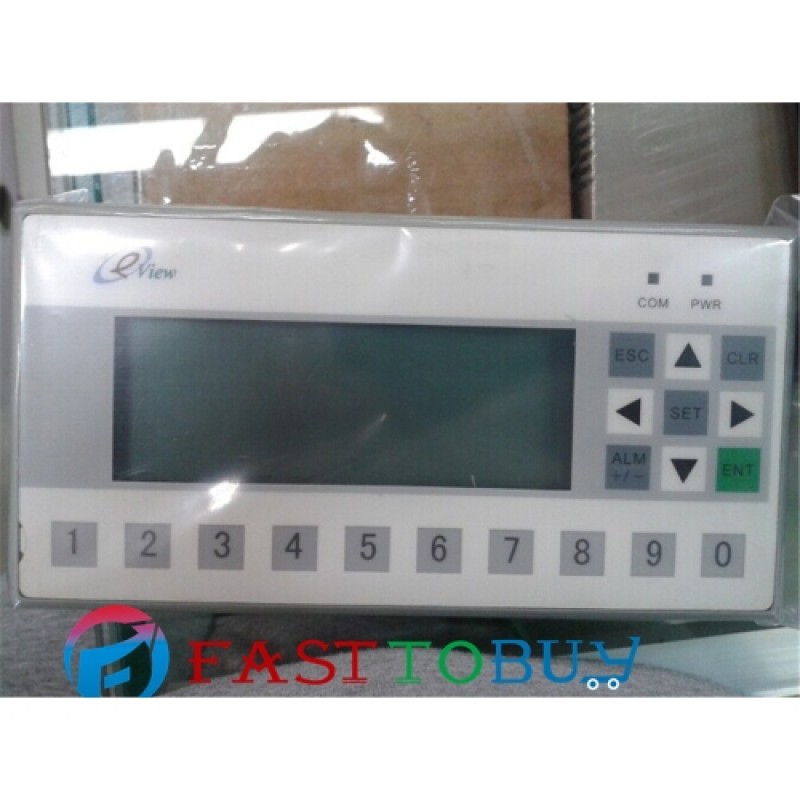

Kinco Eview 4.3" STN HMI MD214L New In Box

Introduction:

The MD series programmable text display is a small touch-tone human-machine interface, you can communicate with the PLC of the mainstream market, its internal with real-time clock and alarm list, and text, light and other forms of surveillance, and modify the PLC internal registers or the value and status of the relay, so that the operator is able to freely control the machinery and equipment.

Specifications:

MD214L

Display: 4.3"FSTN

Memory: 64KB Flash ROM

Color: monochrome

Type

MD214L

Specification

Shell color

silvery white

Display

4.3"FSTN

Resolution

192 × 64 pixels (support 4 lines x 12 Chinese characters display)

color

Monochrome

Brightness

97 cd/m²

Contrast

Potentiometer adjustment

Backlight

White light LED

LCD life

25 ± 2 ° C, 65 ± 10% RH conditions, more than 50,000 hours

Touch screen

Non-touch

CPU

8bits processor

Memory

64KB Flash ROM

The recipe memory

NO

Real-time clock

NO

Function keys

19 buttons, can be freely defined (including 10 digital input button)

Communication port

COM0: PC RS232 & PLC RS485/422 & PLC RS232

Print port

NO

Working power

21~28 VDC

Current consumption

MAX150mA@24VDC

Immunity tests

The voltage 1500Vp-p, pulse period 1us continuous 1s

Pressure test

500 V AC 1 minute

Insulation resistance

More than 10M Ohm @ 500V DC

Shock test

10 ~ 25 Hz (X, Y, Z direction 2G / 30 minutes)

Degree of protection

IP65(front panel)

Operating ambient temperature

0~ 50 ° C

Operating ambient humidity

20~ 90 % RH (Non-condensing)

Storage Temperature

-20 ° C ~70 ° C

Case Material

Engineering plastics  ABS+PC

Dimensions

175× 90× 26mm

Display size

101× 36 mm

Installation hole size

165× 78 mm

Cooling method

Natural air-cooled

Weight

0.3 Kg
