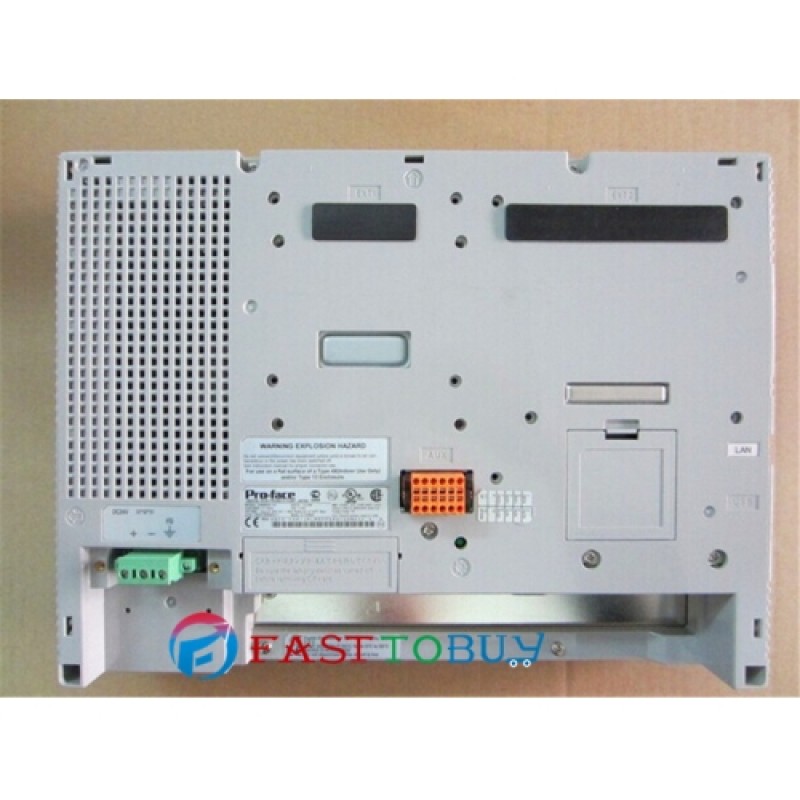

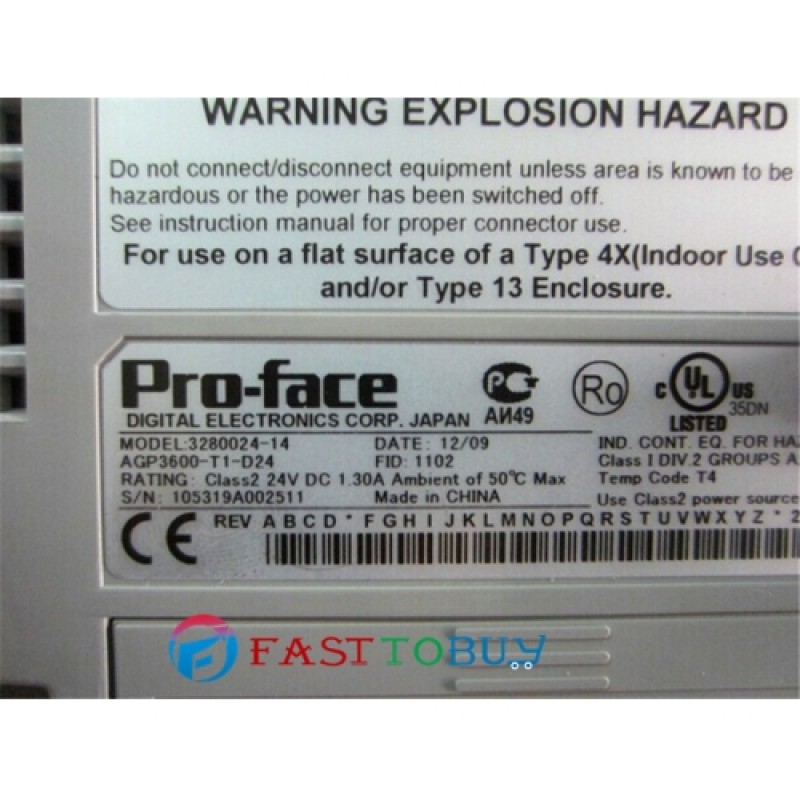

AGP3600-T1-D24 HMI 12.1" 800*600 DC24V with Ethernet CF card New

Model

AGP3600-T1-D24

Display Type

TFT Color LCD

Display Size

12.1"

Resolution

800 x 600 pixels (SVGA)

Dot pitch

W0.3075 x H0.3075 mm [W0.01 x H0.01 in.]

Effective Display Area

W248 x H186.5 mm [W9.76 x H7.34 in.]

Display Colors

65,536 Colors (No blink)/16,384 Colors (Blink)

Backlight

When GP Revision 5 and later:<br>*1

Brightness Control

8 Levels (Adjusted with the touch panel)

Contrast Control

Not applicable

Backlight Service Life

50,000 hrs. or more (continuous operation at 25centigrade degree before backlight brightness decreases to 50% or backlight starts to blink)

Language Fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font Sizes

Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.

8 x 16 dots

100 char. x 37 rows

16 x 16 dots

50 char. x 37 rows

32 x 32 dots

25 char. x 18 rows

8 x 8 dots

100 char. x 75 rows

Program Area

FLASH EPROM 132 KB

Number of Step

Equivalent to 15,000 steps

Variable Area

SRAM 64 KB (uses lithium battery)

Application Memory

FLASH EPROM 16 MB

Data Backup

SRAM 320KB (uses lithium battery)*5

Clock Accuracy

65 sec/month (deviation at room temperature and power is OFF)

Touch Panel Type

Resistive Film (analog)

Touch Panel Resolution

1,024 X 1,024

Touch Panel Service Life

1,000,000 times or more

Serial (COM1)

RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)

Serial (COM2)

RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)

Ethernet (LAN)

IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1

Expansion Unit 1

Communication Expansion Unit x 1

Expansion Unit 2

VM/DVI Input Expansion Unit x 1

USB (TYPE-A)

Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less

Expansion Memory

Function Expansion Memory x 1 (Inside interface cover)

CF Card

Compact Flash CF Card Slot (TYPE-II) X 1

Sound Output

Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1

AUX Input/Output

Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1

Model

AGP3600-T1-D24

Rated Input Voltage

DC 24V

Input Voltage Limits

DC 19.2 to 28.8V

Allowable Voltage Drop

10 ms or less

Power Consumption

50 W or less

In-Rush Current

30 A or less

Voltage Endurance

AC 1,000V, 20 mA for 1 minute (between charging and FG terminals)

Insulation Resistance

DC500V 10Mohm (min.), (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Storage Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Dust

0.1 mg/m³ or less (non-conductive levels)

Pollution Degree

For use in Pollution Degree 2 environment

Atmosphere

Free of corrosive gases

Air Pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)

Vibration Resistance

IEC/EN61131-2 compliant, 5 to 9Hz Single amplitude 3.5mm [0.14in.], 9 to 150Hz Fixed acceleration: 9.8m/s², X,Y,Z directions for 10 cycles (100 minutes)

Concussion Resistance

IEC/EN61131-2 compliant, 147m/s² X,Y,Z directions for 3 times

Noise Immunity

Noise Voltage: 1,000Vp-p, Pulse Duration: 1µs, Rise Time: 1ns, (via noise simulator)

Electrostatic Discharge Immunity

Contact Discharge Method: 6kV (IEC/EN61000-4-2 Level 3)

Grounding

Functional grounding: Grounding resistance of 100Ω, 2mm² or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Structure

Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface of embedded panel)*7

Installation Configuration

Embedded panel

Cooling Method

Natural air circulation

Weight Approx.

3 kg [6.6 lb] or less (display unit only)

External Dimensions

W313 x H239 x D56 mm [W12.32 x H9.41 x D2.2 in.]

Panel Cut Dimensions

W301.5 x H227.5 mm [W11.87 x H8.96 in.], Panel thickness area: 1.6 to 10 mm [0.06 to 0.39 in.]*8
