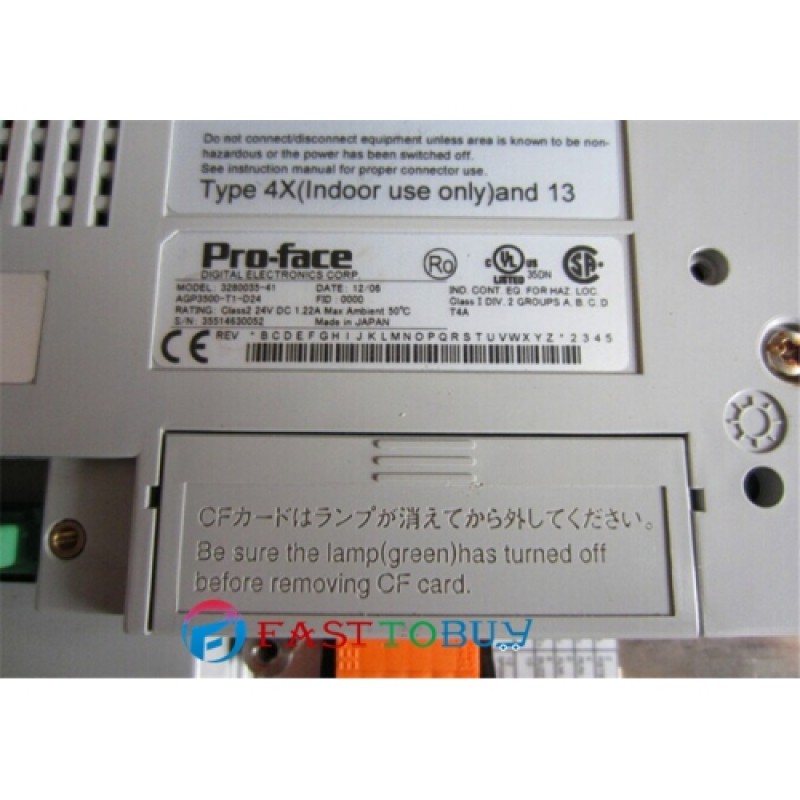

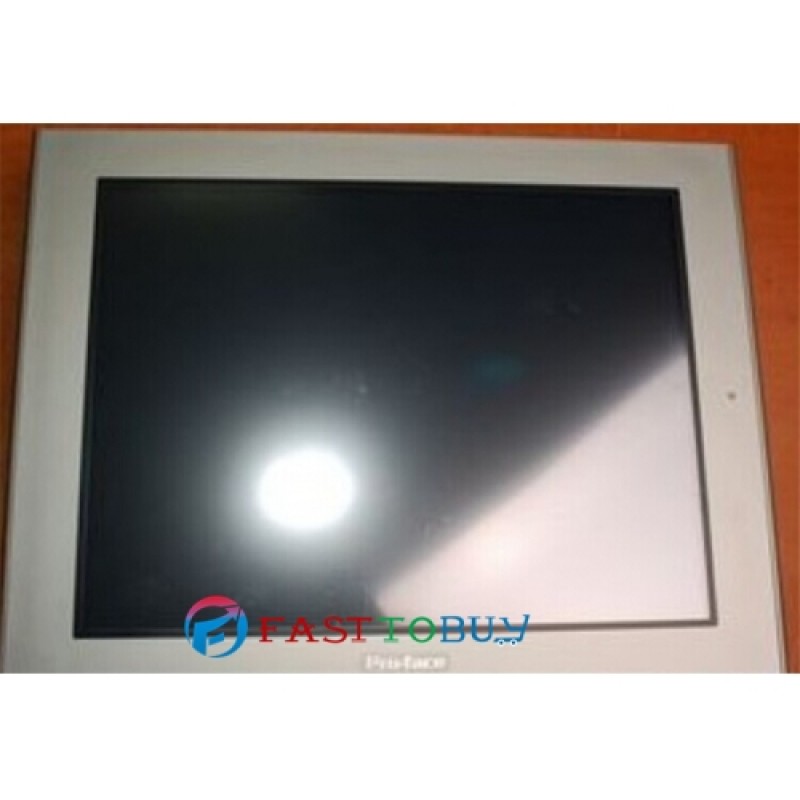

AGP3500-T1-D24 HMI 10.4" 640x480 DC24V with Ethernet CF card New

Model

AGP3500-T1-D24

Display Type

TFT Color LCD

Display Size

10.4"

Resolution

640 x 480 pixels (VGA)

Dot pitch

W0.33 x H0.33 mm [W0.01 x H0.01 in.]

Effective Display Area

W211.2 x H158.4 mm [W8.31 x H6.24 in.]

Display Colors

65,536 Colors (No blink)/16,384 Colors (Blink)

Backlight

CCFL (Replaceable)

Brightness Control

8 Levels (Adjusted with the touch panel)

Contrast Control

Not applicable

Backlight Service Life

50,000 hrs. or more (continuous operation at 25centigrade degreebefore backlight brightness decreases to 50% or backlight starts to blink)

Language Fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font Sizes

Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.

8 x 16 dots

80 char. x 30 rows

16 x 16 dots

40 char. x 30 rows

32 x 32 dots

20 char. x 15 rows

8 x 8 dots

80 char. x 60 rows

Program Area

FLASH EPROM 132 KB

Number of Step

Equivalent to 15,000 steps*1

Variable Area

SRAM 64 KB (uses lithium battery)*2

Application Memory

FLASH EPROM 16 MB*3

Data Backup

SRAM 320KB (uses lithium battery)*4

Clock Accuracy

65 sec/month (deviation at room temperature and power is OFF)*5

Touch Panel Type

Resistive Film (analog)

Touch Panel Resolution

1,024 X 1,024

Touch Panel Service Life

1,000,000 times or more

Serial (COM1)

RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)

Serial (COM2)

RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (socket)

Ethernet (LAN)

IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1

Expansion Unit 1

Communication Expansion Unit x 1

Expansion Unit 2

VM/DVI Input Expansion Unit x 1

USB (TYPE-A)

Conforms to USB1.1 (TYPE-A) x 2, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less

Expansion Memory

Function Expansion Memory x 1 (Inside interface cover)

CF Card

Compact Flash CF Card Slot (TYPE-II) X 1

Sound Output

Speaker Output, 70 mW (Rated Load: 8 Ω, Frequency: 1 kHz), Connector: 2-piece terminal block (AUX) x 1

AUX Input/Output

Alarm Output, RUN Output, Buzzer Output, Rated Voltage: DC24V, Rated Current: 50mA, Remote Reset Input, Input Voltage: DC24V, Connector: 2-piece terminal block (AUX) X 1

Model

AGP3500-T1-D24

Rated Input Voltage

DC 24V

Input Voltage Limits

DC 19.2 to 28.8V

Allowable Voltage Drop

10 ms or less

Power Consumption

50 W or less

In-Rush Current

30 A or less

Voltage Endurance

AC 1,000V, 20 mA for 1 minute (between charging and FG terminals)

Insulation Resistance

DC500V 10Mohm (min.), (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degreemax. - no condensation.)

Storage Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degreemax. - no condensation.)

Dust

0.1 mg/m³ or less (non-conductive levels)

Pollution Degree

For use in Pollution Degree 2 environment

Atmosphere

Free of corrosive gases

Air Pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)

Vibration Resistance

IEC/EN61131-2 compliant, 5 to 9Hz Single amplitude 3.5mm [0.14in.], 9 to 150Hz Fixed acceleration: 9.8m/s², X,Y,Z directions for 10 cycles (100 minutes)

Concussion Resistance

IEC/EN61131-2 compliant, 147m/s² X,Y,Z directions for 3 times

Noise Immunity

Noise Voltage: 1,000Vp-p, Pulse Duration: 1µs, Rise Time: 1ns, (via noise simulator)

Electrostatic Discharge Immunity

Contact Discharge Method: 6kV (IEC/EN61000-4-2 Level 3)

Grounding

Functional grounding: Grounding resistance of 100Ω, 2mm² or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Structure

Equivalent to IP65f NEMA #250 TYPE 4X/13 (Front surface of embedded panel)*6

Installation Configuration

Embedded panel

Cooling Method

Natural air circulation

Weight Approx.

2.5 kg [5.5 lb] or less (display unit only)

External Dimensions

W270.5 x H212.5 x D57 mm [W10.65 x H8.37 x D2.24 in.]

Panel Cut Dimensions

W259 x H201 mm [W10.2 x H7.91 in.], Panel thickness area: 1.6 to 10 mm [0.06 to 0.39 in.]*7
