- Stock: In Stock
- Model: LEVI102A-TTS
- Weight: 1.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

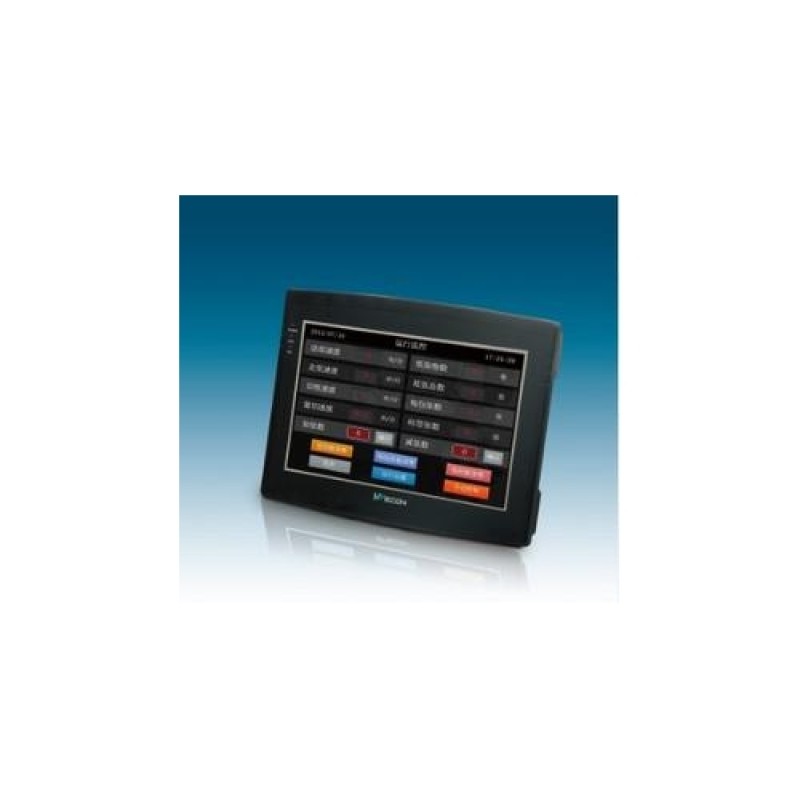

LEVI102A-TTS WECON for Touch Screen HMI 800×480 10.2 inch Ethernet 3 COM original brand new
Operating system: flush bonding
Chinese Configuration Software for all series WECON series products: LeviStudio_2013.11.08
Downloading Address?http://www.we-con.com.cn/download.asp?classid=467
CE Certification
HMI software installment?
xp and window7 32 install directly?automatically install drivers? window 64 enforces to sign every time power on.
Detailed Specification?
Model | LEVI102A-TTS(Voice broadcast ) |
?Specification? | |
Display Size | 10.2” true color TFT?219.6W×131.76Hmm? |
Resolution | 800×480 pixels |
Display colors | 65536 |
Brightness | 300cd/m2 |
Backlight | LED |
Touch Screen | 4-wire precision resistance net?External Hardness 4H? |
Life of LED | 50000 hours |
CPU | 32-bit 400MHz RISC |
Storage | 128M FLASH + 64M DDRAM |
Power-off Storage +RTC | 256KB+RTC |
Printing port | Serial printing/USB printer |
Ethernet | Optional |
Program downloading | 1 USB SLAVE connector |
USB Host | 1 USB Host |
Communicating port | COM1:RS232/RS422/RS485?COM2:RS232C/RS485(COM3 RS485) |
?Electrical Specification? | |
Voltage Rating | <5W |
Power Rating | DC24V |
Input Range | 12?28VDC |
Allowing Power Shutdown | <5ms |
Insulating Resistance | >20MΩ 500VDC |
Pressure-proof Test | 500V AC less than one minute |
?Structure Specification? | |
Crust color | Black |
Crust Material | ABS Plastic |
External Measurement | 272W×200H×47.5Dmm |
Installed Holecutting Size | 260W×179Hmm |
Net weight | 1.2kg |
Wet weight | 1.7kg |
?Environment Specification? | |
Operating temperature | -10?60? |
Operating Humidity | 10?90?RH?No condensation? |
Storage temperature | -20?70? |
Storage Humidity | 10?90?RH?No condensation? |
Quake-proof Degree | 10 ? 25 Hz (X?Y?Z dimension 2G/30 minutes) |
Cooling Way | Natural air dying |
?Certification? | |
Panel protection Level | IP65 |
CE | EN61000-6-2?2005? EN61000-6-4?2007 |
Compatibility | FCC Class A |
