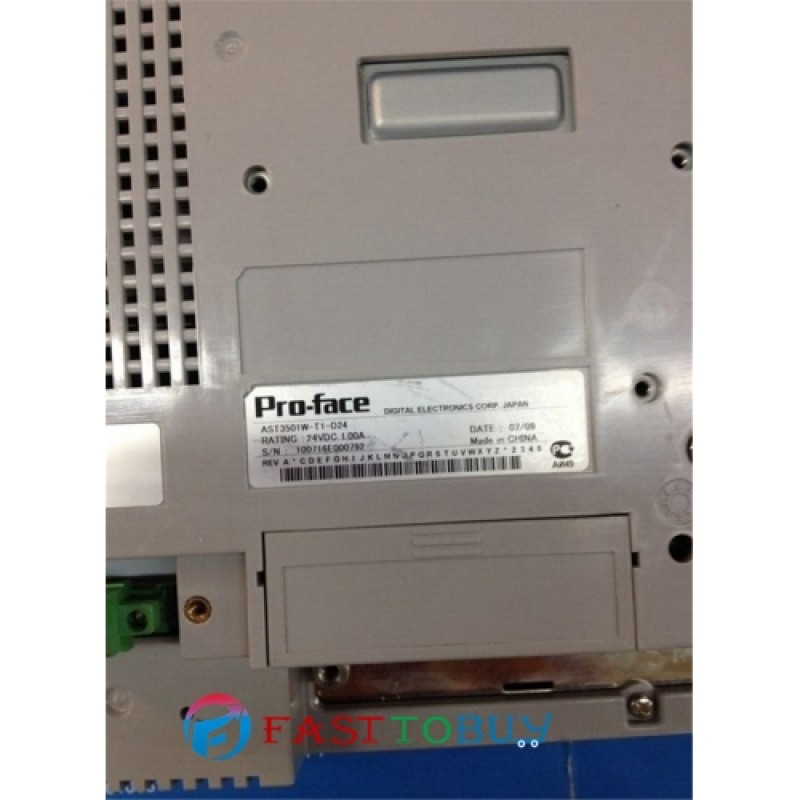

AST3501W-T1-D24 HMI 10.4" 640*480 DC24V New

AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4
AST3501W-T1-D24 HMI 10.4" 640*480 DC24V New
AST3501W-T1-D24 HMI 10.4" 640*480 DC24V NewAST3501W-T1-D24 SpecificationFunctional Speci? cationsAST... Read More
0 reviews • Write a review
$1,625.00
Ex Tax: $1,625.00
  • Stock: In Stock
  • Model: AST3501W-T1-D24
  • Weight: 3.50kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
10 inch Touch Pannel HMI 800*480 USB Host MT6100IV2 Weinview with Programing Cable&Software
Quickview
10 inch Touch Pannel HMI 800*480 USB Host MT6100IV2 Weinview with Programing Cable&Software
$531.00
Ex Tax:$531.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" HMI 800*480 MT4512T with Free programming Cable&Software New
$292.00
Ex Tax:$292.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" HMI 800*480 MT4512TE USB HOST Ethernet with Free programming Cable&Software New
$300.00
Ex Tax:$300.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" HMI 800*480 MT4522T USB HOST SD card with Free programming Cable&Software New
$537.00
Ex Tax:$537.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" HMI 800*480 MT4522TE USB HOST SD card Ethernet with Free programming Cable&Software New
$793.00
Ex Tax:$793.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" inch HMI TouchScreen 1024*768 2Com TGA63-MT with free Software & Programming Cable
$195.00
Ex Tax:$195.00
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" inch HMI TouchScreen 1024*768 USB Port 2Com TGA63-UT with free Software & Programming Cable
$216.67
Ex Tax:$216.67
Add to Cart Add to Wish List Compare this Product
10.1
Quickview
10.1" inch HMI TouchScreen 1024*768 USB Port Ethernet 2Com Suport S7-1200 TGA63-ET with free Software & Programming Cabl
$238.33
Ex Tax:$238.33
Add to Cart Add to Wish List Compare this Product
Tags: AST3501W-T1-D24

AST3501W-T1-D24 HMI 10.4" 640*480 DC24V New

AST3501W-T1-D24

Specification

Functional Speci? cations

AST3501W-T1-D24

AST3301W-S1-D24

AST3301W-B1-D24

Display Type

10.4" TFT Color

5.7" Pseudo-Color SNT

5.7"Blue white

Display Colors

256 Colors (No blink) / 64 Colors (Blink)

8 gray

Resolution

640 x480

320 x240

Brightness Control

8 Levels (Adjusted with the touch panel)

Contrast Control

--

8 Levels (Adjusted with the touch panel)

Language Fonts *1

Chinese

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts

Font Sizes

Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.

8 x 16 dots

80 char. X 60 rows

40 char. X 30 rows

16 x 16 dots

80 char. X 30 rows

40 char. X 15 rows

32 x 32 dots

40 char. X 30 rows

20 char. X 15 rows

8 x 8 dots

20 char. X 15 rows

10 char. X 7 rows

Application Memory

FLASH EPROM 3.4 MB

FLASH EPROM 2.4 MB

Data Backup

SRAM 128KB

SRAM 64KB

Touch Panel Type

Resistive Film (analog)

Touch Panel Resolution

1,024 X 1,024

                   Interface

Serial (COM1)

RS-232C, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)

Serial (COM2)

RS-422, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps*3 (MPI), Connector: D-Sub9 (plug)

USB

Conforms to USB1.1 (TYPE-A) x 1

General specifications:

General Speci? cations

AST3501W-T1-D24

AST3301W-S1-D24

AST3301W-B1-D24

Rated Input Voltage

DC24V

Input Voltage Limits

DC19.2V to 28.8V

Power Consumption

Less than 45W

Less than 18W

In-Rush Current

Less than 10ms

Insulation Resistance

DC500V 10Mohm (min.), (between charging and FG terminals)

Voltage Endurance

AC1,000V 20mA for 1 minute, (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Storage Humidity

10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)

Weight

Less than 2.5kg

Less than 1.0kg
