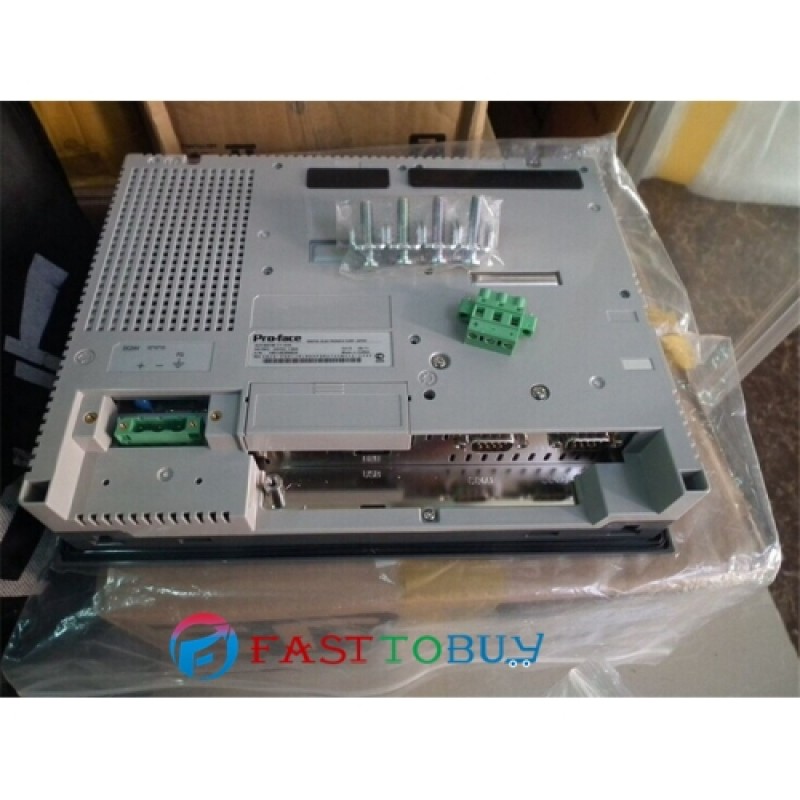

AST3501-T1-D24 HMI 10.4" 640*480 DC24V TFT Color LCD with CF card New

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4

AST3501-T1-D24 HMI 10.4" 640*480 DC24V TFT Color LCD with CF card New

AST3501-T1-D24 HMI 10.4" 640*480 DC24V TFT Color LCD with CF card NewAST3501-T1-D24 specifications:... Read More

0 reviews • Write a review

$1,777.00

Ex Tax: $1,777.00

Stock: In Stock
Model: AST3501-T1-D24
Weight: 3.50kg

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

Payments

We accept many payments,include Paypal,Bank Transfer etc

From Same Category

10 inch Touch Pannel HMI 800*480 USB Host MT6100IV2 Weinview with Programing Cable&Software

Quickview

10 inch Touch Pannel HMI 800*480 USB Host MT6100IV2 Weinview with Programing Cable&Software

$531.00

Ex Tax:$531.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" HMI 800*480 MT4512T with Free programming Cable&Software New

$292.00

Ex Tax:$292.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" HMI 800*480 MT4512TE USB HOST Ethernet with Free programming Cable&Software New

$300.00

Ex Tax:$300.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" HMI 800*480 MT4522T USB HOST SD card with Free programming Cable&Software New

$537.00

Ex Tax:$537.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" HMI 800*480 MT4522TE USB HOST SD card Ethernet with Free programming Cable&Software New

$793.00

Ex Tax:$793.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" inch HMI TouchScreen 1024*768 2Com TGA63-MT with free Software & Programming Cable

$195.00

Ex Tax:$195.00

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" inch HMI TouchScreen 1024*768 USB Port 2Com TGA63-UT with free Software & Programming Cable

$216.67

Ex Tax:$216.67

Add to Cart Add to Wish List Compare this Product

Quickview

10.1" inch HMI TouchScreen 1024*768 USB Port Ethernet 2Com Suport S7-1200 TGA63-ET with free Software & Programming Cabl

$238.33

Ex Tax:$238.33

Add to Cart Add to Wish List Compare this Product

Tags: AST3501-T1-D24

Description
Reviews

AST3501-T1-D24 HMI 10.4" 640*480 DC24V TFT Color LCD with CF card New

AST3501-T1-D24

specifications:

Model	AST3501-T1-D24
Display Type	TFT Color LCD
Display Size	10.4"
Display colors	256 colors (no blink) / 64 colors (3-speed blink)
Resolution	640×480 dots
Brightness Control	8 gradations (adjustable via touch panel)
Contrast Adjustment	---
Language Fonts	Japanese: 6962 ( JIS standards 1 & 2 including 607 non-kanji characters ) ANK: 158 ( Korean fonts, Simplified Chinese and Taiwanese traditional Chinese fonts are downloadable)
Character Sizes	Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 dot fonts, Stroke font: 6 to 127 dot fonts
Font Sizes	Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times
8 x 8 dots	80 char. × 60 rows
8 x 16 dots	80 char. × 30 rows
16 x 16 dots	40 char. × 30 rows
32 x 32 dots	20 char. × 15 rows
Application	6 MB FLASH EPROM
Data Backup	320 KB SRAM
Type	Resistive film ( analog)
Resolution	1024×1024
Serial Interface ( COM1)	Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Parity: None, Odd or Even, Stop Bit: 1 or 2 Bits, Data Transmission Speed: 2400 bps to 115.2 kbps, Connector: D-Sub 9-pin plug
Serial Interface ( COM2 )	Asynchronous Transmission: RS-422/485 (ST-3211A only as for RS-485), Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: none, Odd or Even, Data Transmission Speed: 2400 b ps to 115.2kbps, ( MPI: 187.5kbps) , Connector: D-Sub 9pin plug
USB Interface	USB Interface USB1.1, USB TYPE A connector x 1
CF Card Interface	CF card slot ( TYPE-2 ) x 1

General specifications:

Model	AST3501-T1-D24
Rated Input Voltage	DC 24V
Input Voltage Limits	DC 19.2 to 28.8V
Power Consumption	45W or less
Insulation Resistance	DC500V 10Mohm (min.), (between charging and FG terminals)
Surrounding Air Temperature	0 to 50 centigrade degree
Storage Temperature	-20 to 60 centigrade degree
Ambient Humidity	10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)
Storage Humidity	10 to 90% RH (Wet bulb temperature: 39centigrade degree max. - no condensation.)
Noise Immunity ( Via noise simulator )	Noise Voltage: 1000 Vp-p Pulse Duration: 1 μs Rise Time: 1 ns
Grounding	Functional Grounding: D-type grounding (SG-FG common)
Protection Ratings	Equivalent to IP65f NEMA #250 TYPE 4X/13 *5 ( For front panel of installed unit )
Weight	2.5 kg (5.5 lb.) or less
