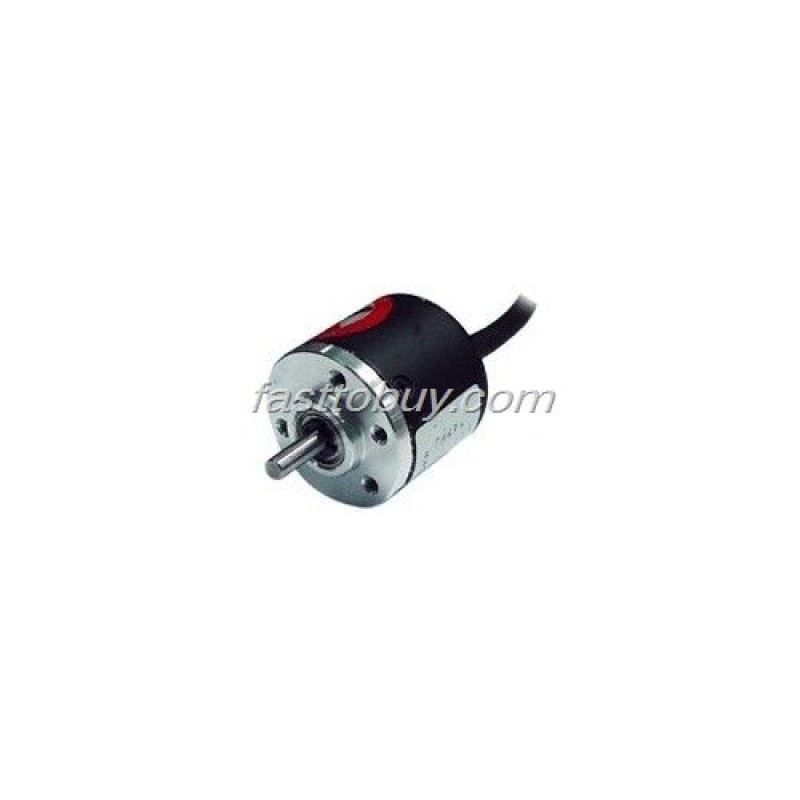

E30S4-1024-6-L-5 AUTONICS Encoder NEW

E30S4-1024-6-L-5 AUTONICS Encoder NEW
E30S4-1024-6-L-5 AUTONICS Encoder NEW
E30S4-1024-6-L-5 AUTONICS Encoder NEW
E30S4-1024-6-L-5 AUTONICS Encoder NEW
E30S4-1024-6-L-5 AUTONICS Encoder NEW
E30S4-1024-6-L-5 AUTONICS Encoder NEWAUTONICS Encoder E30S4-1024-6-L-5 Features?Mini shaft type Rota... Read More
0 reviews • Write a review
$89.00
Ex Tax: $89.00
  • Stock: In Stock
  • Model: E30S4-1024-6-L-5
  • Weight: 0.08kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
100P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
Quickview
100P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
100P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
Quickview
100P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
200P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
Quickview
200P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
200P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
Quickview
200P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
300P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
Quickview
300P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
300P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
Quickview
300P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
$10.50
Ex Tax:$10.50
Add to Cart Add to Wish List Compare this Product
360P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
Quickview
360P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm NPN output
$9.30
Ex Tax:$9.30
Add to Cart Add to Wish List Compare this Product
360P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
Quickview
360P/R DC5V~24V Incremental Photoelectric Rotary Encoder A稡 two-phase Shaft 6mm Voltage Output
$9.30
Ex Tax:$9.30
Add to Cart Add to Wish List Compare this Product
Tags: E30S4-1024-6-L-5
E30S4-1024-6-L-5 AUTONICS Encoder NEW

AUTONICS Encoder E30S4-1024-6-L-5



Features?

Mini shaft type Rotary encoder (D : 30mm)Convenient mountingEasy installation at narow spaceSmall inertia momentPower source : 5VDC, 12-24VDC ±5%Various output types : Totem pole/ NPN open collector/ Voltage/ Line driver

Specification?

Item

Diameter? 30mm shaft type Incremental Rotary encoder

Resolution(P/R)

100?200?360?500?1000?1024? 3000 (Not indicated type is available to customize)

Electrical specification

Phase difference of output

Output between A and B phase : T/4 ?T/8 (T=1cycle of A phase)

Control output

Totem pole output

•Low Load current : Max.30mA?Residual voltage : Max.0.4VDC

•High Load current : Max.10mA?Output voltage : Min.(Power supply-1.5)VDC

NPN open collector output

Load current : Max.30mA?Residual voltage : Max.1VDC

Voltage output

Load current : Max.10mA?Residual voltage : Max.0.4VDC

Line driver output

Low  Load current : Max.20mA?Residual : Max.0.5V

High  Load current : Max.-20mA?Output voltage : Min.2.5V

Response time (Rise/ Fall)

Totem pole output

Max.1μs

•Measuring condition  Cable length:2m? I sink=Max.20mA

NPN open collector output

Max.1μs

Voltage output

Max.1μs(5VDC:Output resistance 820Ω)?Max.2μs(12-24VDC:Output resistance 4.7kΩ)

Line driver output

Max.0.5μs

Max. Response frequency

180kHz

Current consumption

Max.60mA(disconnection of the load)?Line driver output:Max.50mA(disconnection of the load)

Insulation resistance

Min.100MΩ(at 500VDC)

Dielectric strength

750VAC 50/60Hz for 1 minute(Between all terminals and case)

Connection

Cable outgoing type? 200 mm cable outgoing connector type

Mechanicalspecification

Starting torque

Max.20gf'cm(0.002N'm)4

Moment of inertia

Max.20g'cm2(2X10kg'm2)

Shaft loading

Radial : Max.2kgf?Thrust : Max.1kgf

Deviation of shaft position

Radial : Max.0.1mm?Thrust : Max.0.2mm

Max. allowable revolution

 (Note1) 5000rpm

Vibration

1.5mm amplitude at frequency of 10-55Hz in each of X?Y?Z directions for 2hours

Shock

Max.50G

Ambient temperature

-10—70?(at non-freezing status)?torage:-25—85?

Ambient humidity

35-85%RH?torage: 35-90%RH

Protection

IP50(IEC specification)

Cable

(Note2) 5P?(Line driver:8P)5mm?Length:2m?Shield cable(Basic)

Accessory

4mm coupling

Weight

Approx.80g

Approval

(Except Line driver output)
