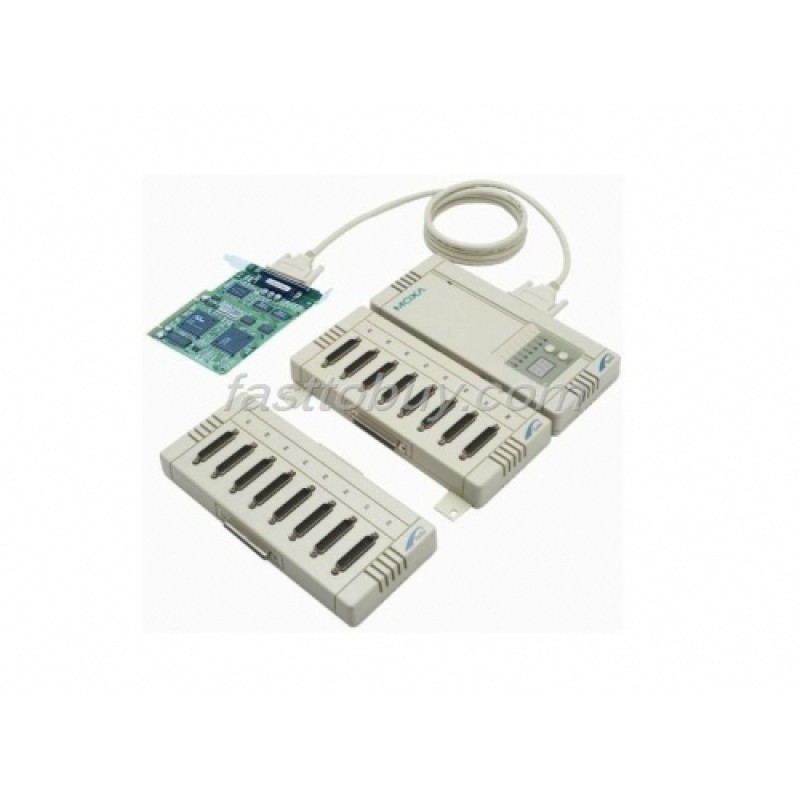

C32030T MOXA Universal PCI Multiple serial boards C320Turbo series with CPU module box

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

C32030T MOXA

The hardware communication controller: 16C550C or compatible chip × 8

Bus: C320Turbo/PCI: 32-bit general-purpose PCI

        C320Turbo: ISA (16-bit)

Connector: DB25-hole

Processor: TMS320BC52-40 RISC CPU

Memory: 512 KB

Serial Interface Serial Standards: RS-232 (desktop models available RS-422)

Mouth: 32 / block board

Plate number: maximum 4/PC

Performance rate: 50bps ~ 460.8Kbps

Serial communication parameters data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Parity bit: None, even, odd, space, mark the IRQ

C32010T/PCI: assigned by the BIOS

C32010T: 2 (9), 3,4,5,7,10 (default), 11, 12, 15

The signal RS-232: TxD, RxD, RTS, CTS, DTR, the DSR, DCD, GND

RS-422: TxD + / -, RxD + / -, RTS + / -, CTS + / -, GND

Driver support operating systems: Windows (2000, XP/2003/Vista x86/x64, 9X/ME/NT), DOS, Linux 2.4/2.6, SCO Open Server 5/6, UnixWare 7, QNX 4

Mechanical Dimensions

C32010T/PCI: 90 x 120 mm (3.54 x 4.72 in)

C32010T: 107 x 158 mm (4.21 x 6.22 in)

Operating Environment Operating Temperature: 0 ~ 55 ° C

Relative humidity: 5 ~ 95% RH

Storage Temperature: -20 ~ 85 ° C

Ann Approvals EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A

Power requirements Power requirements:

C32010T/PCI: 500 mA max. (+5 V)

C32010T: 840 mA max. (+5 V)
