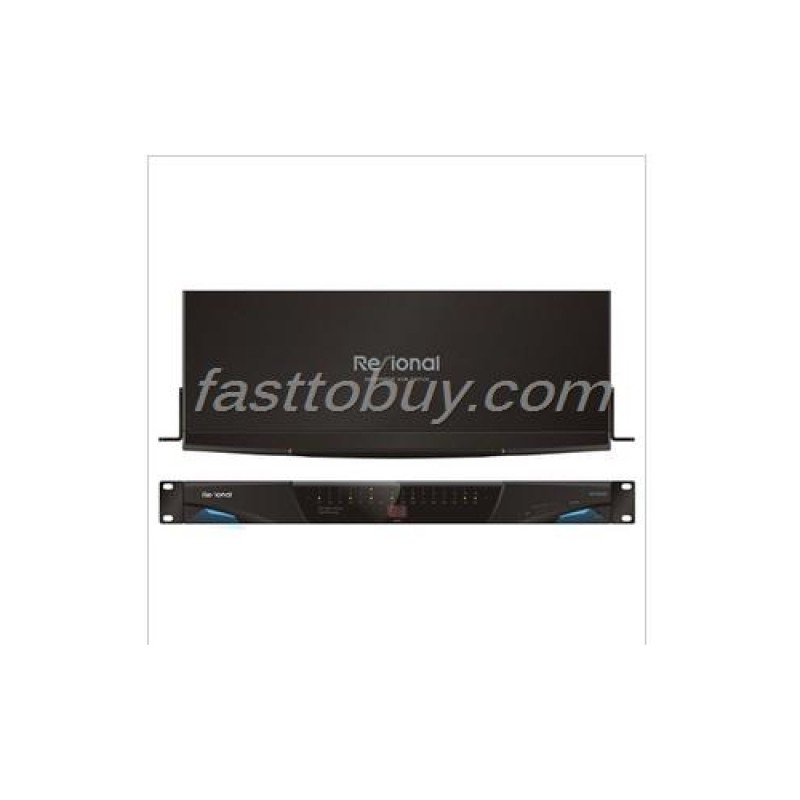

AE2608I RESIONA IP Rack Mount KVM Switch Enterprise Series 8-port

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Product Features:

* 8/16/32 port KVM switch

* Support a local control terminal with an IP control module

* Local control module to support an additional control module (PS / 2, USB local control module, CAT5 remote control module)

* Support Microsoft Windows, Netware Unix and Linux

* Through the USB interface supports iMAC, Power MAC and Sun Micro Systems

* Without having to install software: simply select the computer through the on-screen menu, button or hotkey

* Offers a variety of hot key combination (Scroll-Lock / Caps-Lock / Num-Lock / Alt / Ctrl / Win), to switch the computer port and other control functions, so Hotkey function can be used in a variety of types of keyboard prevent hotkey repeat

* Support are two levels of password security protection

* ACL security features (allows control list), you can store up to 8 independent control list

* Hotplugged: do not need to shut down the KVM switch or computer, you can add or remove connected computers

* Support display Plug and Play

* When switching computer keyboard state Reply

* Supports cascading of up to 8 layers

IP module

* In any part of the world at the management server

* KVM (keyboard, video, and mouse) access over IP

* To control any operating system, BIOS mode, the boot process, or blue screen

* Server without having to install any software

* Transfer data authentication management via a 256 bit SSL encryption

* High-performance mouse tracking and synchronization

* Automatically adjusts the transmission data rate

* Remote large number of access control

* Based java enabled browser control

* Through a web interface firmware upgrade

* Port can be connected to the control terminal of the analog KVM switches

Packing:

1 x KVM switches (including IP module)

1 x CD (software, manual)

1 x AC-DC adapter

1 x rack accessories

1 x DC2.5 male to DB9 female wire

1 x warranty card

1 x certificate

1 x desiccant

Specifications:

RJ-45 port connector
Port number 8/16/32
Control port type USB
Longest distance of 130 feet (40 meters)
(KVM switch - the host)
Image resolution (local control end) 1920X1440
Upgrade port DC2.5F
Cascade DB15 connector (female)

 Support cascaded to eight levels
Computer to select on-screen menus, hotkeys, buttons
The hotkey to provide a variety of hotkeys (Scroll-Lock/Caps-Lock/Num-Lock/AIt/Ctel/Win
Computer port lights each port two lights; ON the LINE (yellow), SATAION (red)
7-segment display lights display cascade layer
Security allows control list security features, can be stored for eight independent control of computer users
Multi-lingual on-screen menu languages

(English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese
Automatic scanning intervals of 5 to 99 seconds
Keyboard Wedge PS / 2 or USB
The mouse emulation PS / 2 or USB
Cascade largest computer connect up to 256 computers (32 models X8 layer)
Housing Material Metal
DC Power Supply 12V, 1A

Operating temperature 0 to 50 ° C
Storage temperature -20 ~ 60 ?
Humidity 0 to 80%, non-condensing
Bodies of 19-inch rack-mountable, 1U
Dimensions (mm) 444.5 x 190 x 44
