ACS806 leadshine digital AC servo drive 32-bit DSP 18-80DCV 6A original new

ACS806 leadshine digital AC servo drive 32-bit DSP 18-80DCV 6A original new

Description

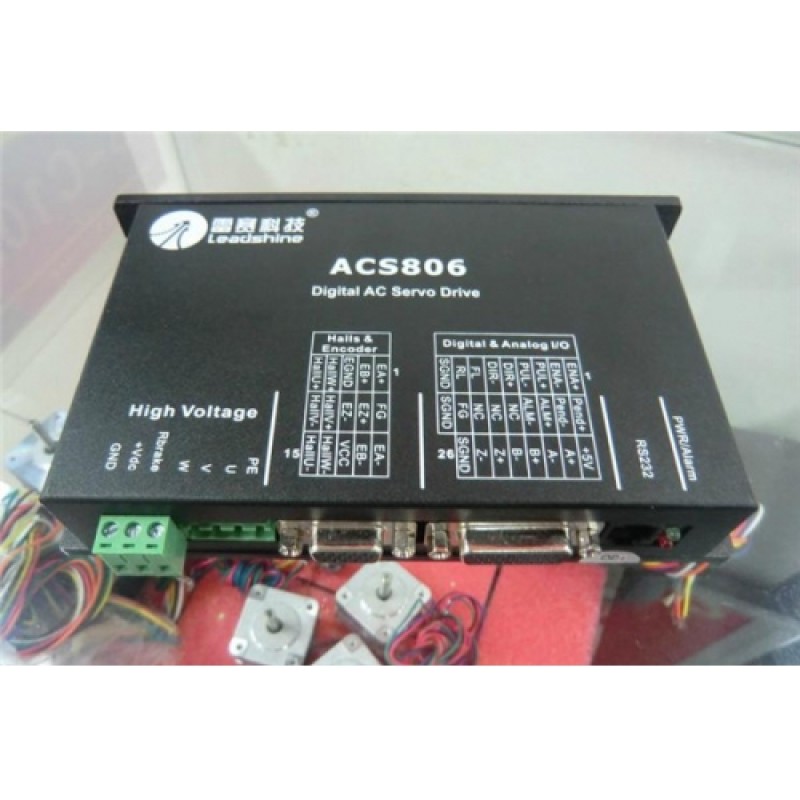

Leadshine's fully digital AC servo drive ACS806 is developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS806 without changing control systems. The ACS806 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements.

Features

Advance DSP current control technology

Step & direction, or CW/CCW control

High precision; smooth and quiet motor movement

Input voltage: 18 - 80 VDC

Continuous current: 6 A

Peak current: 18A

Capable of driving 20 - 400 W brushless servo motors

Electronic gear rate from 1/255 to 255

Built-in motion profile for testing with trapezoidal velocity profile

Opto-isolated

Encoder output with signals A, B, and Z (indexing)

Limit switch input

Fault, and in position (at preset target position) outputs

Small size, surface-mount technology

Electrical Specifications (Tj = 25oC/77oF)

Applications

Suitable for large and medium automation machines and equipments, such as inkjet printers, engraving machines, electronic manufacturing equipments, special NC machines, pick and place devices, packing devices, and so on. Particularly adapt to the applications require high speed, high precision, and low motor noise.

Mechanical Specifications
