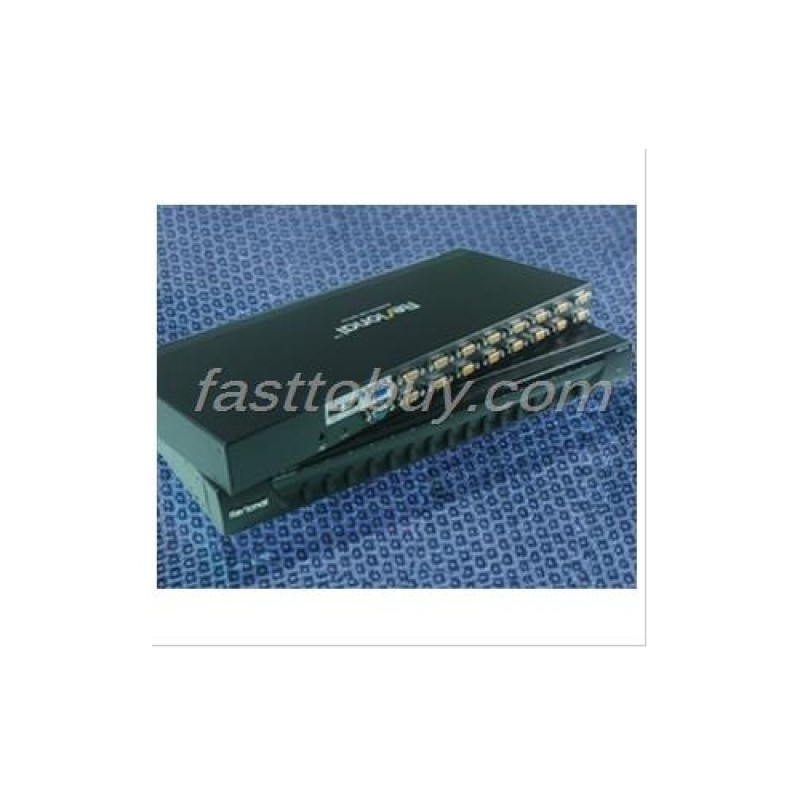

AB2516S RESIONA KVM Switch Business Series 16-port 2-user

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Product Features:

* 8/16 mixed access KVM switch

* Support a local control terminal coupled with an additional control module (PS / 2 local control module, a USB local control module, CAT5 remote control module, IP Remote Control Module)

* Support Microsoft Windows, Netware Unix and Linux

* Through the USB interface supports iMAC, Power MAC and Sun Micro Systems

* Without having to install software: simply select the computer through the on-screen menu, button or hotkey

* Offers a variety of hot key combination (Scroll-Lock / Caps-Lock / Num-Lock / Alt / Ctrl / Win), to switch the computer port and other control functions, so Hotkey function can be used in a variety of types of keyboard prevent hotkey repeat

* Support are two levels of password security protection

* ACL security features (allows control list), you can store up to 8 independent control list

* Hotplugged: You do not need to shut down the KVM switch or computer, you can add or remove the connected computer

* Support display Plug and Play

* When switching computer keyboard state Reply

* Supports cascading of up to 8 layers

Packing:

* 1 x KVM Switch

* 1 x CD CD-ROM User's Manual

* 1 x AC-DC adapter

* 1 x rack accessories

* 1 x DC2.5 revolution DB9 female wire

* 1 x warranty card

* 1 x certificate

* 1 x desiccant

Specifications:

Port connected VGA connector mixed
8/16 of the number of ports
Control port type USB
Control port of a local control terminal
An additional module: PS / 2 local console, USB local control terminal
CAT5 remote control terminal or IP remote control terminal
Longest distance of 16 feet (5 meters)
(KVM switch - the host)

Image resolution (local control end) 1920X1440
Image resolution (remote control terminal) 1280X1024: 300 m CAT5 remote control
1600X1200: IP remote control
Upgrade port DC2.5F
Cascade Connector DB15 (female)
Support cascaded to eight levels
Computer to select on-screen menus, hotkeys, buttons
The hotkey to provide a variety of hotkeys (Scroll-Lock/Caps-Lock/Num-Lock/AIt/Ctel/Win
Computer port lights each port two lights; ON the LINE (yellow), SATAION (red)
Security allows control list security features, can be stored for eight independent control of computer users
Multi-lingual on-screen menu languages ??(English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese)
Automatic scanning intervals of 5 to 99 seconds
Keyboard Wedge USB
Mouse Emulation USB
The maximum number of computers connected to up to 128 computers (16 models X8 layer)
Shell material Hulled
DC Power Supply 12V, 1A
Operating temperature 0 to 50 ° C
Storage temperature -20 ~ 60 ?
Humidity 0 to 80%, non-condensing
Bodies of 19-inch rack-mountable, 1U
Dimensions (mm) 444.5 x 190 x 44
