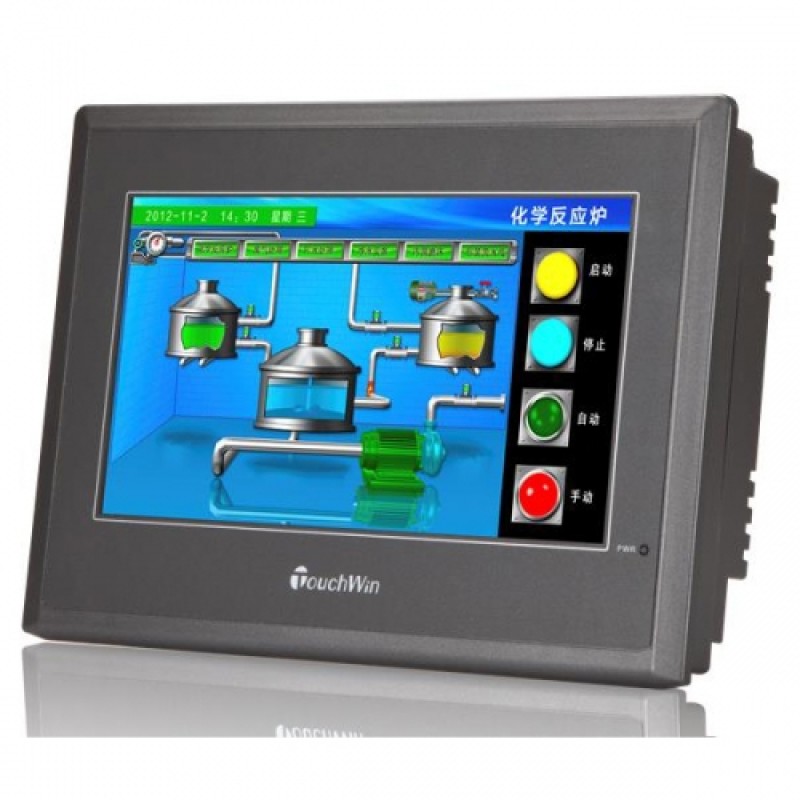

7 Inch 800x480 Ethernet Adjustable Brightness HMI XINJE TG765-ET New with USB program download Cable

System?XINJE Unique System

Software?

Touch screen dedicated picture editing software: Twin V2.D.2k (suitable for TH/TG/TE touch screen and XMH all-in-one machine)

Chinese version: http://www.xinje.com/Ch/DownView.asp?ID=207&SortID=17

English version: http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=19&page=2

Touch screen USB drivers and guide(suitable for TH/TG/TE touch screen and XMH all-in-one)(10-07-2013)

Chinese version: http://www.xinje.com/Ch/DownView.asp?ID=204&SortID=17

USB touch screen and USB drivers and guide win7-64 bits:

English version:http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=22&page=1

USB touch screen drivers and guide win7-32  XP

English version: http://www.xinje.co.kr/bbs/bbs/board.php?bo_table=bbs03_01&wr_id=21&page=1

CE Certification  SGS Certification

HMI port can communicate with most of the PLC ?in especial

Mitsubishi FX and  Q series    Siemens S7-200    S7-300   S7-400

Omron  SYSMAC       KOYO S series     Delta DVP series  LG  Panasonic    Schneider FATEK VIGOR    FUJI        Keyence        Emerson EC20     OEMax  NX7  Supporting devices of  Modbus  RTU?ASCII agreements    ABB  SHIMADEN etc PLC

Product description

16 million true color—with perfect image quality, which is on a par with liquid crystal display.

Downloading, starting and operating triune ultraspeed response.

Supporting C language scripting functionality, operating, free pact protocol agreement and painting. Advancing programming degrees.

Supporting BMP/JPG picture format
Rich solid 3D gallery making vivid scene
Flexible choices of parts, users-defined custom motion track design
Function of data acquisition and preservation, supporting multiple data management , such as time trend charts, XY trend chart etc
Storage and two-way delivery of formula data, which can raise work efficiency.


Product Features
1. ARM9 CPU?400MHZdominant frequency?128M of memory, 128M storage capacity

2. 7.0 inches?16 million colors, TFT LCD, LED backlight,800*480 resolution
3. Two COM ports?independent communications?supporting 232?485?422 etc communicating ways, multi screens are available in using one HMI
4. Standard clock
5.With two USB ports?realizing date fast transfer and storage
6. With USB-A interfaces front and behind?as data back-up
7.Supporting multiple Ethernet communicating( supporting MODBUS TCP devices and Siemens S7-1200PLC )

Demonstration of the type
TG765-MT?USB-B port
TG765-UT?USB-B port?USB-A port

TG765-ET: USB-B port?USB-A port , Ethernet port


Product Specifications

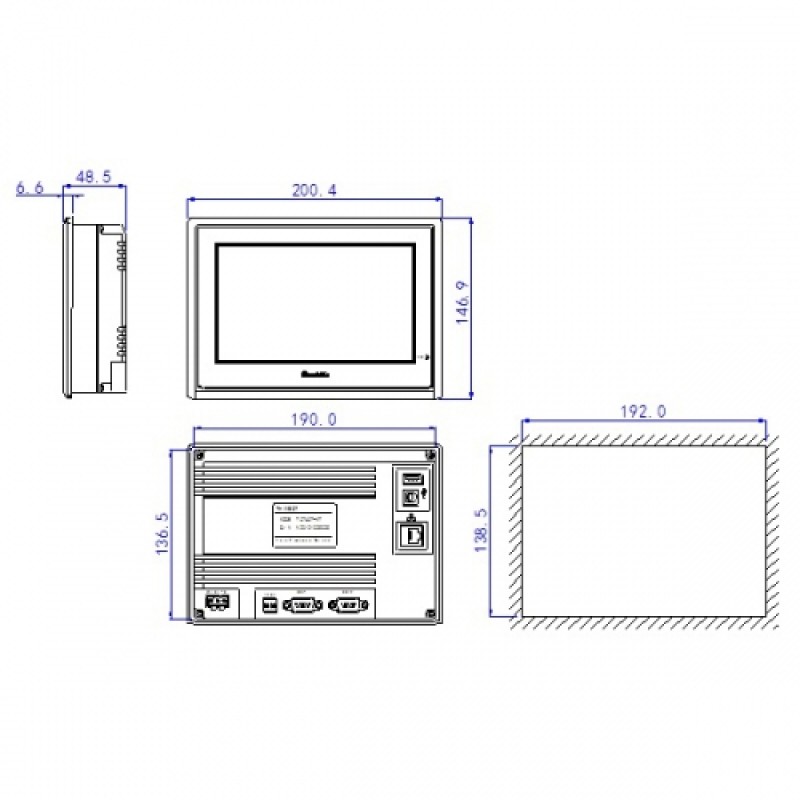

Size(mm)
Recommend 0.55mm more the size of Panel Cut Out.
