Why buy from us?
We offer competitive prices and quality services!
Ask a Question About This Product
- Stock: In Stock
- Model: FVR0.75S1S-4C
- Weight: 2.30kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

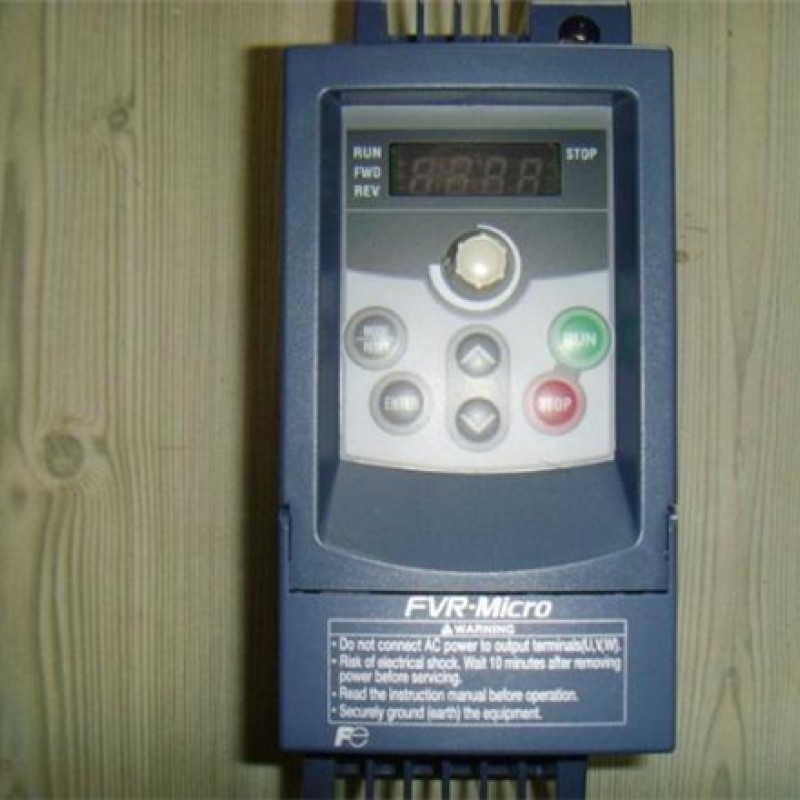

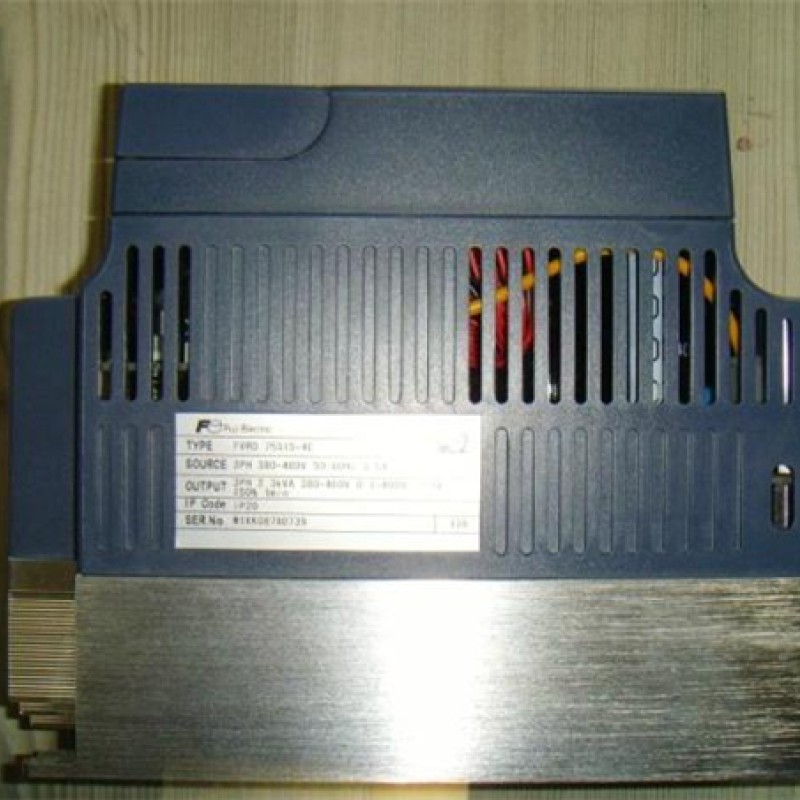

400V Three-phase 2.5A 0.75KW FVR0.75S1S-4C FUJI FVR-Micro Inverter
Feature
Simple! Small!! Smart!!!
An economic inverter that demonstrates great effectiveness with a small initial cost.
Simple, clear-cut design
Once installed, enjoy easier operation
Compact & Space-saving
Standard Specifications
3 PHASE 400V SERIES
Power supply series | 3 phase 400V | |||||
Type(FVRxxxS1S-xx) | FVR0.4S1S-4E | FVR0.75S1S-4E | FVR1.5S1S-4E | FVR2.2S1S-4E | FVR3.7S1S-4E | |
Nominal applied motor[kw] | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | |
Output Ratings | Rated capacity | 1.2 | 2.3 | 3.2 | 4.2 | 6.3 |
Rated voltage | Depends on input power supply | |||||
Rated current | 1.5 | 2.5 | 4.2 | 5.5 | 8.2 | |
Overload capacity | 150% of rated current for 1min | |||||
Input ratings | Q’ty of phase, Voltage and Frequency | 3 phase 380 to 460V, 50/60Hz | ||||
Voltage/Allowable Frequency Fluctuation | Voltage: +10 to -10% Frequency: +5 to -5% | |||||
Rated current[A] | 1.9 | 3.5 | 6.0 | 7.2 | 9.0 | |
Required power supply capacity[kva] | 1.9 | 3.5 | 6.0 | 7.2 | 9.0 | |
Braking | DC Braking | Braking starting frequency: 0.1 to 60.0Hz, Breaking level: 40 to 100% rated current Braking time at Starting: 0.0 to 60.0s, Braking time at stopping: 0.0 to 60.0s | ||||
Enclosure (IEC 60529) | IP20 Close type | |||||
Mass[kg] | 1.3 | 1.3 | 1.3 | 1.6 | 1.7 | |
External Dimensions
