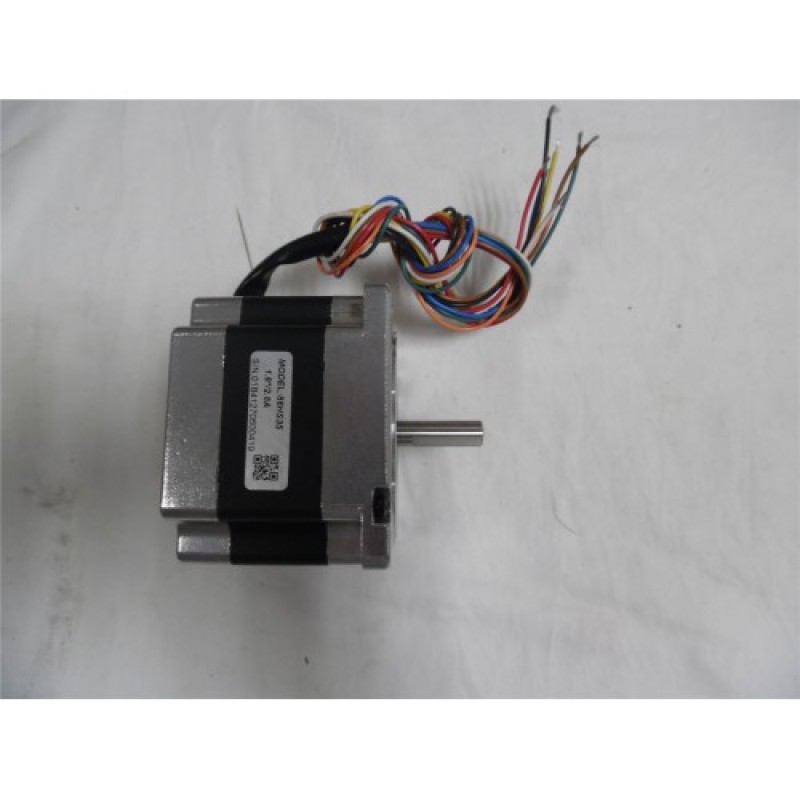

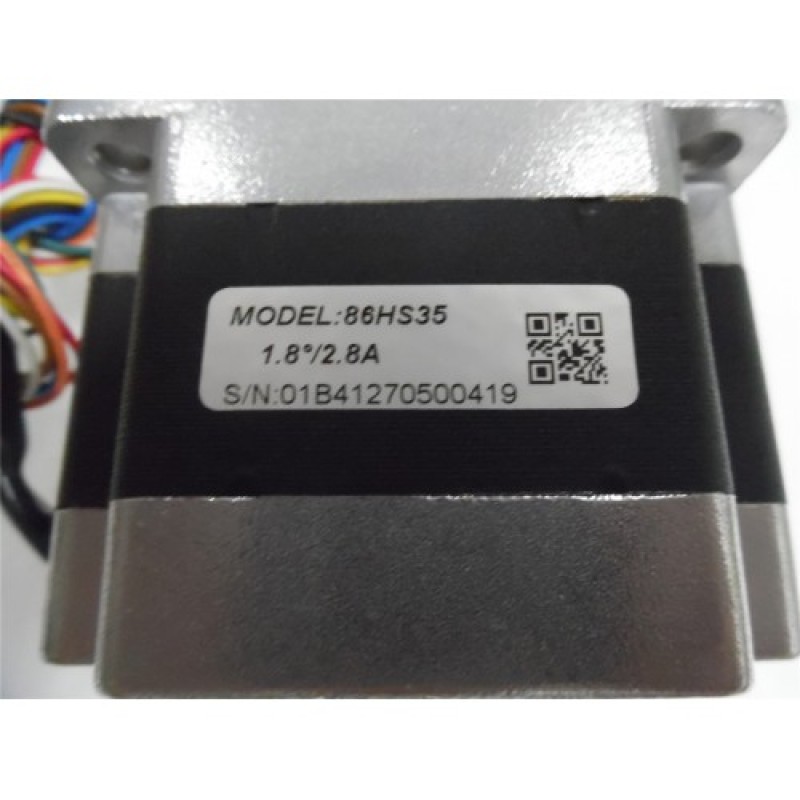

NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine

NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine
 NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser MachineTypical ApplicationsSuitab... Read More
$45.00
Ex Tax: $45.00
  • Stock: In Stock
  • Model: NEMA34
  • Weight: 2.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA34
 NEMA34 3.5NM 500oz-in 2ph 2.8A D=9.5mm Stepper Motor 86HS35 Laser Machine

Typical Applications

Suitable for applications require high reliability, high performance, low cost stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.

86HS Series - 2 Phase NEMA 34 Stepper Motors

2 phase 1.8° stepping angleNEMA 34Holding toque of 3.5 N*m to 12 N*m (496 - 1700 oz-in)High precisionSmooth movementLow motor heatingLow movement noise

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

electric parameter

Model

86HS35

86HS45

86HS45D

86HS45-14

86HS85

86HS85D

86HS120

Step Angle

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Holding torque

3.5NM

4.5

4.5

4.5

8.5

8.5

12

Rated current

2.8A

4.2

4

4.2

4.9

6

4.9

# of Leads

8

8

4

8

8

4

8

 Phase Inductance

3.9mh

3.5

3.5

3.5

5.2

5.2

8.7

Phase resistance

1.4Ohm

0.8

0.8

0.8

0.95

0.95

1.4

Rotor inertia

800 g.cm2

1400

1400

1400

2800

2800

4000

detent torque

0.8Kg.cm

1.3

1.3

1.3

2.5

2.5

3.8

Shaft diameter

9.5mm

12.7

12.7

14

12.7

12.7

15.875

Shaft length

32mm

32

32

32



32

32

Motor Length

65mm

80

80



118

118

157

Characteristic

Platform  shaft

Platform  shaft

shaft with keyway

shaft with keyway

shaft with keyway

shaft with keyway

shaft with keyway

Match Drives

DM432/DM556/M542



PLCAGE provides tens of models of stepper drives. From 2 phase to 3 phase, analog to DSP digital, DC input (18-80) to 110/120 AC or 220 / 220 AC input, PLCAGE can provide the right stepper drives to satisfy the needs of your stepper control systems. PLCAGE stepper products are well-known because of their wide choices, excellent performance, easy to use, high reliability, and low costs.

IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.
