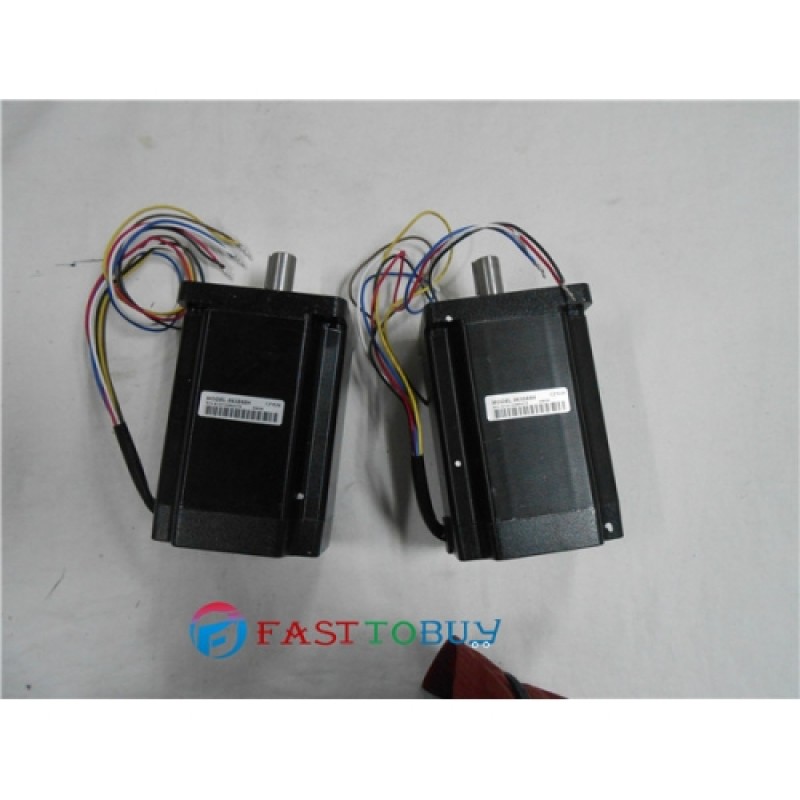

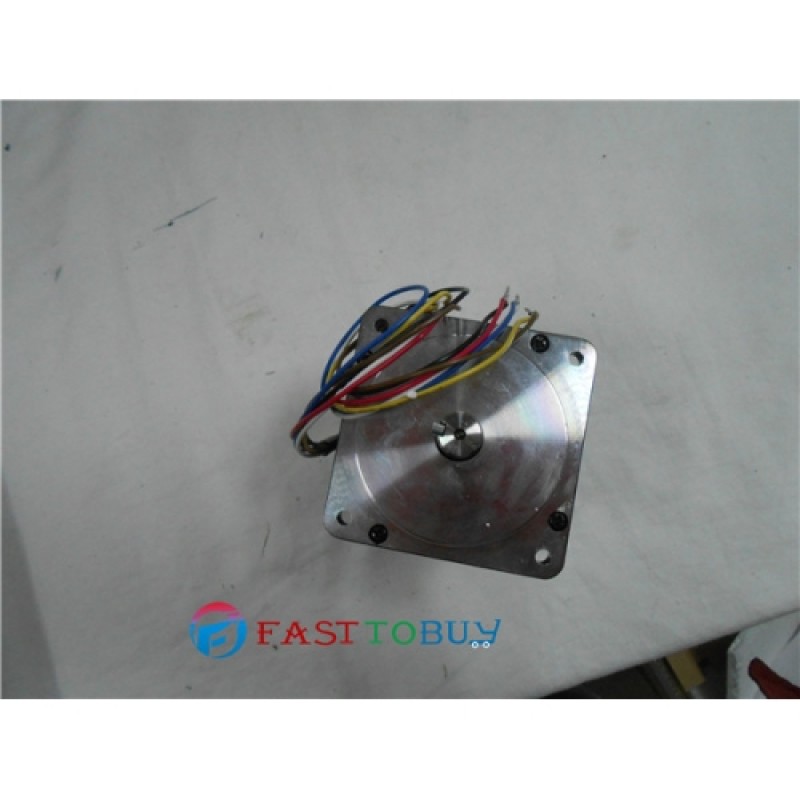

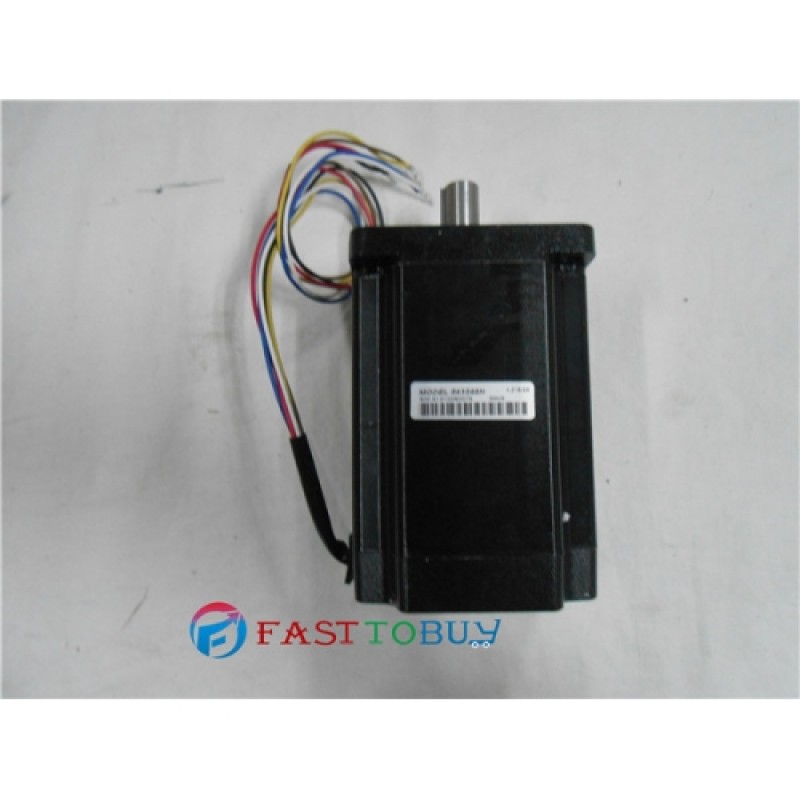

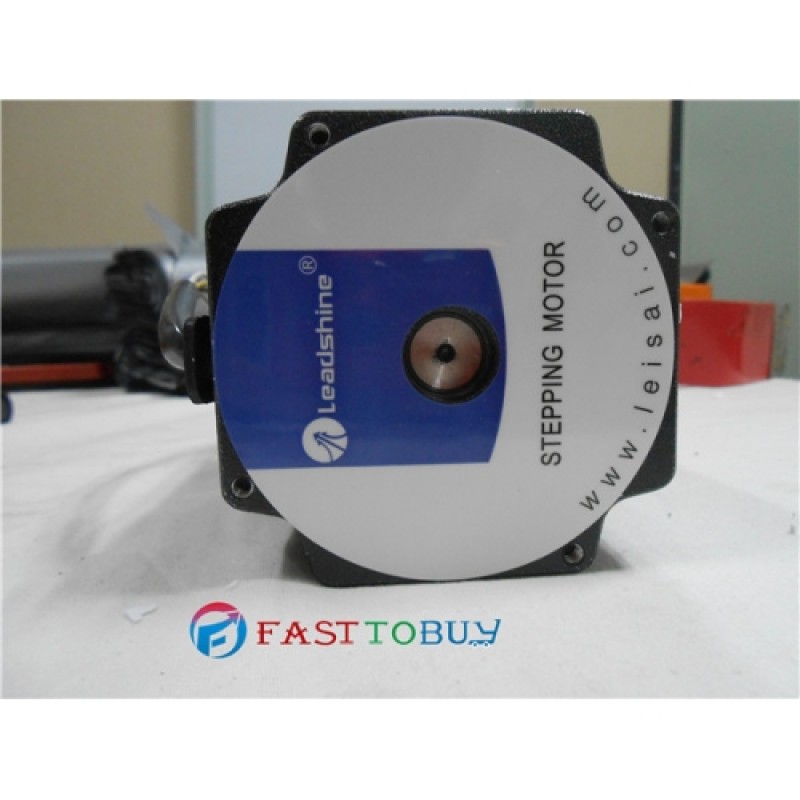

The 863S68H is a 3-phase NEMA 34 hybrid stepper motor from Leadshine with holding torque of 963.00 oz-in (6.8 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.
Features:
*3-phase hybrid step motor
*High torque design
*Standard NEMA 34 dimensions
*Delta wiring
*Optimized for microstepping
Applications:
Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
Specifications:
General
| Step Angle | 1.2° | |||||||||||
| Step Angle Accuracy | +5%(full step, no load) | |||||||||||
| Temperature Rise | 80°CMax | |||||||||||
| Ambient Temperature | -10°C -- +50°C | |||||||||||
| Insulation Resistance | 100MΩmin.500VDC | |||||||||||
| Dielectric Strength | 500VAC for one minute | |||||||||||
| Shaft Radial Play | 0.06 Max.(450g-load) | |||||||||||
| Shaft Axial Play | 0.08 max.(450g-load) | |||||||||||
Model No. | Step Angle | Holding Torque | Current /phase | Inductance /phase | Resistance /phase | # of leads | Rotor Inertia | Detent Torque | Motor Weight | Motor Length L |
| ||
(°) | N.m | A | mH | Ohm | g.cm2 | N.cm | Kg | mm |
| ||||
863S22 | 1.2 | 2.0 | 5.0 | 2.8 | 0.9 | 6 | 1200 | - | 2.1 | 73 |
| ||
863S42 | 1.2 | 4.0 | 5.0 | 4.5 | 1.35 | 6 | 2500 | - | 3.0 | 105 |
| ||
863S68H | 1.2 | 6.78 | 3.5 | 20 | 4.5 | 6 | 3300 | - | 3.8 | 127 |
| ||
Matching drives:
Model | Match drives |
863S22 | 3DM683/3DM883 |
863S42 | 3DM683/3DM883 |
863S68H | 3DM683/3DM883 |
Other hot items of this Leadshine 3-phase stepper motors for above applications:
573S05 | Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S05 Step Angle 1.2 Degrees 5.2A 0.45N.M New |
573S09 | Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S09 Step Angle 1.2 Degrees 3.5A 0.6N.M New |
573S15 | Leadshine 3-phase Stepper Motor 573S NEMA23 Series 573S15 Step Angle 1.2 Degrees 5.8A 1.3N.M New |
863S22 | Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S22 Step Angle 1.2 Degrees 5.0A 2.0N.M New |
863S42 | Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S42 Step Angle 1.2 Degrees 5.0A 4.0N.M New |
863S68H | Leadshine 3-phase Stepper Motor 863S NEMA34 Series 863S68H Step Angle 1.2 Degrees 3.5A 6.78N.M New |
Speed Torque Curve:
1 N.m = 141.6 oz-in; 1 N.m = 8.85 lb-in
