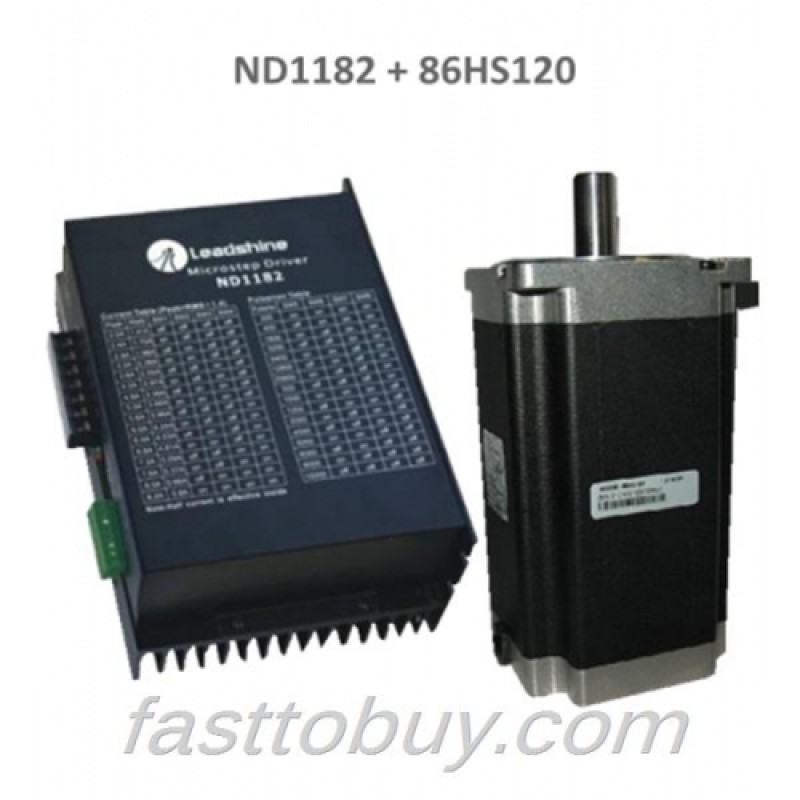

Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New

Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m NewPLCAGE: Leadshine 2-phase St... Read More
0 reviews • Write a review
$301.00
Ex Tax: $301.00
  • Stock: In Stock
  • Model: ND1182
  • Weight: 7.00kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
2ph 86mm NEMA34 12NM 6A 1000line Encoder closed loop Stepper Motor+Drive Kit Engraving Cutting machine
Quickview
2ph 86mm NEMA34 12NM 6A 1000line Encoder closed loop Stepper Motor+Drive Kit Engraving Cutting machine
$164.00
Ex Tax:$164.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+2M860
Quickview
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+2M860
$187.00
Ex Tax:$187.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+2M880N
Quickview
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+2M880N
$184.00
Ex Tax:$184.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+FM860
Quickview
2PH 86mm NEMA34 3A 3.4NM 486ozin 24-70VDC Stepper motor Drive kits 2S86Q-03865+FM860
$259.00
Ex Tax:$259.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 3.4NM 486ozin77-123VAC Stepper motor Drive kits 2S86Q-03865+2M1180N
Quickview
2PH 86mm NEMA34 3A 3.4NM 486ozin77-123VAC Stepper motor Drive kits 2S86Q-03865+2M1180N
$287.00
Ex Tax:$287.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+2M860
Quickview
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+2M860
$187.00
Ex Tax:$187.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+2M880N
Quickview
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+2M880N
$184.00
Ex Tax:$184.00
Add to Cart Add to Wish List Compare this Product
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+FM860
Quickview
2PH 86mm NEMA34 3A 4.5NM 643ozin 24-70VDC Stepper motor Drive kits 2S86Q-05180+FM860
$259.00
Ex Tax:$259.00
Add to Cart Add to Wish List Compare this Product
Tags: ND1182
Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New

PLCAGE: Leadshine 2-phase Stepper Set (Drive + Motor) ND1182 + 86HS120 12N.m New

ND1182

Features:

*High quality, cost-effective

*Low motor noise and heating

*Supply voltage up to 150VAC (210VDC)

*Output current up to 8.2A(5.86 ARMS)

*TTL compatible and Opto-isolated inputs

*Automatic idle-current reduction

*Input frequency up to 200KHz

*15 microstep resolutions selectable

*Suitable for 2-phase and 4-phase stepping motors

*DIP switch microstep & current settings

*Support PUL/DIR & CW/CCW modes

Specifications:

Parameters

ND1182

Min

Typical

Max

Unit

Output current

0.7(0.5A RMS)

-

8.2 (5.86 RMS)

A

Supply voltage

70(100)

110(155)

150(210)

VAC(VDC)

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

200

kHz

Isolation resistance

500





Mohm

Applications:

Suitable for a wide range of stepper motors, from NEMA size 34 to 51. It can be used in various applications such as laser cutters, laser markers, high precision X-Y tables, labeling machines, CNC router, etc. Its unique features make the DM1182 an ideal choice for applications that require both low-speed smoothness and high speed performances.

86HS120

Features:

*2-phase hybrid step motor

*High torque design

*Standard NEMA 34 dimensions

*Series or parallel and unipolar wiring

*Optimized for microstepping

Specifications:

General

Step Angle

1.8°

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Number of Leads

8

Electric

Model Number

Phase

Holding Torque Oz-in (Nm)

Phase Current (Amps)

Phase Resistance (Ohm)

Phase Inductance (mH)

Rotor Inertia Oz-in-sec2 (g.cm2)

86HS120

2

12

4.9

1.4

8.7

4000

Matching drives:

Model

Match drives

86HS35

EM705/EM806/DM870/DM1182

86HS45

86HS85

EM705/EM806/DM870/DM1182/ DM2282

Applications:

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
