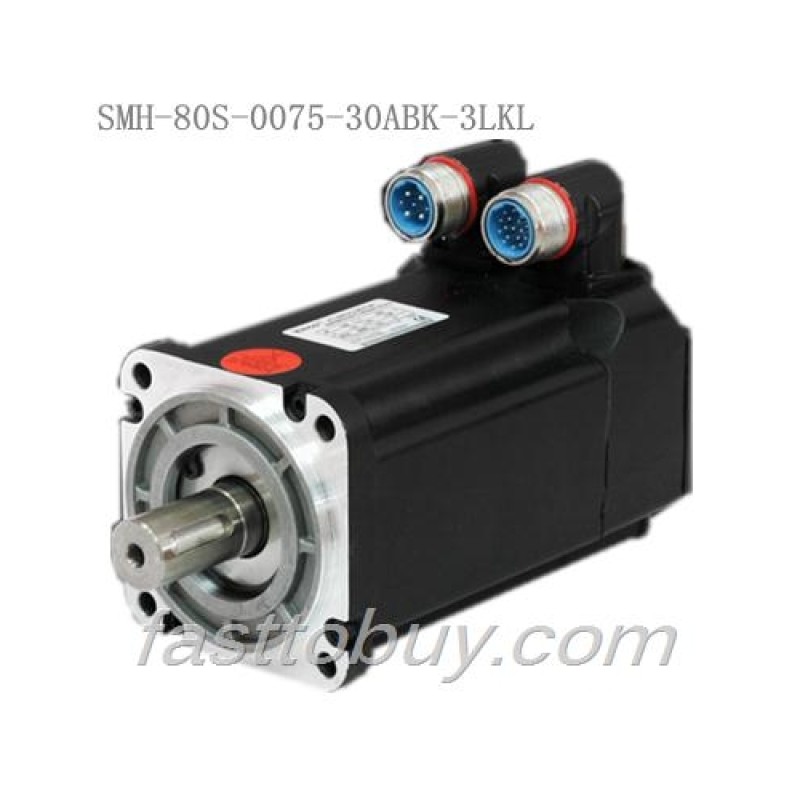

SMH-80S-0075-30ABK-3LKL Kinco Servo motor new in box

Motor series

Small inertia, flange size 80mm

Model

SMH80S-0075-30AAK-3LKX

SMH80S-0100-30AAK-3LKX

Compatible driver

CD420-AA-000

CD430-AA-000

DC link voltage UDC

300

300

Continuous
 performance

Rated power   PN (W)

750

1000

Rated torque   TN (Nm)

2.39

3.18

Rated speed   nN (rpm)

3000

3000

Rated current IN (A)

3.9

6.3

Maximum torque         Tm (Nm)

7.17

9.48

Maximum current        Im (A)

11.7

18.9

Standstill torque      TS (Nm)

2.63

3.3

Standstill current     IS (A)

4.4

6.93

Resistance line-line   RL (Ω)

1.4

0.86

Inductance line-line   LL (mH)

7.5

4.5

Electrical time constant τe (ms)

5.35

5.23

Mechanical time constant τm (ms)

0.75

0.89

Reverse voltage constant Ke (V/krpm)

40

34

Torque constant         Kt (Nm/A)

0.662

0.562

Rotor moment of inertia   Jm (Kg·cm² )

1.36

1.9

Pole pair number

3

3

Maximum voltage rising du/dt (KV/μs)

8

8

Insulation class

F

F

Maximum radial force    F (N)

335

335

Maximum axial force  F (N)

167.5

167.5

Weight  G(Kg)

3.3

3.9

4(with brake)

4.6(with brake)

Length of motor L(mm)

147

167

197±1.5(with brake)

217±1.5(with brake)

Position feedback device

Incremental encoder 2500ppr

Cooling method

Totally enclosed, non-ventilated

Protection level

IP65 for body, shaft sealing IP54

Environmental
conditions for
operation

Temperature

-20 °C ~40 °C

Humidity

Below 90% RH (No condensing)

Ambient enviroment

Away from active gas, combustible gas, oil drops and dust

Altitude

Maximum altitude 4000m, Rated power at 1000m or below, Above 1000m: Decreasing 1.5% per 100m rise
