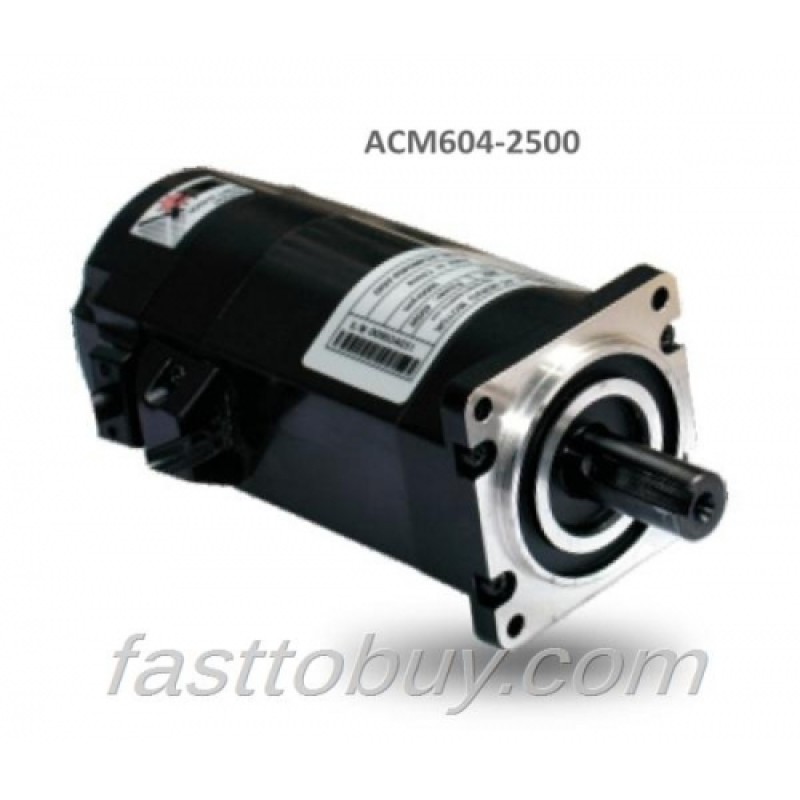

Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New

Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New PLCAGE: Le... Read More
$252.00
Ex Tax: $252.00
  • Stock: In Stock
  • Model: ACM604-2500
  • Weight: 1.48kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: ACM604-2500
Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New



PLCAGE: Leadshine Brushless Servo Motor ACM Series ACM604-2500 220V 400W 1.27N.M 3000rpm 60mm New

Introductions:

ACM604V60 is a 400W brushless AC servo motor with 10,000 PPR (2,500 line) optical incremental encoder, 3,000 RPM continuous speed and 4,000 RPM peak. When driven by Leadshine ACS series servo drives, this servo motor can run very smoothly between from 1 - 4,000 RPM quietly at very high precision. It has been implemented in hundreds of industrial OEM applications around the world.

Features:

*Brushless construction, reliable industrial quality

*High torque density, and optimized for quick response

*60mm frame size, 60 VDC rated voltage, 400W rated power

*10000 CPR (2500-line) increamental encoder with A, B, indexing signals

*1.28 N-m (180 oz-in) rated torque / 3.82 N-m (540 oz-in) peak

*3000 RPM rated speed / 4000 RPM peak

*Standard cabling options for direct connection to the ACS series servo drives

Specifications:

Model

ACM601V36

ACM602V36(A)*

ACM602V60(A)*

ACM604V60

ACM602V36-30

ACM604V60-30

Rated Voltage (V)

36

36

60

60

36

36

Rated Power (W)

100

200

200

400

200

400

Rated Torque (N.M)

0.318

0.64

0.64

1.27

0.64

1.27

Peak Torque (N.M)

0.95

1.91

1.91

3.82

1.92

3.81

Rated Speed (RPM)

3000

3000

3000

3000

3000

3000

Peak Speed (RPM)

4000

4000

4000

4000

4000

4000

Rated Current (A)

4

7.6

4.7

8.4

7.6

8.4

Peak Current (A)

11

22

14

25

22

25

Torque Const. (N.M/A)

0.0866

0.0918

0.15

0.161

0.084

0.151

Back EMF Const. (V/RPM)

3.03 x 10-3

3.213 x 10-3

5.24 x 10-3

5.54 x 10-3

3.2 x 10-3

5.5 x 10-3

Resistance (ohm)

0.38

0.16

0.38

0.19

0.39

0.28

Inductance (mH)

0.91

0.41

1.07

0.59

0.33

0.34

Inertia (kgm2 x 10-4 )

0.1032

0.176(0.178)

0.176(0.178)

0.3549

0.32

0.46

Allowable radial load (N)

78.6

245

245

245

245

245

Allowable axial load (N)

38.2

68

68

74

68

74

Flange Size (mm)

60

60

60

60

60

60

Mounting Diameter (mm)

70

70

70

70

70

70

Shaft Diamter (mm)

8

11(14)

11(14)

14

11

14

Motor Length (mm)

86.7

100.7

100.7

127.8

123

143

Pole Pairs (-)

4

4

4

4

4

4

Encoder Res. (counts/rev.)

2500**

2500**

2500**

2500**

1000**

1000**

Mass (Kg)

0.701

0.966

0.984

1.463

0.95

1.48

Ambient Temperature (°C)

0~40

0~40

0~40

0~40

0~40

0~40

* The ACM602V36(A) means two models. The ACM602V36 and ACM602V36A which is different from the former in inertia and shaft diameter.

** Standard. Other configurations available.

Matching drives:

Model

Matching Drives

100 W AC Servo Motors

ACS806

200 W AC Servo Motors

ACS806

400 W AC Servo Motors

ACS806, EL5-D400
