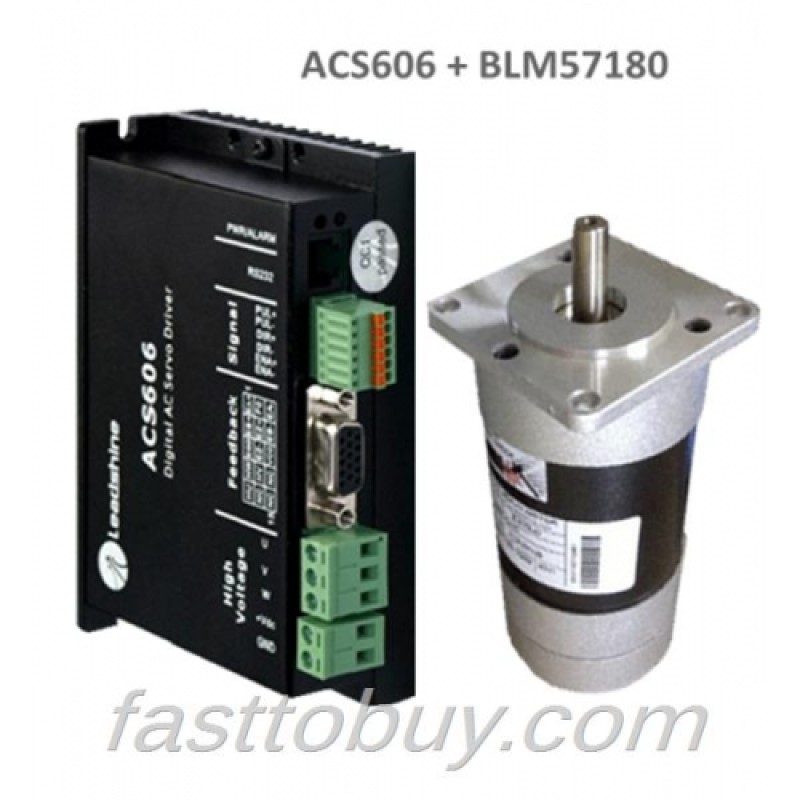

Leadshine 180W brushless DC servo set (drive ACS606 + motor BLM57180) New

PLCAGE: Leadshine Brushless Servo Drive ACS Series ACS606 DC18-60V Cont. 6A Peak 18A 200W for 25-200W Servo Motor New

Introductions:

Leadshine's fully digital AC servo drive ACS606 is developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS606 without changing control systems. The ACS606 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements. The ACS606 can drive both DC brushless and AC servo motors.But it is more suitable for the DC brushless servo motors. Compare to the ACS806, the ACS606 has less I/O, thus has smaller size and higher cost-effective.

Features:

*Advance DSP current control technology

*Step & Dir, or CW/CCW control

*Input voltage: 18 - 60 VDC

*Continuous current: 6 A

*Peak current: 18A

*Capable of driving 10 - 360 W brushless servo motors

*Electronic gear rate from 1/255 to 255

*Built-in motion profile for testing with trapezoidal velocity profile

*Opto-isolated

*Small size, surface-mount technology

Specifications:

Matching motors:

Applications:

Suitable for large and medium automation machines and equipments, such as inkjet printers, engraving machines, electronic manufacturing equipments, special NC machines, pick and place devices, packing devices, and so on. Particularly adapt to the applications require high speed, high precision, and low motor noise.

Other hot items of this Leadshine brushless servo drives for above applications:

PLCAGE: Leadshine Brushless Servo Motor BLM Series BLM57180 36VDC 180W 0.57N.M 3000 rpm New

Introductions:

Built with high quality materials, Leadshine BLM57180 is a 180W brushless DC servo motor at industrial quality. The standard model is integrated with a 4,000 PPR (1000-line) incremental encoder. It can provide smooth movement with low noise and motor heating in your motion control system.

When driven by Leadshine ACS series servo drives, it can output the high torque you need at continuous speed from 1 rpm to 3000 rpm.  It is a flange mounted motor, and mounting is compatible with NEMA23 stepper motors. At the cost even lower than many stepper systems on the market, this solution is ideal to upgrade your system from steppers to servos, or from brushed DC servos to brushless servos. It can offer AC-servo-like performance, such as high speed, high precision, low motor noise and low heating performance, while at the cost of normal stepper systems.

Features:

*Brushless construction

*Reliable industrial quality

*NEMA23 frame size, 36 VDC rated voltage, 180W rated power

*4000 CPR (1000-line) increamental encoder with A, B signals

*0.57 N-m (81 oz-in) rated torque / 1.71 N-m (243 oz-in) peak

*3000 RPM rated speed / 4000 RPM peak

*Standard cabling options for direct connection to the ACS series servo drives

Specifications:

Matching motors:
