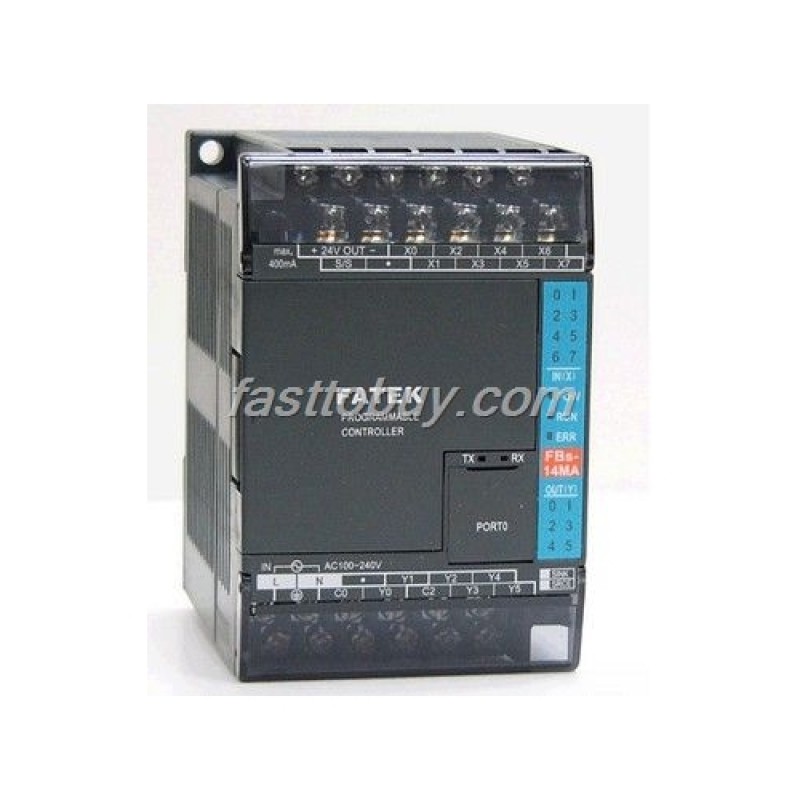

FBs-14MAT FATEK PLC FBs-MA NEW

Specification                   Specification

FBs?14MAR/O

FBs?14MAT/J

Digital inputs

24VDC

Medium speed?20KHz?

4 points (X0?X1 ?X4 ?X5)

Medium speed(the sum of 5KHz)

4 points

Digital output

Relay?R?/PhotoMOS(O)

6 points

—

Transistor

Medium speed?20KHz?

—

6 points?Y0~Y5?

Low speed

—

—

Communication port

Built-in

A communication port (Port0, USB, or RS232)

Scalable

2 communication ports (Port1 ~~ 2, RS485 or RS232 or Ethernet)

Scalable models

Communication board, analog board

Calendar

Optional

Built-in power supply

21W?SPW14?AC/D12/D24

Wiring institutions

7.62mm fixed terminal block

Installation

Rail mounting, screw mounting

Dimensions (W × H × D)

60×90×80mm

Specification                     item

DC power supply

AC power

Input voltage

12/24VDC?15%/+10%?

100~240VAC?15%/+10%?

Power frequency

—

50/60Hz±5%

The maximum power consumption of the power supply (built-in)

15W(POW10D12/D24)

21W(POW14)

Inrush current

20A,DC24V

20A,264VAC

Allows instantaneous power failure time

Less than 20ms

Less than 20ms

Fuse Size

3.15A,250VAC

2A,250VAC

       Item

Specification

Operational peripheral temperature

Airtight equipment

5°C ~ 40°C

Open equipment

5°C ~ 55°C

Storage Temperature

25°C?+70°C

Relative humidity (non-condensing, RH2)

5%?95%

Pollution Degree

Degree II

Corrosion resistance

According to IEC68 standard

Altitude

?2000m

Vibration Resistance

DIN RAIL fixed

0.5G 3-axis direction for 2 hours each

Screws

2G, 3-axis direction for 2 hours

Impact resistance

10G, 3-axis direction of the 3 times

Resistance to noise

1500Vpp, pulse width 1us

Withstanding Voltage

1500VAC, 1 minute
