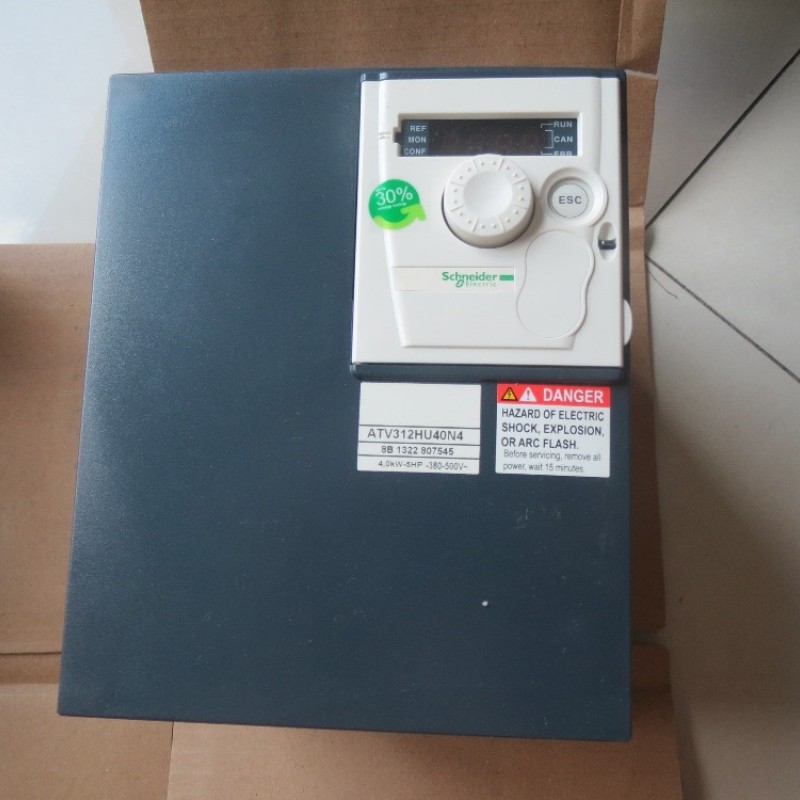

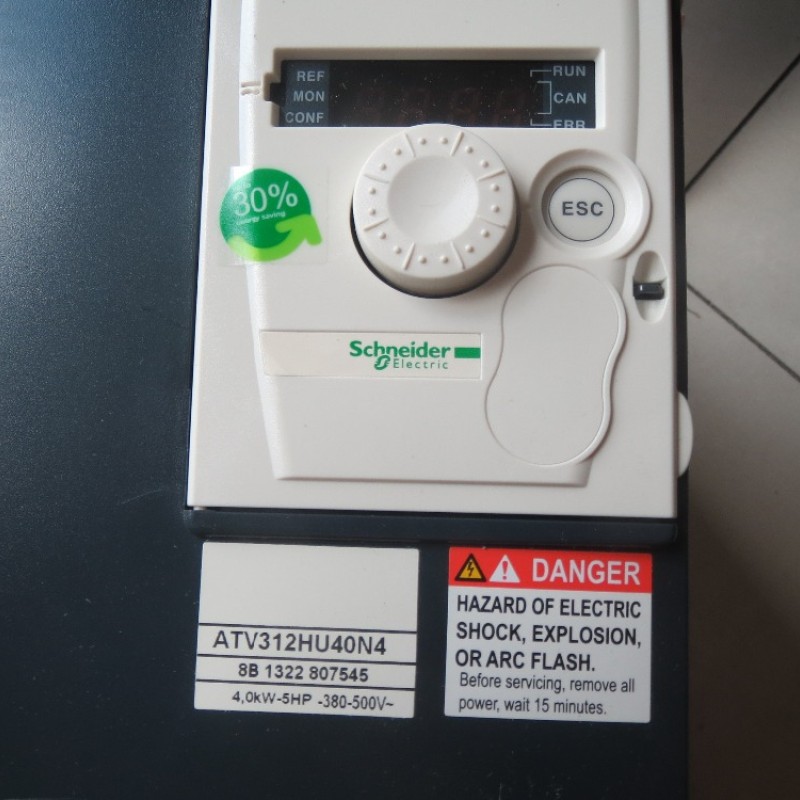

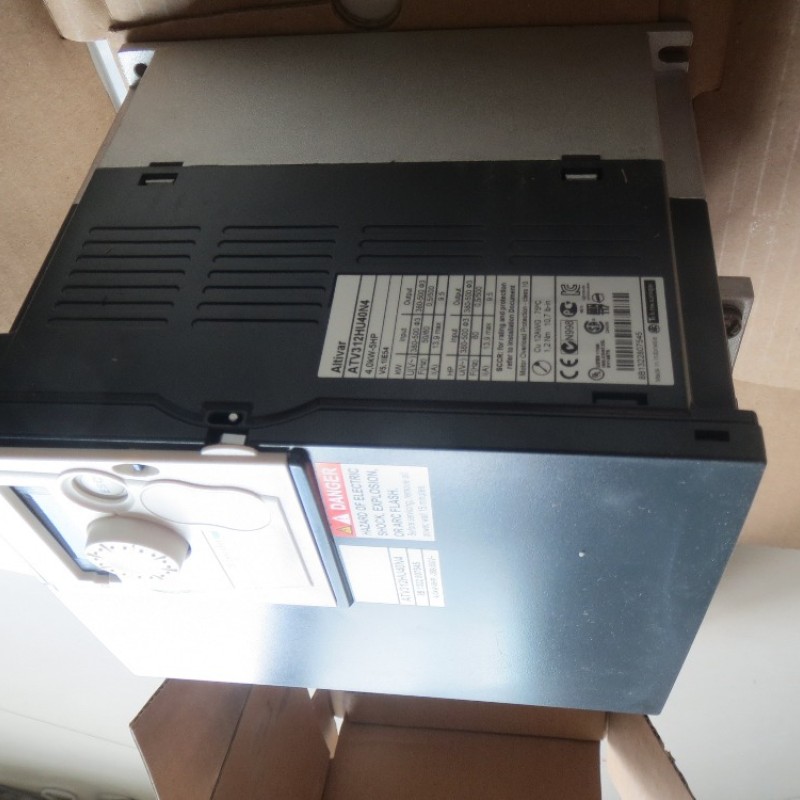

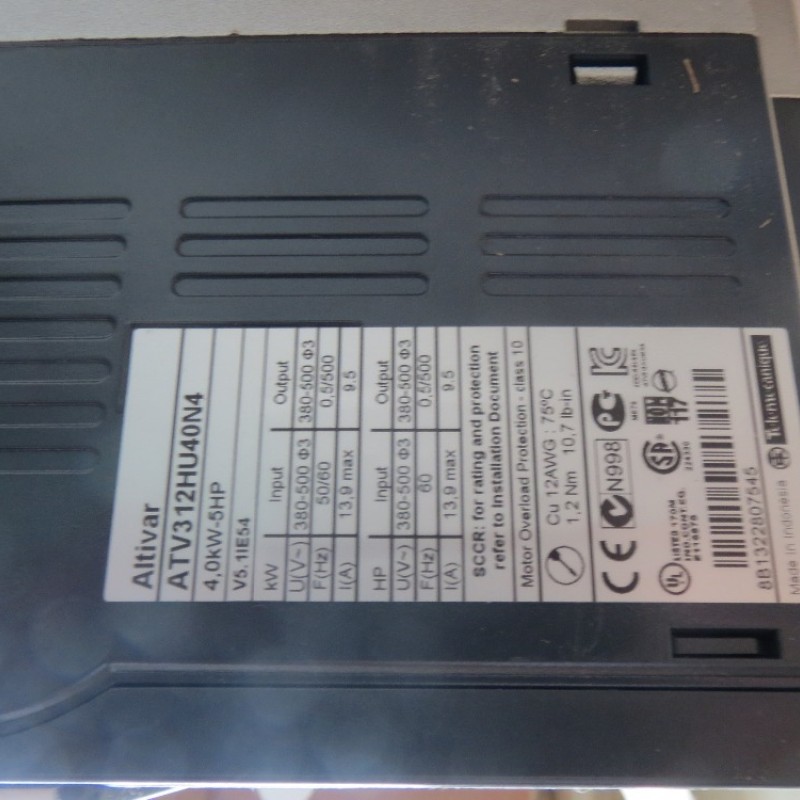

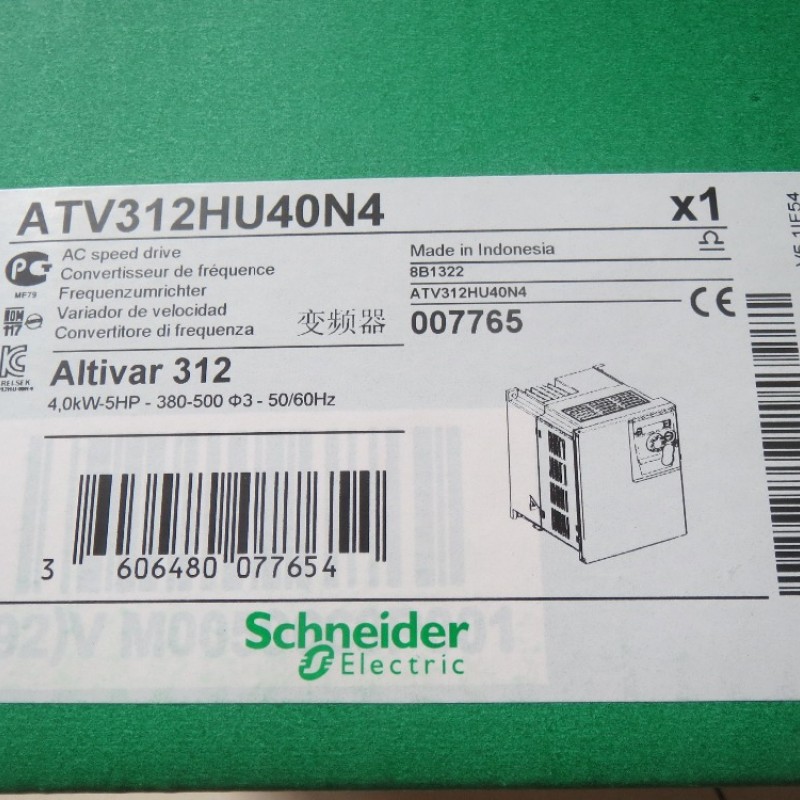

ATV312HU40N4
Brief Introduction
ATV312 drive - Variable speed drives for three-phase asynchronous motors from 0.18 to 15 kW - 600 V maximum power supply
Benefits
Very friendly and so communicating
Enhanced communication, Simplified user interface;
Numerous application-specific functions, Rugged for use in all environments
Drive ratings
Single phase supply voltage: 200…240 V 50/60 Hz
For three phase output 200/240 V motors
Motor | Line supply (input) | Drive (output) | Reference | ||||||
Power indicated on plate | Max. current line | Apparent power | Max. inrush current | Power dissipated at nominal current | Nominal current | Max. transient current | |||
At 200 V | At 240 V | ||||||||
kW | HP | A | A | kVA | A | W | A | A |
|
0.18 | 0.25 | 3.0 | 2.5 | 0.6 | 10 | 24 | 1.5 | 2.3 | ATV312H018M2(5) |
0.37 | 0.5 | 5.3 | 4.4 | 1.0 | 10 | 41 | 3.3 | 5.0 | ATV312H037M2(5) |
0.55 | 0.75 | 6.8 | 5.8 | 1.4 | 10 | 46 | 3.7 | 5.6 | ATV312H055M2(5) |
0.75 | 1 | 8.9 | 7.5 | 1.8 | 10 | 60 | 4.8 | 7.2 | ATV312H075M2(5) |
1.1 | 1.5 | 12.1 | 10.2 | 2.4 | 19 | 74 | 6.9 | 10.4 | ATV312HU11M2(5) |
1.5 | 2 | 15.8 | 13.3 | 3.2 | 19 | 90 | 8.0 | 12.0 | ATV312HU15M2(5) |
2.2 | 3 | 21.9 | 18.4 | 4.4 | 19 | 123 | 11.0 | 16.5 | ATV312HU22M2(5) |
Three phase supply voltage: 380…500 V 50/60 Hz
For three phase output 380/500 V motors
Motor | Line supply (input) | Drive (output) | Reference | ||||||
Power indicated on plate | Max. current line | Apparent power | Max. inrush current | Power dissipated at nominal current | Nominal current | Max. transient current | |||
At 380 V | At 500 V | ||||||||
kW | HP | A | A | kVA | A | W | A | A |
|
0.37 | 0.5 | 2.2 | 1.7 | 1.5 | 10 | 32 | 1.5 | 2.3 | ATV312H037N4(5) |
0.55 | 0.75 | 2.8 | 2.2 | 1.8 | 10 | 37 | 1.9 | 2.9 | ATV312H055N4(5) |
0.75 | 1 | 3.6 | 2.7 | 2.4 | 10 | 41 | 2.3 | 3.5 | ATV312H075N4(5) |
1.1 | 1.5 | 4.9 | 3.7 | 3.2 | 10 | 48 | 3.0 | 4.5 | ATV312HU11N4(5) |
1.5 | 2 | 6.4 | 4.8 | 4.2 | 10 | 61 | 4.1 | 6.2 | ATV312HU15N4(5) |
2.2 | 3 | 8.9 | 6.7 | 5.9 | 10 | 79 | 5.5 | 8.3 | ATV312HU22N4(5) |
3 | 3 | 10.9 | 8.3 | 7.1 | 10 | 125 | 7.1 | 10.7 | ATV312HU30N4(5) |
4 | 5 | 13.9 | 10.6 | 9.2 | 10 | 150 | 9.5 | 14.3 | ATV312HU40N4(5) |
5.5 | 7.5 | 21.9 | 16.5 | 15.0 | 30 | 232 | 14.3 | 21.5 | ATV312HU55N4(5) |
7.5 | 10 | 27.7 | 21.0 | 18.0 | 30 | 269 | 17.0 | 25.5 | ATV312HU75N4(5) |
11 | 15 | 37.2 | 28.4 | 25.0 | 97 | 397 | 27.7 | 41.6 | ATV312HD11N4(5) |
15 | 20 | 48.2 | 36.8 | 32.0 | 97 | 492 | 33.0 | 49.5 | ATV312HD15N4(5) |
Applications
Textile machine
Packaging machine
Material handling machine
Machine tools, wood working machine
Fan & pump machine
Special machine (plastics machine, building material machine, etc.)
