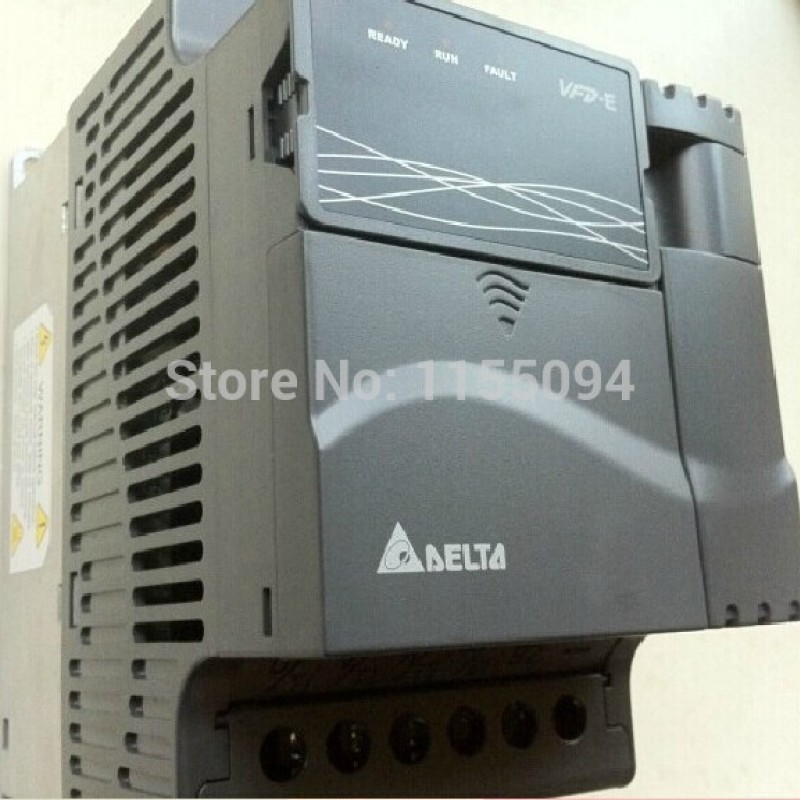

Delta Inverter VFD drive VFD002E23T 3Phase 220V 0.2kW 0.25HP 0.1~600Hz Grinding &Drilling machine

Control Characteristics

Control System

SPWM (Sinusoidal Pulse Width Modulation)Control (V/f or sensorless vector control)

Frequency Setting Resolution

0.01Hz

Outing Frequency Resolution

0.01Hz

Torque Characteristics

Including the auto-torque/auto-slip compensation; starting torque can be 150% at 3.0Hz

Overload endurance

150% of rated current for 1 minute

Skip Frequency

Three zones, setting range 0.1~600Hz

Accel/Decel Time

0.1 to 600 seconds (2 Independent setting of Accel/Decel time)

Stall Prevention Level

Setting 20 to 250% of rated current

DC Braking

Operation frequency 0.1~600.0Hz, output 0~100% rated current

Start time 0~60 seconds, stop time 0~60 seconds

Regenerated Braking Torque

Approx, 20% (up to 125% possible with optional brake resistor or externally mounted brake unit, 1-15hp models(built-in brake chopper)

V/f Pattern

Adjustable V/f pattern

Operating Characteristics

Frequency Setting

Keypad

Setting by “UP” “Down”

External Signal

Potentiometer-5k ohm / 0.5W, 0 to +10VDC, 4 to 20mA, RS-485 interface; Multi-function Inputs 3 to 9(15 steps, Jog, up/down)

Operation Setting Signal

Keypad

Set by RUN and STOP

External Signal

2 wires/3 wires (FWD, REV, EF), JOG operation, RS-485 serial interface(MODBUS), programmable logic controller

Multi-function Input signal

Multi-step selection 0 to 15, Jog, accel/decal inhibit, 2 accel/decal switches, counter, external Base Block (NC,NO), axxiliary motor control is invalid, ACI/AVI/AUI selections, driver reset, UP/DOWN key setting, sink/source(-NPN/PNP) selection

Multi-function Output Indication

AC drive operating, frequency attained, non-zero frequency, Base Block, fault indication, local/remote, indication, auxiliary motor output, drive is ready, overheat alarm, emergency stop and status selections of input terminals(NC/NO)

Analog Output Signal

Output frequency/current

Alarm Output Contact

Contact will be On when drive malfunctions (1 Form C/Change-over contact or 1 open collector output)

Operation Functions

Built-in PLC, AVR, accel/decal S-Curve, over-voltage/over-current stall prevention, 5 fault records, reverse inhibition, momentary power loss restart, DC braking , auto torque/slip compensation, auto tuning, adjustable carrier frequency, output frequency limits, parameter lock/reset, vector control, PID control, external counter, MODBUS communication, abnormal reset, abnormal re-start, power-saving, sleep/wake function, fan control 1st/snd frequency source selections, 1st/2nd frequency source combination.

Protection Functions

Over voltage, over current, under voltage, under current, external fault, overload, ground fault over heating, electronic thermal, IGBT short circuit, PTC

Display Keypad

6-key, 7-segment LED with 4-digit, 5 status LED, master frequency, output frequency, output current, custom units, parameter values for setup and lock, faults, RUN/STOP/RESET,FWD/REV

Built-in EMI Filter

For 230V 1-phase and 460V 3-phase models

Environmental

Conditions

Enclosure Rating

IP20

Pollution Degree

2

Installation Location

Altitude 1,000m or lower, keep from corrosive gasses, liquid and dust

Ambient Temperature

-100C to + 500C (400C for side-by-side mounting) Non-Condensing and not frozen

Storage/Transportation Temperature

-200C + 600C

Ambient Humidity

Below 90% RH (non-condensing)

Vibration

9.80665m/s2(1G) less than 20Hz, 5.88m/s2 (0.6G) at 20 to 50Hz

Voltage Class

115V

Model Number VFDXXXE

002

004

007

Max. Applicable Motor Output (kW)

0.2

0.4

0.75

Max. Applicable Motor Output (hp)

0.25

0.5

1.0

Output Rating

Rated Output Capacity (kVA)

0.6

1.0

1.6

Rated Output Current (A)

1.6

2.5

4.2

Maximum Output Voltage(V)

3-phase proportional to twice the input voltage

Output Frequency(Hz)

0.1~600Hz

Carrier Frequency(kHz)

1-15

Input Rating

Rated Input Current(A)

Single-phase

6

9

18

Rated Voltage/Frequency

Single phase 100-120V, 50/60Hz

Voltage Tolerance

+-10%(90-132V)

Frequency Tolerance

+-5%(47-63Hz)

Cooling Method

Natural Cooling

Fan Cooling

Weight(kg)

1.2

1.2

1.2

Voltage Class

230V

Model Number VFDXXXE

002

004

007

015

022

037

055

075

110

150

Max. Applicable Motor Output (kW)

0.2

0.4

0.75

1.5

2.2

3.7

5.5

7.5

11

15

Max. Applicable Motor Output(hp)

0.25

0.5

1.0

2.0

3.0

5.0

7.5

10.0

15

20

Output Rating

Rated Output Capacity(kVA)

0.6

1.0

1.6

2.9

4.2

6.5

9.5

12.5

17.1

25

Rated Output Current(A)

1.6

2.5

4.2

7.5

11.0

17

25

33

45

65

Maximum Output Voltage(V)

3-phase proportional to input voltage

Output Frequency(Hz)

0.1~600Hz

Carrier Frequency(kHz)

1-15

Input Rating

Rated Input Current(A)

Single/3-phase

3-phase

4.9/1.9

6.5/2.7

9.7/5.1

15.7/9

24/15

20.6

26

34

48

70

Rated Voltage/Frequency

Single/3-phase, 200-240V, 50/60Hz

3-phase, 200-240V, 50/60Hz

Voltage Tolerance

+-10% (180-264V)

Frequency Tolerance

+-5%(47-63Hz)

Cooling Method

Natural Cooling

Fan Cooling

Weight(kg)

1.1

1.1

1.1

1.9

1.9

1.9

3.5

3.5

3.57

6.6

Voltage Class

460V

Model Number VFDXXXE

004

007

015

022

037

055

075

110

150

185

220

Max. Applicable Motor Output (kW)

0.4

0.75

1.5

2.2

3.7

5.5

7.5

11.0

15

18.5

22

Max. Applicable Motor Output(hp)

0. 5

1.0

2.0

3.0

5.0

7.5

10.0

15.0

20

25

30

Output Rating

Rated Output Capacity(kVA)

1.2

2.0

3.3

4.4

6.8

9.9

13.7

18.3

24

29

34

Rated Output Current(A)

1.5

2.5

4.2

5.5

8.5

13.0

18.0

24.0

32

38

45

Maximum Output Voltage(V)

3-phase proportional to input voltage

Output Frequency(Hz)

0.1~600Hz

Carrier Frequency(kHz)

1-15

Input Rating

Rated Input Current(A)

3-phase

1.9

3.2

4.3

7.1

11.2

14

19

26

35

41

49

Rated Voltage/Frequency

3-phase, 380-480V, 50/60Hz

Voltage Tolerance

+-10% (342-528V)

Frequency Tolerance

+-5%(47-63Hz)

Cooling Method

Natural Cooling

Fan Cooling

Weight(kg)

1.2

1.2

1.2

1.9

1.9

4.2

4.2

4.2

7.47

7.47

7.47
