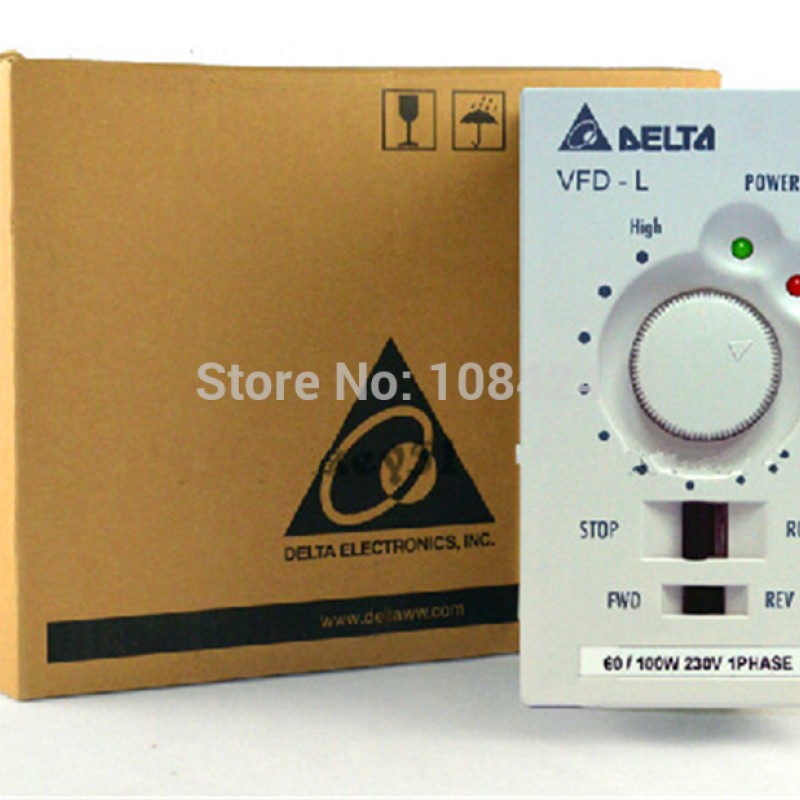

Delta Inverter VFD drive VFD001L21A 1Phase 220V 0.1kW 0.125HP 1~120Hz Wood cutting &Wire drawing

Voltage Class

115V Class

230V Class

Model Number VFD-XXX   L XXA/B

40W

001

40W

001

Weight  g (lb) A (standard)

270 (0.60)

440 (0.97)

260 (0.57)

430 (0.95)

Weight  g (lb) B (build-in EMI filter)

350 (0.77)

525 (1.16)

340 (0.75)

510 (1.12)

Max. Applicable Motor Output (W)

25/40

60/100

25/40

60/100

Output Rating

Rated Output Capacity (VA)

106/152

212/303

106/152

212/303

Rated Output Current (A)

0.28/0.4

0.56/0.8

0.28/0.4

0.56/0.8

Maximum Output Voltage (V)

Two times proportion to

Input Voltage

Proportional to Input

Voltage

Rated Frequency (Hz)

1.00 to 120.00 Hz

Input Rating

Rated Voltage/Frequency

Single phase

100 to 120 VAC

50/60 Hz

Single phase

200 to 240 VAC 50/60Hz

Voltage/Freq. Tolerance

Voltage:  ±10%,  Frequency:  ±5%

Input Current (A)

1.1A

1.5A

2.2A

3.0A

0.5A

0.7A

1.0A

1.4A

Control

Characteristics

Control Systems

SVPWM (Space Vector Pulse Width Modulation,

carrier frequency 10kHz)

Torque Setting

High/Low, Switching

Overload Endurance

150% of rated current for 1 minute

Accel/Decel Time

0.05 to 30.0 seconds

Torque Promotion

Torque Boots: 0 or 8%

Operation Characteristics

Frequency Setting

Potentiometer

Operation Setting Signal

Panel

RUN/STOP, FORWARD/REVERSE

Ext. Terminal

RUN/STOP, FORWARD/REVERSE, RS-485

Output Indiction

Panel

Fault Indication (LED Flash)

Ext. Terminal

Fault Indication (Open Collector)

Protection

Self-testing, Over Voltage, Over Current, Under

Voltage, Overload, Overheating, Thermal.

Cooling

Natural air-cooling

Environment

Installation Location

Altitude 1,000m or lower, keep from corrosive

gasses, liquid and dust

Pollution Degree

2

Ambient Temperature

-10oC to 40oC (Non-Condensing and not frozen)

Storage Temperature

-20oC to 60oC

Ambient Humidity

Below 90% RH (non-condensing)

Vibration

9.80665m/s2

 (1G) less than 20Hz, 5.88m/s2

(0.6G) at 20 to 50Hz
