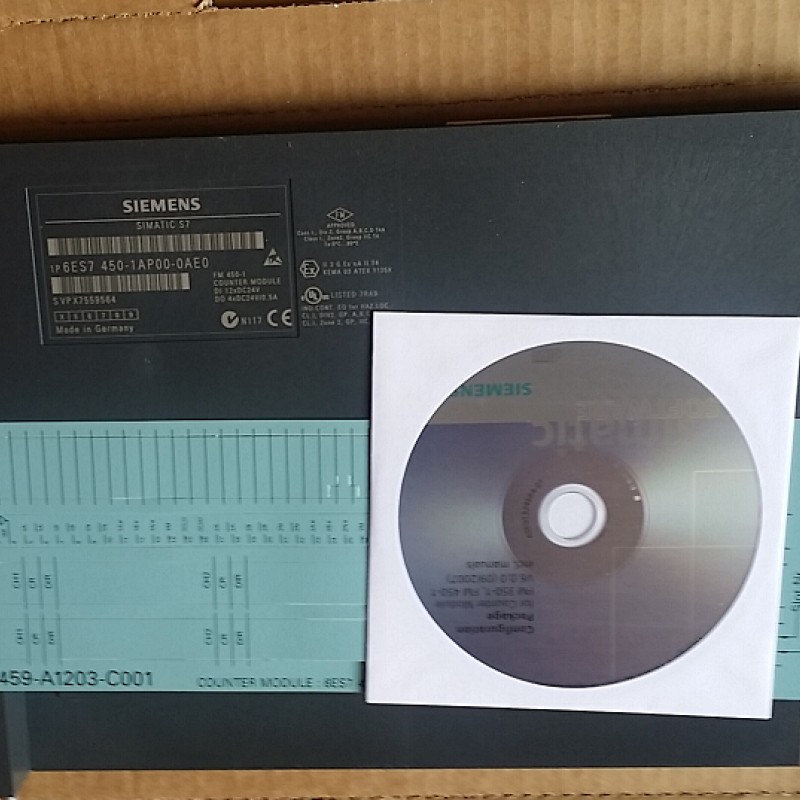

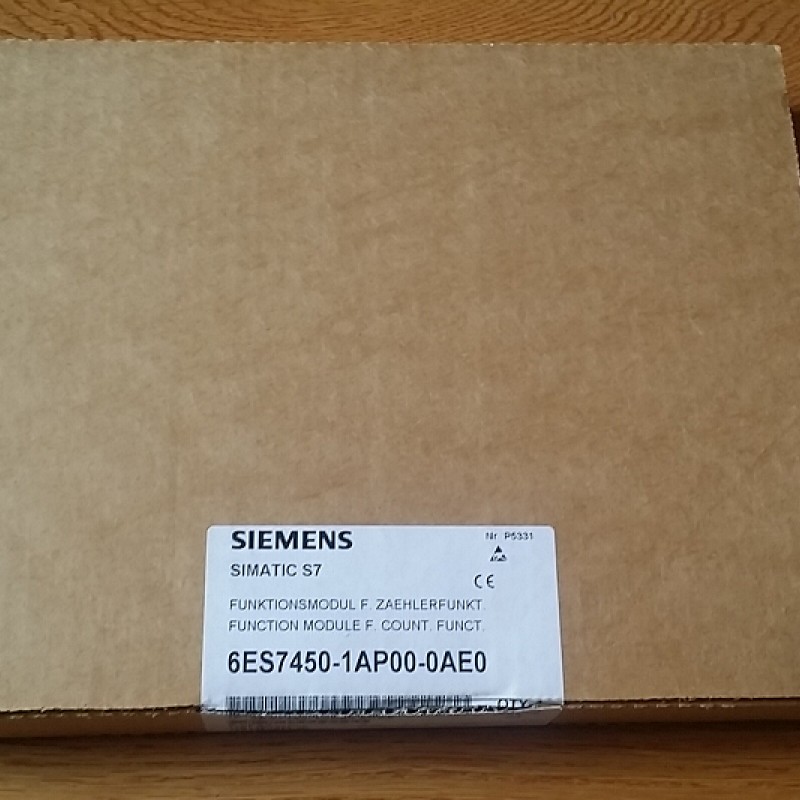

6ES7450-1AP00-0AE0 SIEMENS Counter Module New

Supply voltage

Load voltage 1L+

Reverse polarity protection

Yes

Load voltage 2L+

Reverse polarity protection

Yes

Aux. voltage 1L+, load voltage 2 L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)

28.8 V; dynamic 30.2 V

non-periodic skip

Duration

500 ms

Recovery time

50 s

Value

35 V

Input current

from load voltage 1L+ (without load), max.

40 mA

from backplane bus 5 V DC, max.

450 mA

Encoder supply

5 V encoder supply

5 V

Yes; 5.2 V +/-2%

Short-circuit protection

Yes

Output current, max.

300 mA

24 V encoder supply

24 V

Yes; 1L+ (-3 V)

Short-circuit protection

Yes

Output current, max.

300 mA

Power losses

Power loss, typ.

9 W

Digital inputs

Number/binary inputs

6

Functions

1 for gate start, 1 for gate stop, 1 for setting the counter

Input voltage

for signal "0"

-28.8 to +5 V

for signal "1"

+11 to +28.8 V

Input current

for signal "1", typ.

9 mA

Input delay (for rated value of input voltage)

Input frequency (with a time delay of 0.1 ms), max.

200 kHz

for standard inputs

Parameterizable

Yes

at "0" to "1", max.

2.5 µs; >= 2.5 µs (200 kHz); <= 25 µs (20 kHz)

Digital outputs

Number/binary outputs

6

Functionality/short-circuit strength

Yes; Clocked electronically

Limitation of inductive shutdown voltage to

2L+ (-39 V)

Output voltage

for signal "0", max.

3 V

for signal "1", min.

2L+ (-1.5 V)

Output current

for signal "1" rated value

0.5 A

for signal "1" permissible range for 0 to 60 °C, min.

5 mA

for signal "1" permissible range for 0 to 60 °C, max.

0.6 A

Output delay with resistive load

0 to

300 µs

Encoder

Connectable encoders

Incremental encoder (symmetrical)

Yes; With 2 pulse trains offset by 90°

Incremental encoder (asymmetrical)

Yes

24 V initiator

Yes

24 V directional element

Yes; 1 pulse train, 1 direction level

Interrupts/diagnostics/status information

Status indicator

Yes; 14 green LEDs for status of CR, DIR, inputs and outputs

Alarms

Diagnostic alarm

Yes; Parameterizable

Hardware interrupt

Yes; Parameterizable

Diagnostic messages

Diagnostic functions

Yes

Diagnostics

Yes; Diagnostic information readable

Diagnostics indication LED

Description

2 red LEDs for internal and external errors

Status indicator digital output (green)

Yes

Status indicator digital input (green)

Yes

Counter

Number of counter inputs

2; 32 bit or +/-31 bit

Counter input 5 V

Type

RS 422

Terminating resistor

220 Ω

Differential input voltage

min. 0.5 V

Counting frequency, max.

500 kHz

Counter input 24 V

Input voltage, for signal "0"

-30 to +5 V

Input voltage, for signal "1"

+11 to +30 V

Input current, for signal "1", typ.

9 mA

Counting frequency, max.

200 kHz

Minimum pulse width

>= 2.5 µs (200 kHz); <= 25 µs (20 kHz) (parameterizable)

Parameter

Remark

Assigned binary addresses: 64 bytes/64 bytes

Galvanic isolation

Galvanic isolation digital inputs

between the channels and the backplane bus

Yes; Optocoupler

Galvanic isolation digital outputs

between the channels and the backplane bus

Yes; Optocoupler

Galvanic isolation counter

between the channels and the backplane bus

Yes; Optocoupler

Permissible potential difference

between different circuits

75 VDC / 60 VAC

Isolation

Isolation checked with

500 V

Connection method

required front connector

1x 48-pin

Dimensions

Width

25 mm

Height

290 mm

Depth

210 mm

Weight

Weight, approx.

650 g
