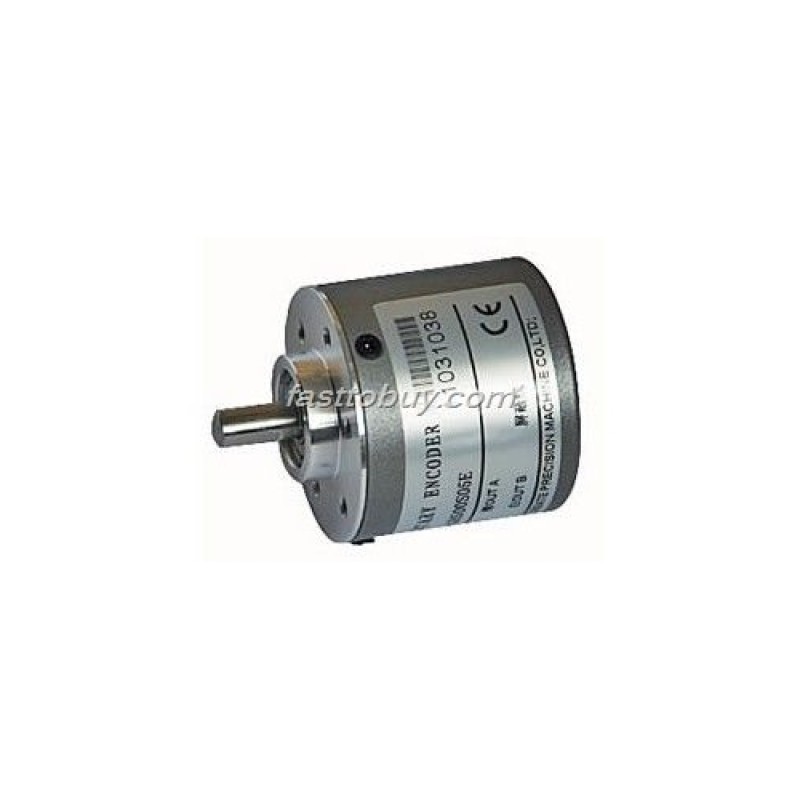

ZSP4006-003G-600BZ3-12-24C REP encoder

zsp4006:
The product is widely used in automatic control, automatic measurement, remote control, computer technology and CNC machine tools for angle and horizontal and vertical coordinates of the measurement

Applicable to the vibration environment

Using wide asic optoelectronic devices, rugged, high reliability, long life, anti-interference ability temperature ranges

Incremental outer diameter φ40 encoder
Small encoder (outer diameter φ40)
? adapt to the needs of the positioning. A, b-phase output type equipped with the origin of the output (z-phase).
? the size of the outer diameter of φ40, with a multi-resolution, multi-pulse number of the product.

Description:

Up to 40 mm long-range detection can effectively reduce the problems caused by the workpiece conflict, install more confidence! Promise rules wiring easier!

The product is widely used in automatic control, automatic measurement, remote control, computer technology and CNC machine tools for angle and horizontal and vertical coordinates of the measurement

Power supply voltage: the dc 5v,5-12v,12-24v,5-24v

[Pulse]: 10,30,40,50,60,100,120,180,200,256,300,360,400,500,512,600

720,800,1000,1024,1200,1500,1800,2000,2048,2500,3000,3600,4000,4096,

5000,5400 ..................

[Output Type:] Voltage output (e), open collector output (c), the complementary output (f), the drive output (l) (d)
