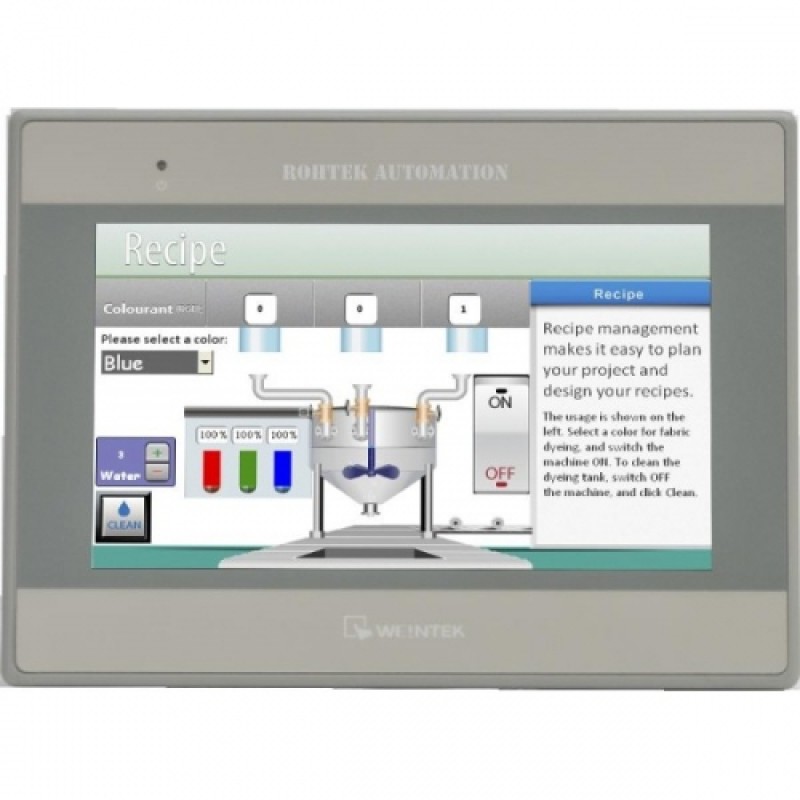

Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software

Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software
Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software
Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software
Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software
Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host with Programing Cable Software
Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host  The new iE series of operat... Read More
$354.00
Ex Tax: $354.00
  • Stock: In Stock
  • Model: MT8100iE
  • Weight: 2.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: MT8100iE

Weinview MT8100iE 10.1 inch Touch Pannel HMI 800*480 Ethernet USB Host




The new iE series of operator panels, made by Weintek, is one that follows the MT6000 and MT8000 series panels. It features a highly flexible customized exterior design, easy installation in embedded application, and dust-proof and waterproof flat cabinet. The iE Series offers a widescreen, full-color TFT screen with a diagonal of 10.2″, an LED back light, and touch screen controls. The high resolution screen can depict detailed visualizations of technological processes.



Product Features:



7" 800x480 TFT LCD
Fan-less cooling system
Built-in flash memory and RTC
NEMA4/IP65 compliant front panel
LED Back Light
One USB Host and one USB Client port
Power Isolator inside
Com1 RS485 and Com3 RS485 support MPI
187.5K, please select one to use at one time



WEINVIEW HMI port can communicate with most of the equipment, in especial

Allen-Bradley, Omron, Mitsubishi, Siemens,LG, Modicon, Ge, Fanuc, SNP-X, Delta, Facon, Liyan Ex Series, Matsushita, IDEC, Keyence Kv Series, Toshiba T Series, Koyo, Vigor, Yokogawa Fa-M3, Parker Compax3, Saia Pcd S-Bus Mode, Sew Eurodrive Movitrac, Baumuller Servo, Heng Yuan Sensor and so on.



Detailed Specifications:








Display

Display type

10” TFT

Resolution(WxH dots)

800x480

Brightness(cd/m2)

300

Contrast

500:1

Backlight type

LED

Backlight service life

>30,000 hours

Display colors

260,000

Touch Panel

Type

Four-wire analog resistance type

Touch-control precision

Active Area Length(X)±2%, Width(Y)±2%

Storage

Flash RAM(MB)

128

DRAM(MB)

128

Processor



Cortex A8 32Bit RISC 600MHz





Communication Port

USB HOST

USB 2.0 x 1

Ethernet

10/100 Base-T

COM connectors

Com1:RS-232/RS-485 2w/4w,

com3:RS-485 2w



Calendar



Built-in

Electricity Supply

Input power

24±20%VDC

Power dissipation

400mA@24V

Isolated power supply

Built-in

Pressure-proof

500 VAC(one min)

Insulating resistance

Over 500MW at 500 VDC

Quake-proof

10 to 25Hz(Direction X,Y,Z 2G 30 mins)

Specifications



Sheathing material

Industrial plastics

Outside measurement WxHxD

271 x 213 x 40mm

Opening size(mm)

260 x 202

Weight(kg)

About 1.3kg

Operating Environment

Protection level

IP65 front panel protection level

Storage Temperature

-200 ~ 600 (-40 ~ 1400F)

Operating Temperature

00 ~ 500C(320 ~ 1220F)

Operating Humidity

10% ~ 90%RH(No condensation)

CE Certification



EN 55022:2010

EN 55024:2010

EN 61000-3-2:2006+A2:2009

EN 61000-3-3: 2008

AS/NZS CISPR 22:2009+A1:2010

Software

UL

UL508 Type 4X



Easy Builder Pro V3.00.01 or updated versions
