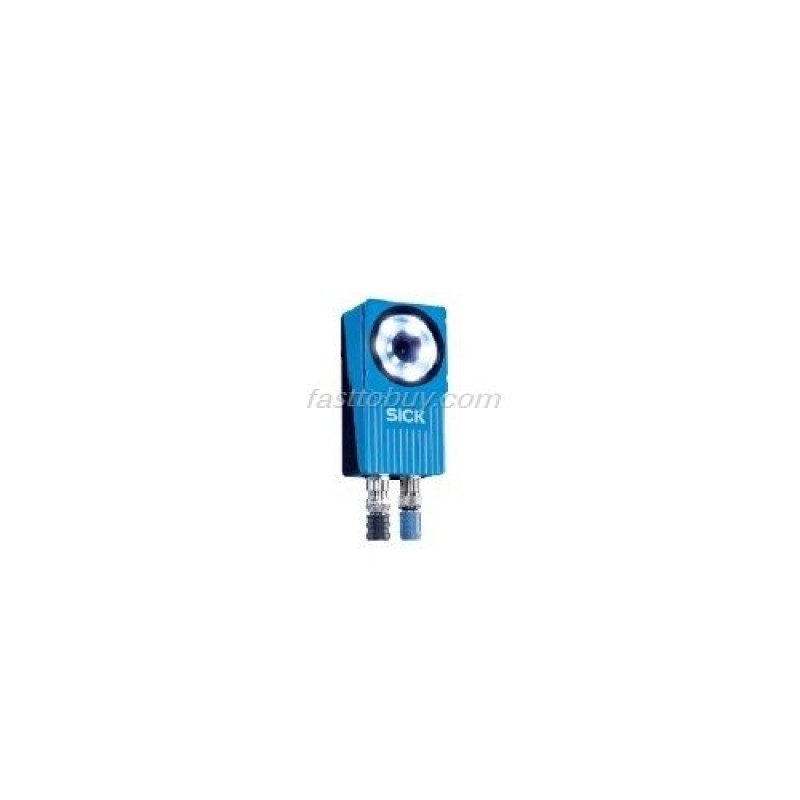

VSPI-2F111 SICK Vision Sensor NEW

Working distance

50 … ∞ mm

Working distance, internal illumination

50 … 200 mm

50 mm

Field of view 1) /default lens

20 x 20 … 72 x 72 mm2 / 6 mm

30 x 30 mm2 / 4.3 mm

22 x 15 … 79 x 58 mm2 / 10 mm

Optics

Exchangeable

Max. performance

250 fps

75 fps

Typical performance 2)

40 fps

50 fps

Repeatability, position

± 0.1 pixels

Repeatability, angle

± 0.02°

Toolset

Object locator

Pixel count, Edge pixel count, Contour

Pattern

Blob locator

Max reported positions

16

Reference images

16 objects

32 objects

Offline support

Emulator

Data store and retrieve

30 images device log

Record images on PC

Store images to FTP

PLC communication

EtherNet/IP

TCP/IP configurable protocol

I/O Box extension

4x inputs for object selection

5x inputs for object selection

16x outputs

Resolution

384 x 384 pixels

640 x 480 pixels

Light source

White ring light, 6x high-power LEDs

White dome light

UV ring light

Spectral response

Approx. 400 … 750 nm

Near UV < 400 nm

Supply voltage

24 V DC ± 20 %

< 450 mA, without load

Digital outputs

3 outputs 24 V (B-type)

4 outputs 24 V (B-type)

-Output current

100 mA

-Default outputs

No object detected, all pass, any fail

Directional guidence

-Configurable outputs

Output by logical expressions

Store images to FTP overflow

Control of external light

5 V TTL

Digital inputs

4 inputs 24 V

3 inputs 24 V

-Configurable inputs

External trigger, encoder, external teach

Reference object selection

Interface

100 Mb Ethernet

Ambient temperature 3)

Operation: 0°C … +45°C

Storage: –20°C … +70°C

Housing material

Aluminium

Window material

PMMA (plastic)

Glass

Weight

350 g

400 g

enclosure rating

IP 67
