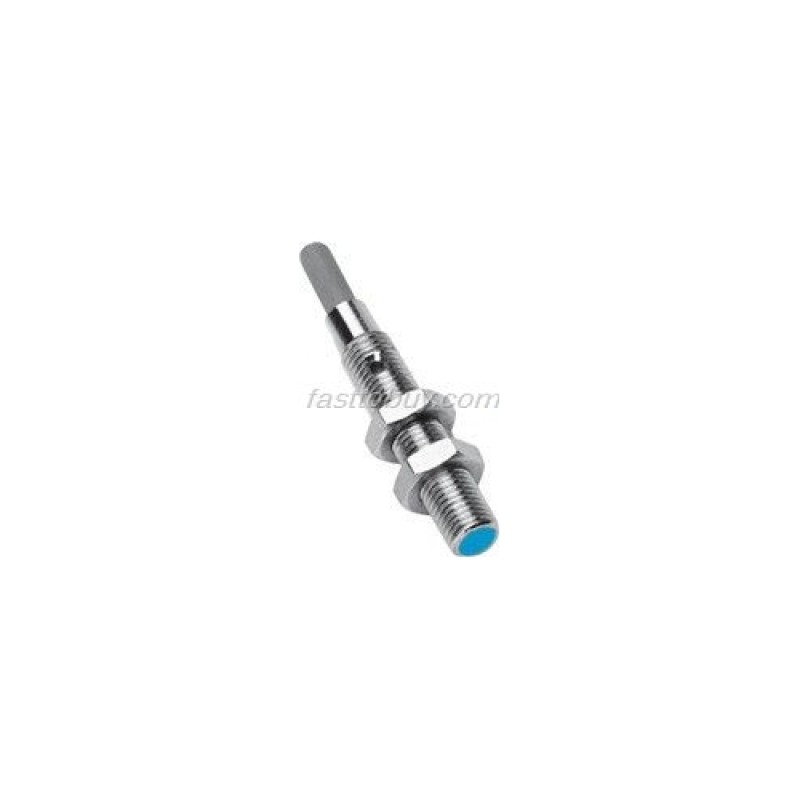

IM04-0B6PO-ZU1 SICK Inductive Proximity sensor NEW

Product Description:

Small housing sizes and low weight

Integrated LED indicator and snubber circuit

Rugged stainless steel housing

Thread sizes M4 and M5 available

Benefits:

Trouble-free placement in space-critical applications; high degree of design freedom

Reliable detection of rapid handling and assembly processes

High-visibility indicator LED for simple monitoring of operational state

High positioning accuracy

High resistance to shock and vibrations

Features:

Sensing range Sn: 0.6 mm

Installation in metal: Flush

Switching frequency: 5,000 Hz

Connection type: Cable, 3-wire, 2 m

Switching output: PNP

Output function: NC

Electrical wiring: DC 3-wire

Enclosure rating: IP 67 1)

Switching mode: NC

1) According to EN60529

Mechanics/electronics:

Design: cylindrical

Housing length: 22 mm

Supply voltage: 10 V DC ... 30 V DC

Residual ripple: ≤ 20 % 1)

Power consumption: ≤ 10 mA 2)

Voltage drop: ≤ 2 V 3)

Continuous current Ia: ≤ 100 mA

Hysteresis: 1 % ... 10 %

Repeatability: ≤ 2 % 4)

Temperature drift (of sr):: ≤ 10 %

EMC: According to EN 60947-5-2

Cable material: PUR

Conductor cross-section: 0.06 mm2

Cable diameter: 2.6 mm

Reverse polarity protection:√

Short-circuit protection: √

Housing material: Stainless steel, Stainless steel

Housing cap: Plastic

Power-up pulse suppression: -

Time delay before availability: ≤ 10 ms

Ambient temperature, operation: -25 °C ... 70 °C

Shock/vibration stress: 30 g, 11 ms/10 ... 55 Hz, 1 mm

Max. tightening torque: 0.8 Nm

Thread size: M4 x 0,5

Thread lenght: 19 mm

1) Of VS  2) Without load  3) 4) Ub = 20 ... 30 VDC, Ta = 23 °C ± 5 °C
