Product Description:

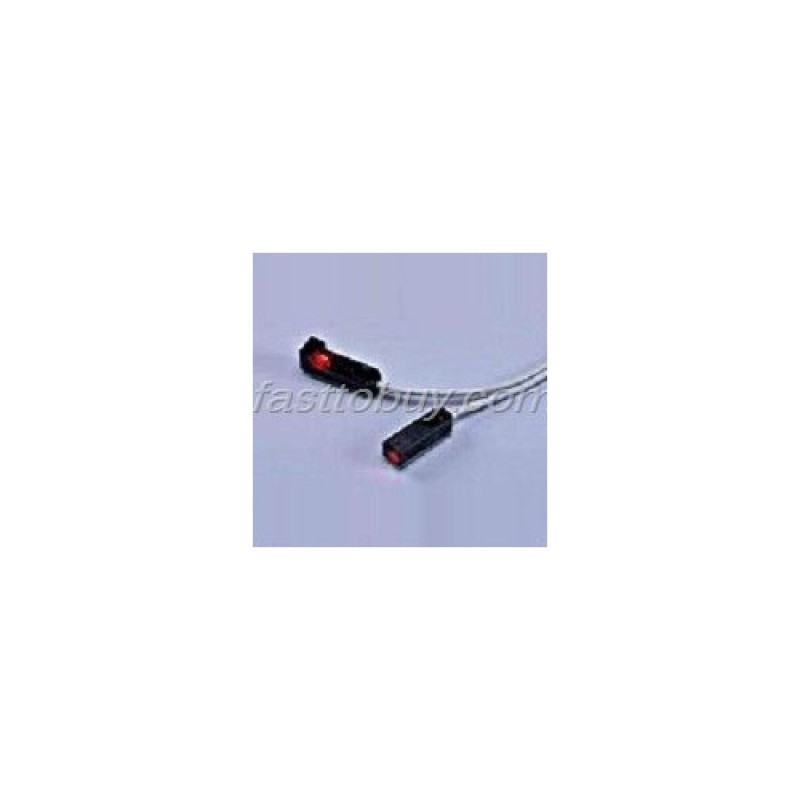

APM Series Amplifier Contained Compact Proximity Sensors
Overview?
Compact Proximity Sensors that can be install anywhere. A locking boss ensures easy and secure mounting
Benefits?
This thin sensor takes up little pace
Locking boss allows easy mounting by a single screw
Indicator Lamp is visable from all three directions allowing for easy verification of the operating state.
A wide variety of sensor types is available to support all kinds of applications
Specifications:
Type | Amplifier Contained Compact Proximity Sensors | |||||
Catalog Listing | APM-o3A1o (-S) | APM-o3B1o (-S) | APM-o3D1o (-S) | APM-o3E1o (-S) | ||
Actuation Method | High-frequency oscillation (unshielded type) | |||||
Rated Sensing Distance | 2.5mm, ±15% | |||||
Standard Target Object | 15 x 15 x 1mm iron | |||||
Oper. Voltage Range | 10.8 to 26.4Vdc (ripple voltage 10% max.) | |||||
Operation Mode | Normally Open | Normally Closed | Normally Open | Normally Closed | ||
ControlOutput | Switching Current | 30mA max. (resistive load) | ||||
Volt. Drop | 1V max. (with 30mA switching current) | |||||
Output Dielectric | 26.4Vdc | |||||
Operating Frequency | 120Hz | |||||
Operating Temperature | -10 to 55°C | |||||
Insulation Resistance | 50M?? min. (by 500Vdc megger) | |||||
Dielectric Strength | 1,000Vac, 50/60Hz for 1 minute between case and electically live materials | |||||
Vibration Resistance | 10 to 55Hz, 1.5mm peak-to-peak amplitude, 2 hrs each in X, Y and Z directions | |||||
Shock Resistance | 500m/s2 3 times in each X, Y and Z directions | |||||
Protective Structure | IP67 | |||||
Circuit Protection | Surge absorption, load short-circuit protection, reverse connection protection circuit | |||||
Case Material | Polyalylate resin | |||||
