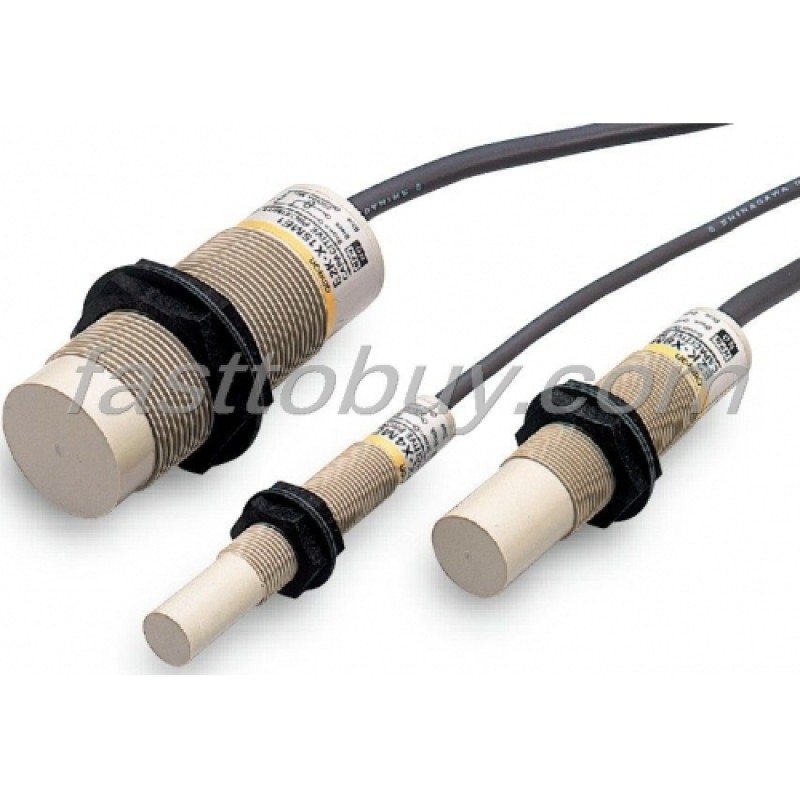

E2K-X8ME1 Cylindrical Proximity Sensor NEW

Item
Model

E2K-X4ME?

E2K-X4MY?

E2K-X8ME? E2K-X8MY?

E2K-X15ME? E2K-X15MY?

Sensing distance

4mm ±10%

8 mm ±10%

15 mm ±10%

Set distance *1

0 to 2.8 mm

0 to 5.6 mm

0 to 10 mm

Differential travel

4% to 20% of sensing distance

Detectable object

Conductors and dielectrics

Standard sensing object

Grounded metal plate: 50 × 50 × 1 mm

Response frequency

E Models: 100 Hz, Y Models: 10 Hz

Power supply voltage*2 (operating voltage range)

E Models: 12 to 24 VDC (10 to 30 VDC) Y Models: 100 to 220 VAC (90 to 250 VAC)

Current consumption

E Models: 15 mA max.

Leakage current

Y Models: 2.2 mA max. (Refer to page 4.)

Control output

Load current

E Models: 200 mA max.*2, Y Models: 10 to 200 mA E Models: 1 V max. (Load current: 200 mA, Cable length: 2 m), Y Models: Refer to Engineering Data on page 4.

Residual voltage

Indicators

E Models: Detection indicator (red), Y Models: Operation indicator (red)

Operation mode (with sensing object approaching)

E1/Y1 Models: NO E2/Y2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on page 4 for details.

Protection circuits

E Models: Reverse polarity protection, Surge suppressor, Y Models: Surge suppressor

Ambient temperature range

Operating/Storage: −25 to 70°C (with no icing or condensation)

Operating/Storage: −10 to 55°C (with no icing or condensation)

Ambient humidity range

Operating/Storage: 35% to 95% (with no condensation)

Temperature influence

±20% max. of sensing distance at 23°C in the operating temperature range

Voltage influence

E Models: ±2% max. of sensing distance at rated voltage at rated voltage ±20% Y Models: ±2% max. of sensing distance at rated voltage at rated voltage ±10%

Insulation resistance

50 M? min. (at 500 VDC) between current-carrying parts and case

Dielectric strength

E Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 3 times each in X, Y, and Z directions

Degree of protection

IP66 (IEC), in-house standards: oil-resistant

Connection method

Pre-wired Models (Standard cable length: 2 m)

Weight (packed state)

Approx. 65 g

Approx. 145 g

Approx. 205 g

Materi­als

Case

Heat-resistant ABS

Sensing surface

Clamping nuts

Polyacetal

Accessories

Tightening tool, Instruction Manual

Instruction manual
