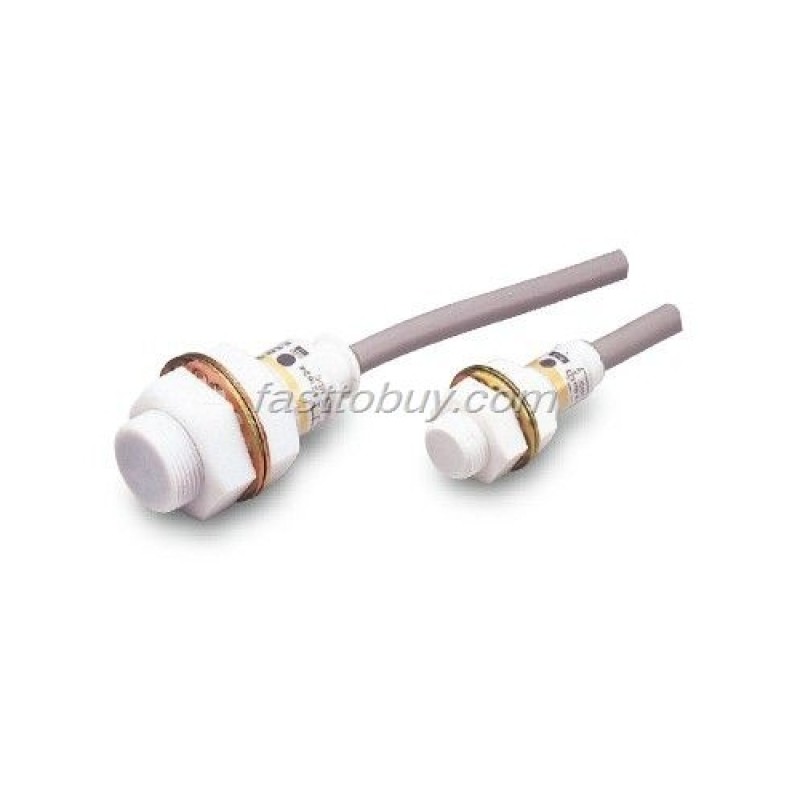

E2FQ-10E1 Chemical-resistant Proximity Sensor NEW

Model

E2FQ-X2E1
E2FQ-X2D1

E2FQ-X5E1
E2FQ-X5D1
E2FQ-X5Y1

E2FQ-X10E1
E2FQ-X10D1
E2FQ-X10Y1

Item

Sensing distance

2 mm ±10%

5 mm ±10%

10 mm ±10%

Set distance

0 to 1.6 mm

0 to 4 mm

0 to 8 mm

Differential travel

E1/Y1 Models: 10% max. of sensing distance, D1 Models: 20% max. of sensing distance

Detectable object

Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on page 3.)

Standard sensing object

Iron, 12 × 12 × 1 mm

Iron, 18 × 18 × 1 mm

Iron, 30 × 30 × 1 mm

Response frequency *

E1 Models: 1.5 kHz D1 Models: 800 Hz

E1 Models: 600 Hz D1 Models: 500 Hz

E1 Models: 400 Hz D1 Models: 300 Hz

Y1 Models: 25 Hz

Power supply voltage (operating voltage range)

E1 Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. Y1 Models: 24 to 240 VAC (20 to 264 VAC), 50/60 Hz D1 Models: 12 to 24 VDC (10 to 36 VDC), ripple (p-p): 20% max.

Current consumption

E1 Models: 17 mA max.

Leakage current

D1 Models: 0.8 mA max., Y1 Models: 1.7 mA max. (at 200 VAC)

Control output

Load current

E1 Models: 200 mA max., D1 Models: 5 to 100 mA, Y1 Models: 5 to 300 mA

Residual voltage

E1 Models: 2 V max. (Load current: 200 mA, Cable length: 2 m) Y1 Models: Refer to Engineering Data on page 3. D1 Models: 3 V max. (Load current: 100 mA, Cable length: 2 m)

Indicators

E Models: Detection indicator (red), Y Models: Operation indicator (red), D Models: Operation indicator (red), Setting indicator (green) (NO only)

Operation mode (with sensing object approaching)

E1/D1/Y1 Models: NO (Refer to the timing charts under I/O Circuit Diagrams on page 5 for details.)

Protection circuits

E1 Models: Load short-circuit protection, Reverse polarity protection, Surge suppressor, D1/Y1 Models: Surge sup­pressor

Ambient temperature range

Operating/Storage: −25 to 70°C (with no icing or condensation)

Ambient humidity range

Operating/Storage: 35% to 95% (with no condensation)

Temperature influence

±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C

Voltage influence

E1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range D1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±20% range Y1 Models: ±1% max. of sensing distance at rated voltage in the rated voltage ±10% range

Insulation resistance

50 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength

E1/D1 Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 4,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 10 times each in X, Y, and Z directions

Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions

Degree of protection

IEC 60529 IP67, in-house standards: oil-resistant

Connection method

Pre-wired Models (Cable length: 2 m)

Weight (packed state)

Approx. 70 g

Approx. 130 g

Approx. 170 g

Materials

Case

Fluororesin

Sensing surface

Clamping nuts

Toothed washer

Zinc-plated iron

Cable

Vinyl chloride

Accessories

Instruction manual
