- Stock: In Stock
- Model: D40A-1C2
- Weight: 0.15kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description:

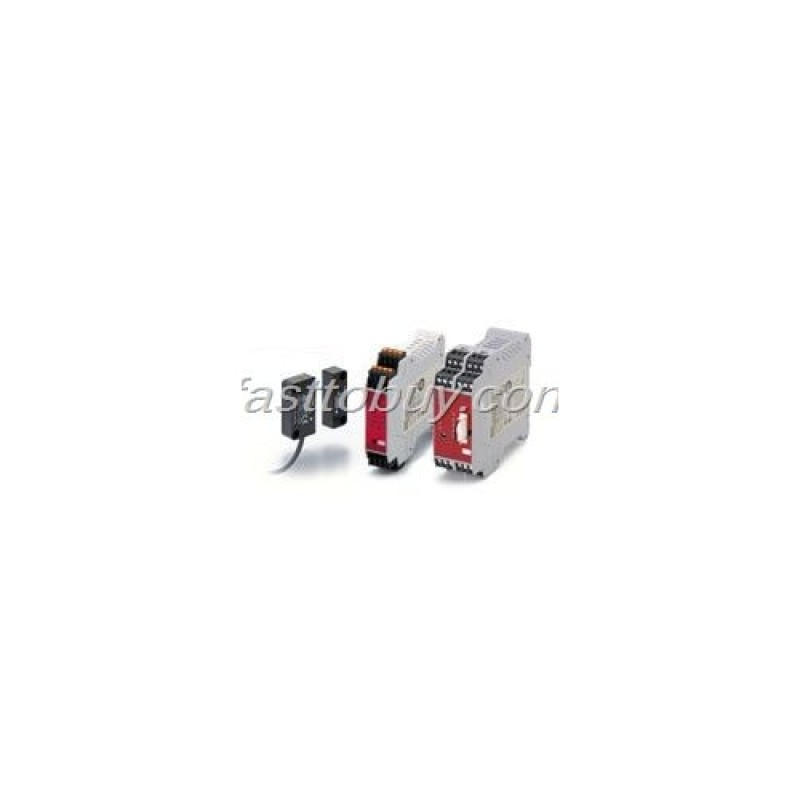

Electronic Detection Mechanism for Better Stability in Non-contact Door Switch Operation.
Specifications:
Model | D40A-1C[] | |
Operating | Operating distance | 5 mm min. |
characteristics *1 | OFF→ ON | |
| Operating distance | 15 mm max. |
| ON→ OFF | |
| Differential travel | Refer to "Detection Ranges" on Datasheet. |
| Influence of | ±20% of operating distance at 23°C, within temperature range of -10 to 55°C |
| temperature (max.) | |
Ambient operating temperature | -10 to 55°C (no icing or condensation) | |
Ambient operating humidity | 25% to 85% | |
Insulation resistance | 50 MΩ max. (at 500 VDC) | |
(between charged parts and case) | ||
Dielectric strength | 1,000 VAC for 1 min | |
(between charged parts and case) | ||
Vibration resistance | 10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm) | |
Shock resistance | 300 m/s2 min. | |
Degree of protection | IP67 | |
Material | PBT resin | |
Mounting method | M4 screws | |
Terminal screw tightening torque | 1 Nm | |
Power consumption | 0.6 W max. | |
Auxiliary outputs *2 | 24 VDC, 10 mA (PNP open-collector outputs) | |
LED indicators | Actuator not detected (red); actuator detected (yellow) | |
Connection cables | 2 m, 5 m, 0.15 m (Connector type) | |
Number of connectable switches *3 | 30 max. (wiring length: 100 m max.) | |
Weight | Switch: approx. 145 g, actuator: approx. 20 g (D40A-1C2) | |
*1.This is the distance where the switch operates from OFF to ON when approaching and the distance where the switch operates from ON to OFF when separating when the switch and actuator target marks are on the same axis, and the sensing surfaces coincide.
*2.Turns ON when the actuator is approaching. The G3R series of the SSR can be driven at an auxiliary output of 10 mA. Contact your OMRON representative for details.
*3.For details, refer to item 5 on Data Sheet.
