Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep

Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep
Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310m... Read More
0 reviews • Write a review
$83.00
Ex Tax: $83.00
  • Stock: In Stock
  • Model: NEMA17
  • Weight: 2.00kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
$504.00
Ex Tax:$504.00
Add to Cart Add to Wish List Compare this Product
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
Quickview
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
$387.00
Ex Tax:$387.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
$516.00
Ex Tax:$516.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
$562.00
Ex Tax:$562.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
$563.00
Ex Tax:$563.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
$539.00
Ex Tax:$539.00
Add to Cart Add to Wish List Compare this Product
Tags: NEMA17

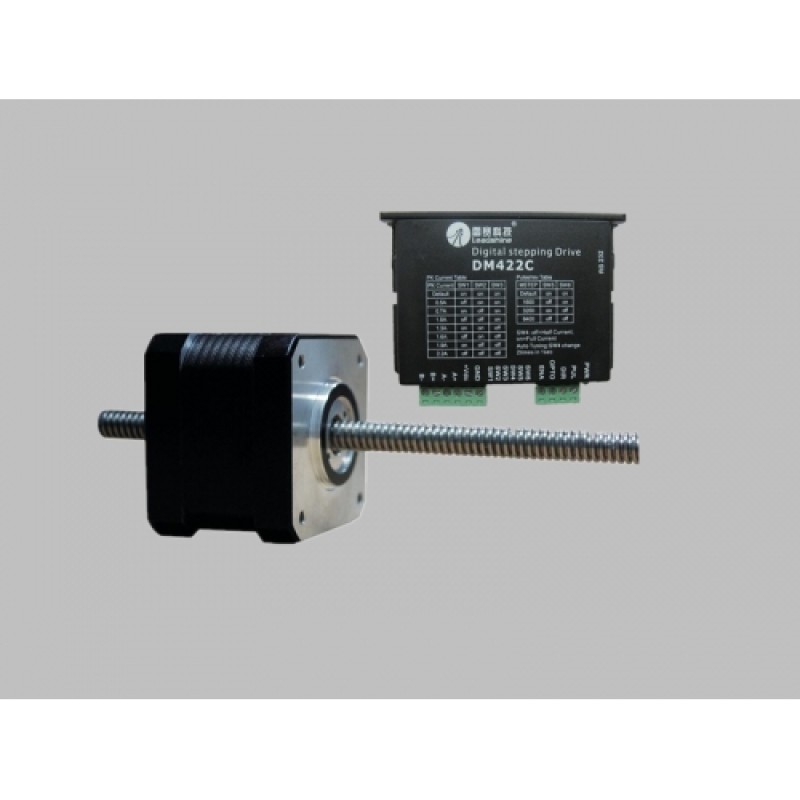

Through the shaft screw linear stepper drive motor kit NEMA17 42mm 2phase0.22N.M TR6.35*3.65(P2)310mm 18~40VDC Microstep 32 for 3D Printer   42HZ3115M6B2+DM422C

42HZ3115M6B2+DM422C

Motor 42HZ3115M6B2

2 Phase Hybrid Stepper Motors

General specifications:

Item

specifications

Step Angle Accuracy

±5%

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80? Max.

Ambient Temperature

(-20?)~(+50?)

Insulation Resistance

100MΩ Min.500VDC

Dielectric Strength

500VAC 1minute

Electrical Specifications:

Series Model

Step Angle(°)

Rated Current?A?

Phase Resistance(Ω)

Phase Inductance(mH?

Holding Torque(N.M)

42HZ1315M6B2

1.8

1.5

1.75

3.1

0.22

42HZ3115M6B2

1.8

1.5

1.75

3.1

0.22



Series Model

Mortor Length(mm)

Lead Wire(NO.)

Axial lenghth(mm)

42HZ1315M6B2

34

4

130

42HZ3115M6B2

34

4

300



Mechanical Dimensions and Wiring Diagram:



Product Description:

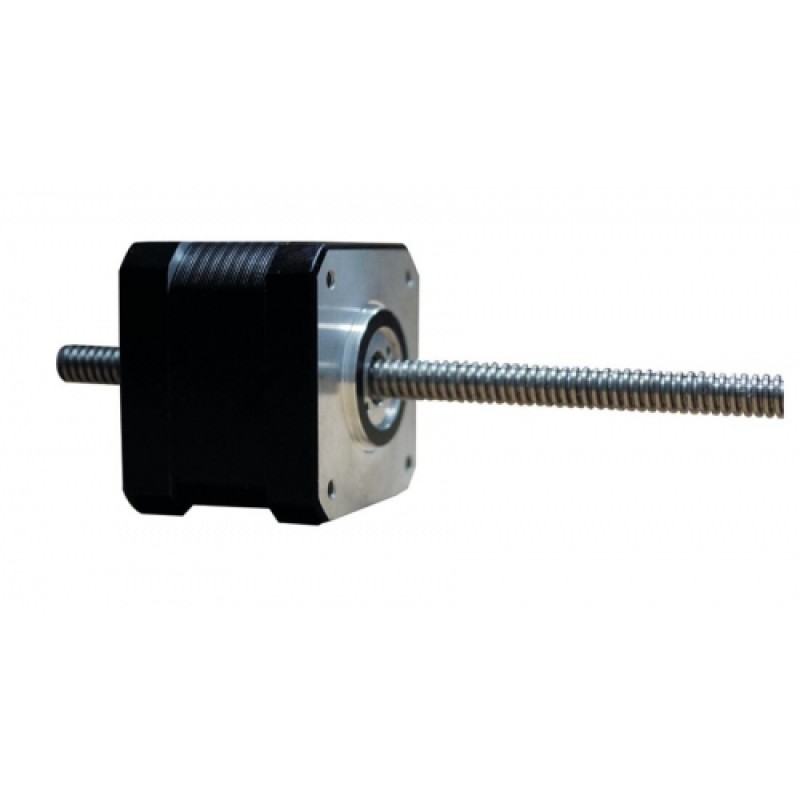

42 Two-phase Stepper Motor Machine Length: 34mmdiameter of axle: 6.35mmLength of axis: 300mm, TR6.35*3.65(P2)

Wiring: black and green  A+/A-,Red and blue B +, B -.

Applications:
Used for robots stepper motor,electronic automatic equipment stepping motor,medical instrument stepping motor,advertising instrument stepper motor,lighting& audio equipment stepper motor,printer stepper motor, textile machinery stepper motor.

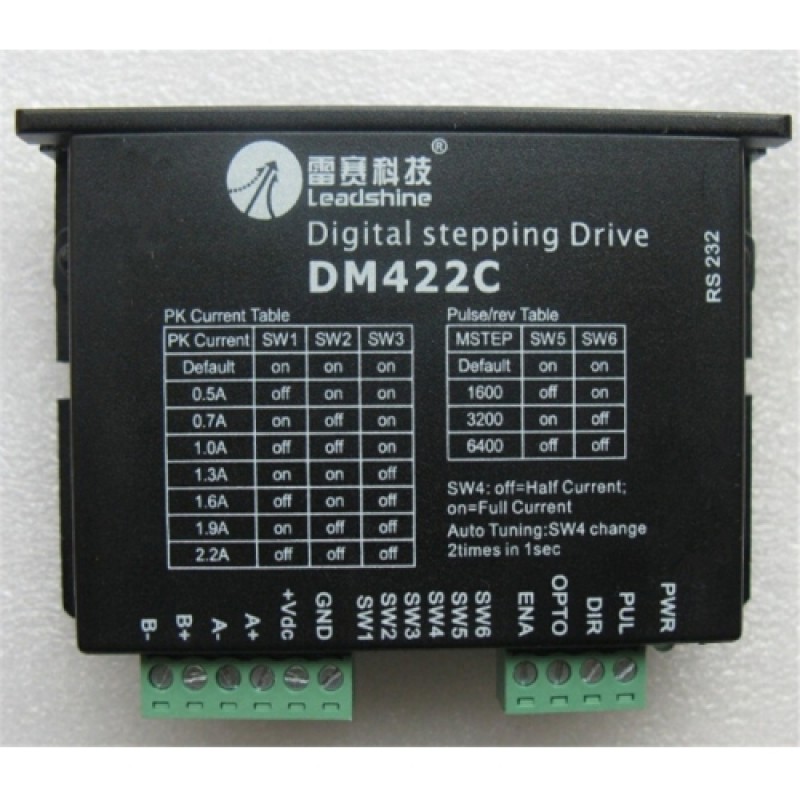

Drive DM422C

DM Series Classis Analog Stepper Drives

Highlights

Step & direction or CW/CCW control

Advanced DSP-based current control algorithm

Low-middle speed anti-resonance

Extra low noise; extra low motor heating; smooth motor movement

Easy setup via DIP switches for microstepping resolution and output current

Free software for fine tuning, output current, resolutions...

Automatic stepper motor identification and self configuration

Electrical Specifications (Tj = 25oC/77oF)

Phase

Series

Model

Current

Voltage

Microstep

Motor Adapter

Weight

Size

Controlling Signal

2 Phase

DM

DM422C

0.5-2.2A

18-40DCV

2-32

42,57

0.115

86*55*20

Single-ended Signal

DM Series Applications

Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.

DM422C Dimension



Typical Connection
