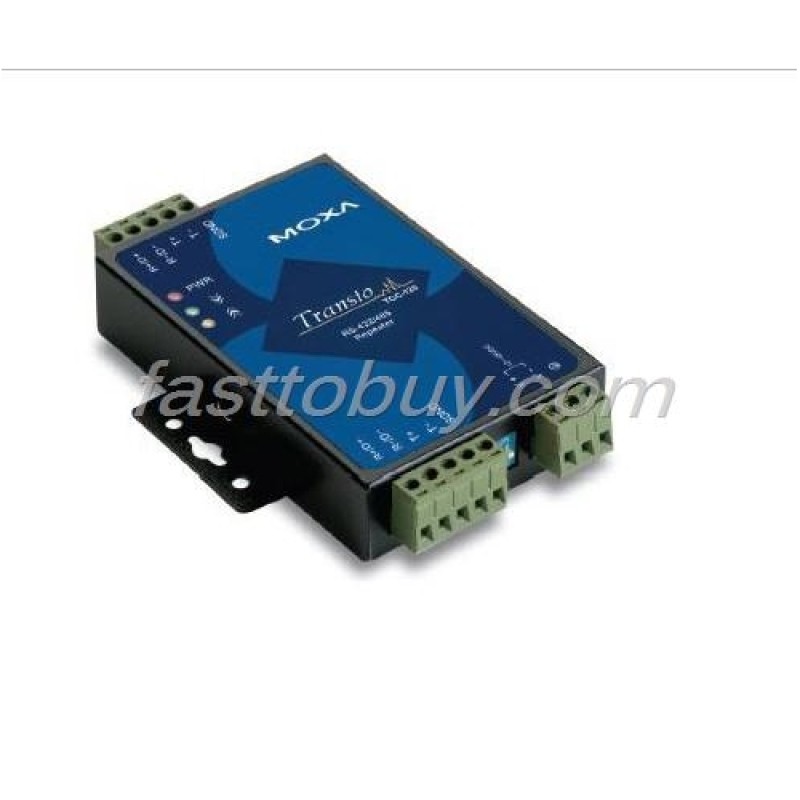

TCC-120I MOXA RS-422/485 Repeater isolated type

TCC-120I MOXA RS-422/485 Repeater isolated type
TCC-120I MOXA RS-422/485 Repeater isolated type
TCC-120I MOXA RS-422/485 Repeater isolated type
TCC-120I MOXA RS-422/485 Repeater isolated type
TCC-120I MOXA RS-422/485 Repeater isolated type
TCC-120I MOXA RS-422/485 Repeater isolated typeIf you need more than 10pcs and want to get better wh... Read More
$173.00
Ex Tax: $173.00
  • Stock: In Stock
  • Model: TCC-120I
  • Weight: 0.10kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: TCC-120I
TCC-120I MOXA RS-422/485 Repeater isolated type

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Features and Benefits

Boost serial signal to extend transmission distance

Wall or DIN-rail mounting

Terminal block for easy wiring

Power input from terminal block

DIP switch setting for built-in terminator (120 ohms)

Boost RS-422 or RS-485 signal, or convert RS-422 to RS-485

2 KV isolation protection (TCC-120I)

Introduction

The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.



• Serial Communication

Connectors

Terminal Block on both ends

Baudrate

50 bps to 921.6 Kbps

Signals

RS-422/485-4w: TxD+, TxD-, RxD+, RxD-
RS-485-2w: Data+, Data-

RS-485 Data Direction Control

ADDC® (automatic data direction control)

ESD Protection

15 KV for all signals

Optical Isolation

2 KV (TCC-120I only)

• Physical Characteristics

Housing

Aluminum

Dimensions

67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)

Weight

148 ± 5 g

• Environmental Limits

Operating Temperature

-20 to 60°C (-4 to 140°F)

Storage Temperature

-20 to 85°C (-4 to 176°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Power Requirements

Source of Power Input

Power input jack

Input Voltage

12 to 48 VDC

Power Consumption

TCC-120: 65 mA @ 12 V
TCC-120I: 180 mA @ 12 V

Voltage Reversal Protection

Protects against V+/V- reversal

Over Current Protection

Protects against two signals shorted together

• Standards and Certifications

Safety

UL 60950-1

EMC

CE, FCC

EMI

FCC Part 15 Subpart B Class B

EMS

EN 61000-4-2 (ESD) Level 2,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 1

Green Product

RoHS, CRoHS, WEEE

• MTBF (mean time between failures)

Time

1,949,025 hrs

Database

Telcordia (Bellcore), GB
