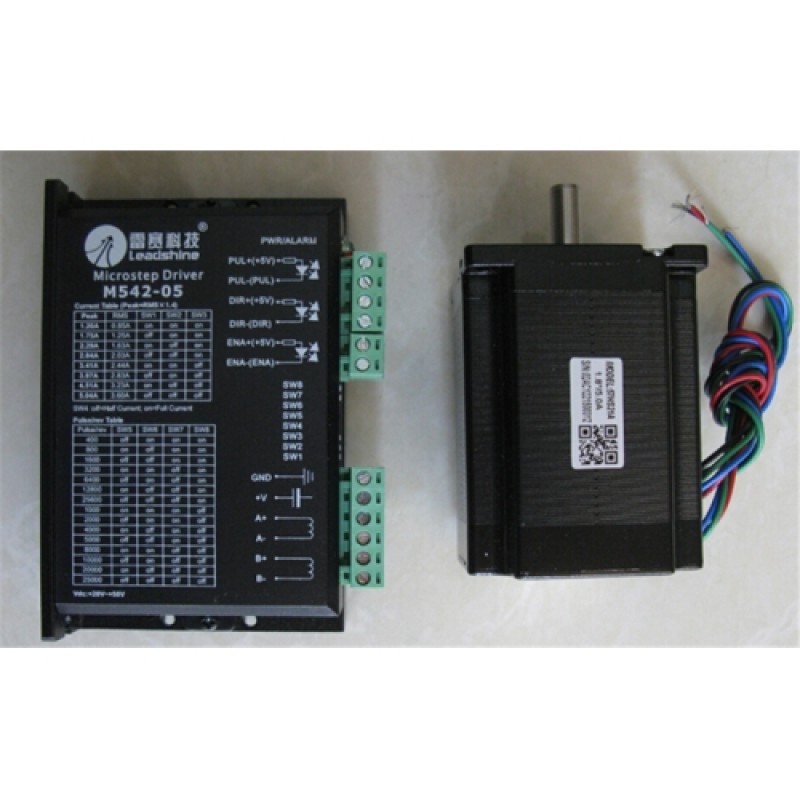

Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05

Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
Stepper Motor Drive 2ph 5A 2.1NM NEMA23 57mm 4 Wire 24-50VDC For CNC Engraving Machine 57HS21A+M542-05
M Series ApplicationsSuitable for applications require high reliability, good high speed performance... Read More
$60.00
Ex Tax: $60.00
  • Stock: In Stock
  • Model: NEMA23
  • Weight: 2.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA23

M Series Applications

Suitable for applications require high reliability, good high speed performance, extremely low cost stepper systems, such as CNC routers, milling or engraving machines, textile equipment, assembly machines, pick-and-place devices, etc.

Stepper Motor 57HS21A

General Specifications

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

57HS21A

Step Angle

1.8°

Phase

2 Phase

Holding Torque

2.1N.M

NEME Size

NEME 23

Motor frame size

Frame 57

Current /phase

5A

# of leads

4

Motor Weight

1.15Kg

Shaft diameter

8mm

Shaft Length

21mm

Motor Length L

76mm

Drive M542-05

M Series General Introduction

With the adoption of its pioneer "pure sinusoidal current control technology" and the latest "self-adjustment technology", Leadshine M series stepper drives can effectively reduce current ripples and mid-range vibration, enabling different motors to run at optimal performance and with lower heating. They can also eliminate drawbacks of difficulty of driving various motors, such as high heating with smaller inductance motors, low high-speed torque with large inductance motors, poor performance under low voltage, and high motor heating under high voltage.

Electrical Specifications


Phase

Series

Models

Current(A)

Voltage (V)

Microstepping

Motor adapter

Weight(kg)

External size (mm)

Controlling signal

Two phase

M

M542-05

1.0-5.0

DC(24-50)

2-128,5-125

42,57

0.271

118*75.5*34

Differential signal
