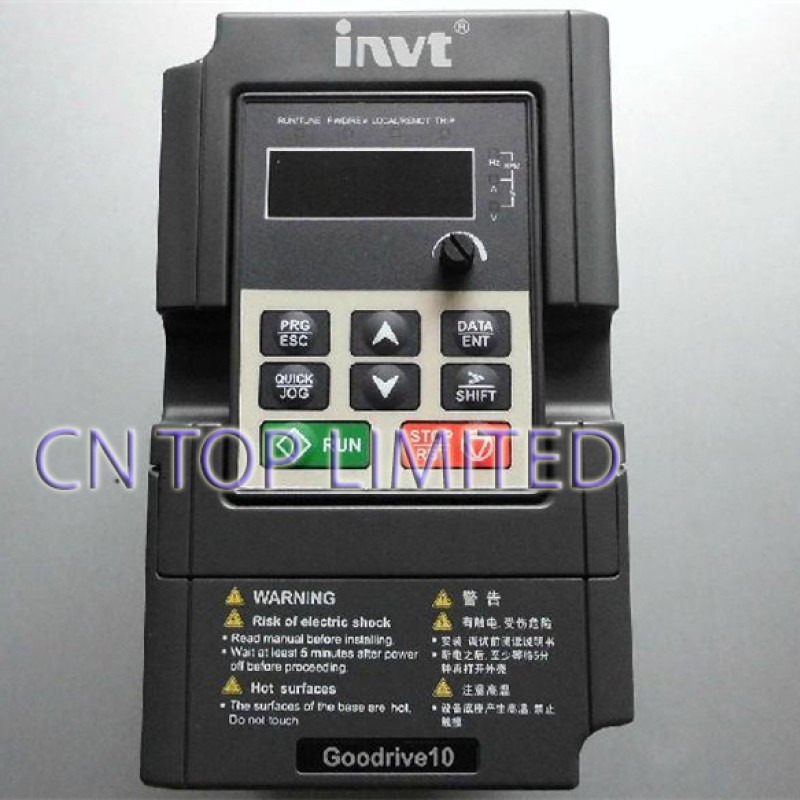

Single-phase 230V 0.75KW 9.3A Input GD10-0R7G-S2-B INVT Inverter NEW

Model

Output power (kw)

Input current (A)

Output Current (A)

Single-phase 230V

GD10-0R2G-S2-B

0.2

4.9

1.6

GD10-0R4G-S2-B

0.4

6.5

2.5

GD10-0R7G-S2-B

0.75

9.3

4.2

GD10-1R5G-S2-B

1.5

15.7

7.5

GD10-2R2G-S2-B

2.2

24

11

Three-phase 230V

GD10-0R2G-2-B

0.2

1.9

1.6

GD10-0R4G-2-B

0.4

2.7

2.5

GD10-0R7G-2-B

0.75

4.9

4.2

GD10-1R5G-2-B

1.5

9

7.5

GD10-2R2G-2-B

2.2

15

11

Three-phase 400V

GD10-0R7G-4-B

0.75

3.2

2.5

GD10-1R5G-4-B

1.5

4.3

4.2

GD10-2R2G-4-B

2.2

7.1

5.5

Function

Specifications

Input voltage (V)

230V: input voltage range: single phase or three phase 230V 10%

400V; input voltage range: three phase 400V 15%

Input frequency (Hz)

50Hz or 60Hz Allowed range: 47~63Hz

Output voltage (V)

Equal to input voltage with the deviation of less than 5%

Output frequency(Hz)

50Hz/60Hz, Fluctuation range: 5%

Control mode

V/f control

Maximum output frequency

200Hz

Adjustable-speed ratio

0.111111111

Overload capability

150% of rated current: 1 minute

Analog input resolution

<=20mV

Digital input resolution

<=2ms

Analog input/output

Input 1.0~10V or 0-20mA, output; 1.0~10V or 0~20mA

Digital input/output

5 channels digital input, 1 Y terminal output and 1 programmable relay output

Communication

MODBUS

Mountable mode

Wall mounting

Temperature of the running environment

-10~500C, derate above 400C

Cooling

Single/three-phase 230V 0.2-0.75kW natural cooling

Single/three-phase 230V 1.5-2.2kw, three-phase 400V 0.75-2.2kw

Fault protections

Over current, overvoltage, under voltage, over temperature, overload and other protections

Braking unit

Only standard for GD10-B
