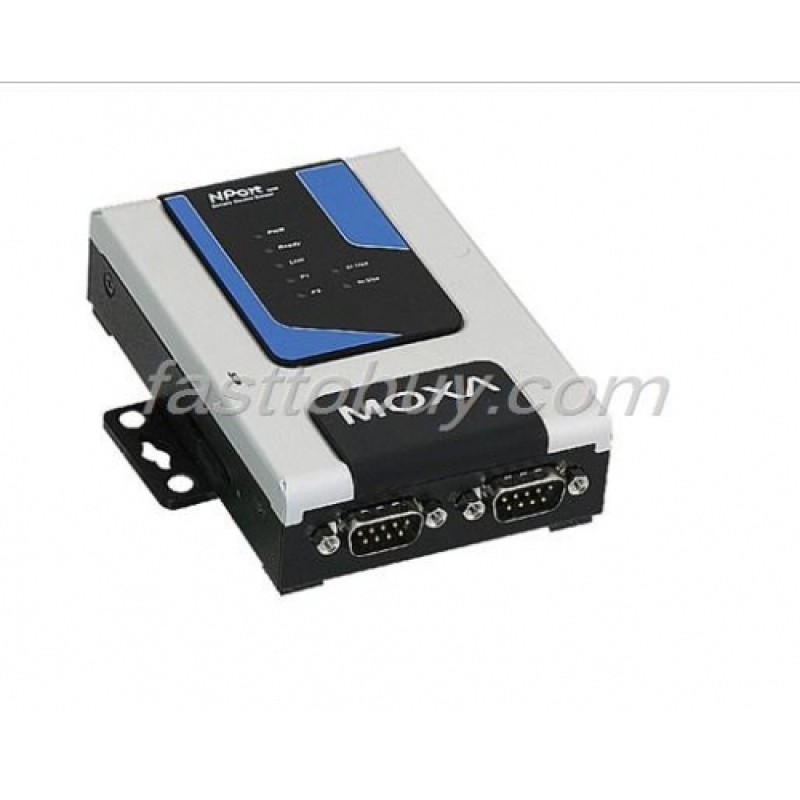

NPort 6250 MOXA Serial device servers 2-port RS-232/422/485

 Ethernet Interface

Number of Ports

1

Speed

10/100 Mbps, auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation

1.5 KV built-in

• Optical Fiber Interface (NPort 6250-S-SC/6250-M-SC)

• Serial Interface

Number of Ports

2

Serial Standards

RS-232/422/485

Connector

DB9 male

RS-485 Data Direction Control

ADDC® (Automatic Data Direction Control)

Serial Line Protection

15 KV ESD protection for all signals

Console Port

Serial port 1 doubles as RS-232 console port

• Serial Communication Parameters

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, DTR/DSR, XON/XOFF

Baudrate

50 bps to 921.6 Kbps (supports non-standard baudrates)

Pull High/Low Resistor for RS-485

1 KΩ, 150 KΩ

• Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

• Memory Expansion Slot

Slot Type

SD socket (supports up to 2 GB)

• Software

Network Protocols

ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE

Security Protocols

DES, 3DES, AES, SSH, SSL

Configuration Options

Web Console, Serial Console, Telnet Console, Windows Search Utility

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded

Fixed TTY Drivers

SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x

Linux Real TTY Drivers

Linux kernel 2.4.x, 2.6.x

Management

SNMP MIB-II

IP Routing

Static, RIP-I, RIP-II

• Operation Modes

Standard

Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled

Secure

Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH

• Applications

Terminal Sessions

8 sessions per port

• Physical Characteristics

Housing

Metal

Weight

730 g

Dimensions

Without ears: 77 x 111 x 28 mm (3.30 x 4.37 x 1.1 in)
With ears: 89 x 111 x 28 mm (3.50 x 4.37 x 1.1 in)

• Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Power Requirements

Input Voltage

12 to 48 VDC

Power Consumption

NPort 6250: 333 mA @ 12 V, 173 mA @ 24 V
NPort 6250-M-SC: 428 mA @ 12 V, 219 mA @ 24 V
NPort 6250-S-SC: 376 mA @ 12 V, 193 mA @ 24 V

Alarm Contact

Relay output with current carrying capacity of 1 A @ 24 VDC

Power Line Protection

1 KV burst (EN61000-4-4: EFT/B), 0.5 KV surge (EN61000-4-5)

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 2/3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 Level 1,
EN 61000-4-11

Freefall

IEC-68-2-6, IEC-68-2-34, IEC-68-2-32

Vibration

IEC-68-2-6, IEC-68-2-34

Green Product

RoHS, CRoHS, WEEE

• Reliability

Alert Tools

Built-in buzzer and RTC (real-time clock)

Automatic Reboot Trigger

Built-in WDT (watchdog timer)

MTBF (mean time between failures)

NPort 6250: 226,128 hrs
NPort 6250-M-SC: 225,762 hrs
NPort 6250-S-SC: 225,762 hrs
