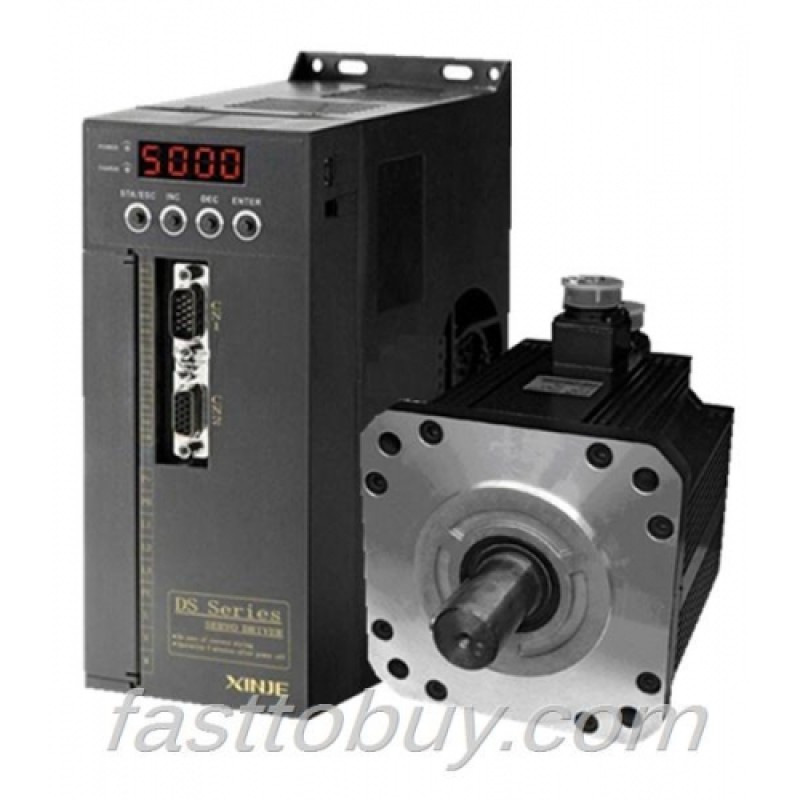

Xinje 3000W 3KW Servo System (Motor + Drive) MS-180ST-M19015-23P0 + DS2-23P0-A New

Voltage level

380V

220V

Motor type MS-180ST-

M21520_ _-44P5

M27015_ _-44P3

M35015_ _-45P5

M19015_ _-23P0

Motor code

0150

0151

0152

0052

Rated Power(KW)

4.5

4.3

5.5

3.0

Rated current(A)

9.5

10

12.0

12.0

Rated speed(rpm)

2000

1500

1500

1500

Max speed(rpm)

3000

2000

2000

2000

Rated torque(N·m)

21.5

27

35

19

Peak torque(N·m)

53

67

70

47

Back EMF constant(V/krpm)

140

172

113

97

Torque coefficient(N·m/A)

2.26

2.7

1.84

1.58

Rotor inertia(Kg·m2)

4.7×10-3

6.1×10-3

8.6×10-3

3.8×10-3

Winding resistor(Ω)

0.71

0.796

0.21

0.4

Winding inductance(mH)

4

4.83

1.57

2.42

Electrical time constant(ms)

5.6

6

7.47

6

Weight(Kg)

22.2

25.5

30.5

20.5

Encoder ppr(PPR)

2500

Pole pairs

4

Motor insulation level

Class B(130 °C)

Protection level

IP65

Ambient

Temperature

-20 °C ~+50 °C

Humidity

Related humidity <90%(no condensation)

Types

DS2-23P0-A

Suitable motor

Type MS-

MS-180ST-M19015_ _-23P0(motor code 0052)

Radius Speed (rpm)

Rated 1500/max 2000

Suitable encoder

Incremental encoder, 2500 ppr

Suitable motor max capacity [kW]

3.0

Continuous output current [Arms]

12.0

Max output current [Arms]

30.0

Input power supply

3-phase 220V, 50Hz

Control mode

Three phase or single phase full wave rectification IGBT PWM control, sine current drive mode

Using condition

Temperature

0~+50 °C /-20~+85 °C

Humidity

Under 90%RH (no condensation)

Vibration resistance/impact resistance

4.9m/s2 / 19.6m/s2

Structure

Foundation installation
