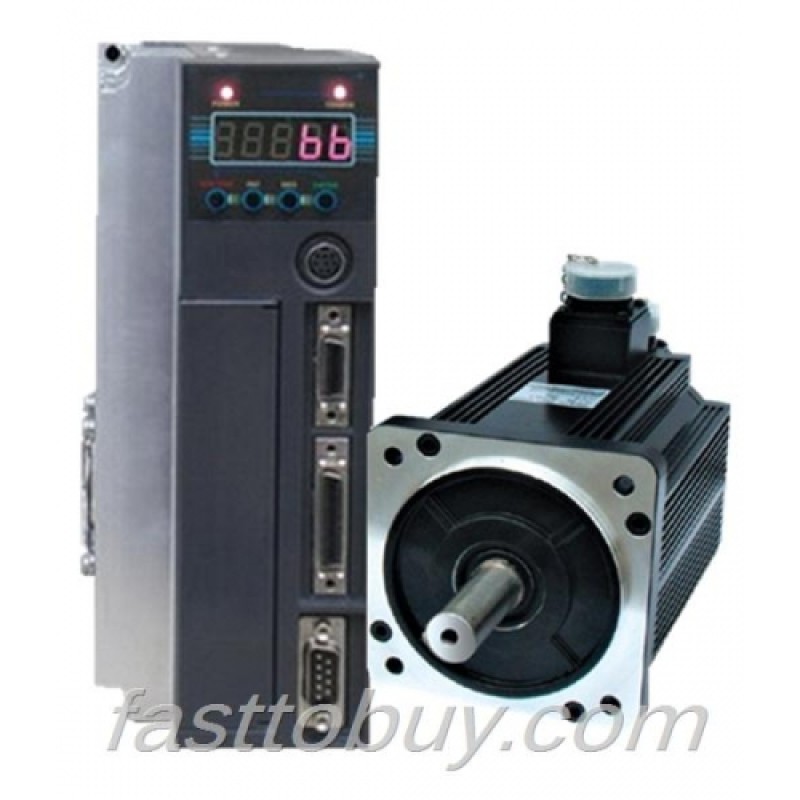

Xinje 1500W 1.5KW Servo System (Motor + Drive) MS-130ST-M10015-21P2 + DS3-21P5 New

Voltage level

220V

Motor type

MS-130ST-M10015_ _-21P5

MS-130ST-M06025_ _-21P5

Rated power (KW)

1.5

1.5

Rated current (A)

6.0

6.0

Rated speed (rpm)

1500

2500

Rated torque (N·m)

10

6

Peak torque (N·m)

25

18

Back EMF constant (V/krpm)

103

65

Torque coefficient (N·m/A)

1.67

1.0

Rotor inertia (Kg·m2)

1.94×10-3

1.26×10-3

Winding resistor (Ω)

1.34

1.21

Winding inductance (mH)

5.07

3.87

Electrical time constant (ms)

3.78

3.26

Weight (Kg)

11.5

11.5

Encoder ppr (PPR)

2500

Pole pairs

4

Motor insulation level

Class B (130 °C)

Protection level

IP65

Ambient temperature

-20 °C ~50 °C

Ambient humidity

Related humidity <90% (no condensation)

servo type

DS3-20P7

DS3-21P5

DS3-21P8

motor

type MS-

80ST-M02430_ _-20P7

130ST-M10015_ _-21P5

110ST-M06030_ _-21P8

motor code

0011

0044

0034

motor speed(rpm)

rated 3000/max 4000

rated 1500/max 2000

rated 3000/max 4000

encoder

Incremental encoder, 2500 ppr

max motor capacity [kW]

0.75

1.5

1.8

continuous output current [Arms]

3

6

6

max output current [Arms]

9

18

18

allowable recurring frequency (time/min)

31

input power

three phases or single phase AC200~240V, 50/60Hz

control mode

three phase or single phase full wave rectification IGBT PWM control, sine current drive mode

use condition

temperature

0~+50 °C /-20~+85 °C

humidity

under 90% RH (no condensation)

vibration resistance/impact resistance

4.9m/s2 / 19.6m/s2

structure

foundation installation
