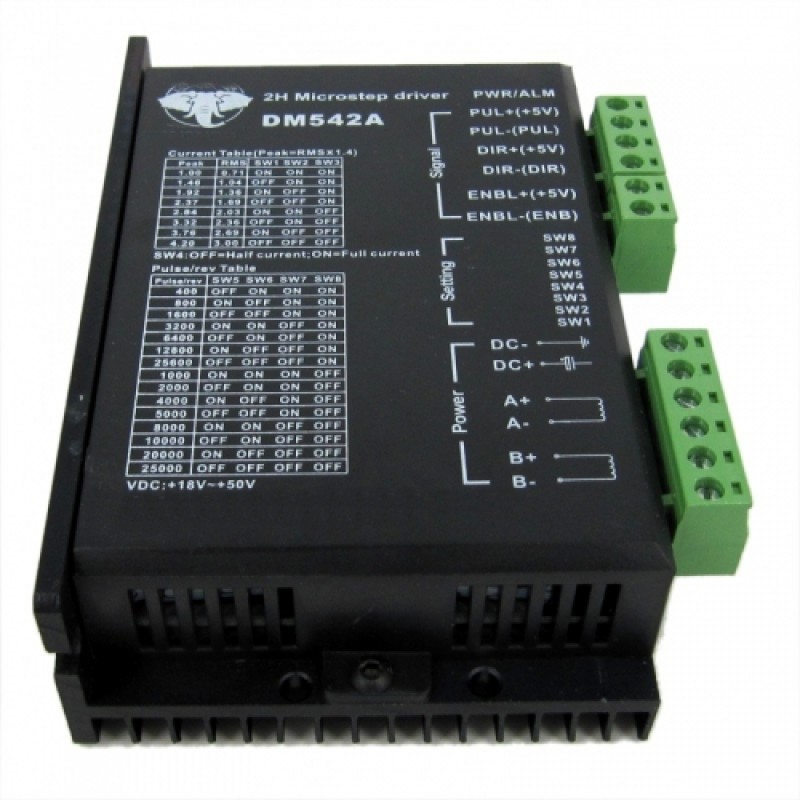

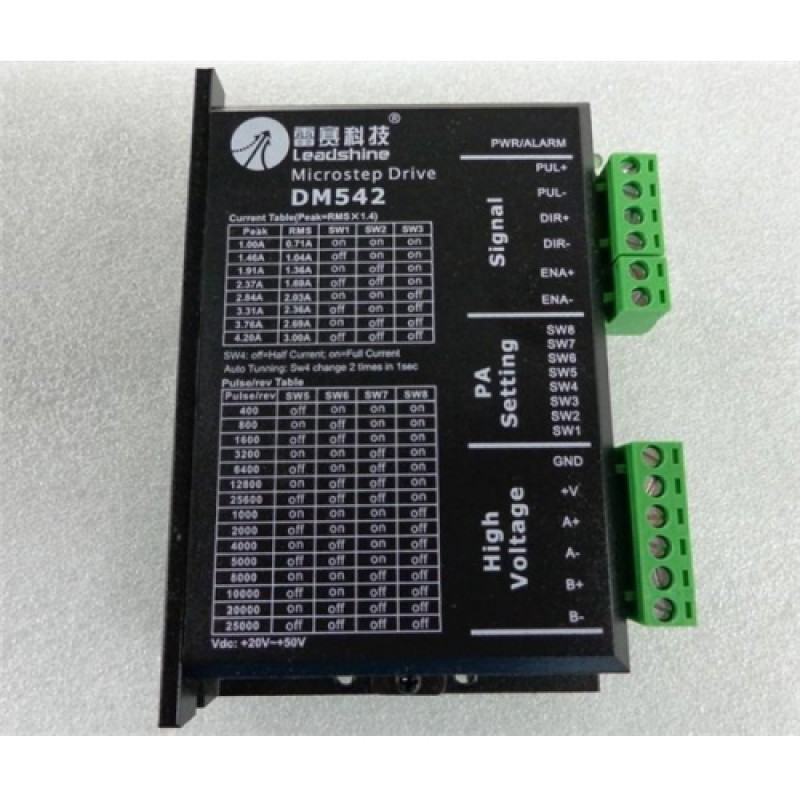

Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542

Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema23 34 Motor DM542
Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema 23 34 Motor The DM542 is a versatil... Read More
0 reviews • Write a review
$38.00
Ex Tax: $38.00
  • Stock: In Stock
  • Model: 1~4.2A
  • Weight: 0.50kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
20-400W brushless DC servo motor drive ACS806 20-80VDC 6A Leadshine New
Quickview
20-400W brushless DC servo motor drive ACS806 20-80VDC 6A Leadshine New
$152.00
Ex Tax:$152.00
Add to Cart Add to Wish List Compare this Product
2H1160 Kinco Stepper Drive 2ph 6.5A 60-123VAC New
Quickview
2H1160 Kinco Stepper Drive 2ph 6.5A 60-123VAC New
$158.00
Ex Tax:$158.00
Add to Cart Add to Wish List Compare this Product
2M1180N Kinco Stepper Drive 2ph 8A 110VAC New
Quickview
2M1180N Kinco Stepper Drive 2ph 8A 110VAC New
$205.00
Ex Tax:$205.00
Add to Cart Add to Wish List Compare this Product
2M2280N Kinco Stepper Drive 2ph 8A 220VAC New
Quickview
2M2280N Kinco Stepper Drive 2ph 8A 220VAC New
$265.00
Ex Tax:$265.00
Add to Cart Add to Wish List Compare this Product
2M412 Kinco Stepper Drive 2ph 1.2A12-40VDC New
Quickview
2M412 Kinco Stepper Drive 2ph 1.2A12-40VDC New
$67.00
Ex Tax:$67.00
Add to Cart Add to Wish List Compare this Product
2M420 Kinco Stepper Drive 2ph 2.5A 24-40VDC New
Quickview
2M420 Kinco Stepper Drive 2ph 2.5A 24-40VDC New
$79.00
Ex Tax:$79.00
Add to Cart Add to Wish List Compare this Product
2M530 Kinco Stepper Drive 2ph 3.5A 24-48VDC New
Quickview
2M530 Kinco Stepper Drive 2ph 3.5A 24-48VDC New
$83.00
Ex Tax:$83.00
Add to Cart Add to Wish List Compare this Product
2M860 Kinco Stepper Drive 2ph 6A 24-70VDC New
Quickview
2M860 Kinco Stepper Drive 2ph 6A 24-70VDC New
$99.00
Ex Tax:$99.00
Add to Cart Add to Wish List Compare this Product
Tags: 1~4.2A

Leadshine DM542 Stepper Drive 2ph 1~4.2A 20~50VDC Matching Nema 23 34 Motor


The DM542 is a versatility fully digital stepping drive based on a 32-bit DSP technology. Users can set any micro-stepping in 512 bits and any current beyond current rating, which can reach the needs of many situations. Because of the built-in micro-stepping technology, it can reach the high micro stepping and operates so smoothly whatever low, middle or high speed operating.  Compared with traditional analog drives, DM542 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542 an ideal choice for high requirement applications.



Key Features:



 Anti-Resonance provides optimal torque and nulls mid-range instabilityMotor auto-identification and parameter auto-configuration technology, offers optimal responses with different motorsMulti-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000Soft-start with no "jump" when powered onInput voltage 18-50VDC8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20APulse input frequency up to 200 KHz, TTL compatible and optically isolated inputAutomatic idle-current reductionSuitable for 2-phase and 4-phase motorsSupport PUL/DIR and CW/CCW modesOver-voltage, over-current protections



Applications:


Suitable for many kinds of mid-size and small size automation device and facilities, such as: engraving machine, marking machine, cutting machine, laser photo-typesetting, graphic plotter, numerical control machine and auto assembly equipment etc. Its unique features make the DM542 an ideal solution for applications that require high-speed and little noise







Leadshine Drive Lectotype List



Phase

Series

Models

Current(A)

Voltage (V)

High subdivision Number

Motor adapter

Weight(kg)

External size (mm)

Controlling signal



Two phase

M

M542 V2.0

1.0-4.2

DC(24-50)

2-128,5-125

42,57

0.271

118*75.5*34

Differential signal



M752

1.26-5.2

DC(36-75)

2-256,5-200

57,86

0.28

118*75.5*34

Differential signal



M860 V5.0

2.4-7.2

DC(24-80)

2-256,5-200

57,86

0.57

151*97*48

Differential signal



MA860

2.4-7.2

AC(24-60)

2-256,5-200

57,86

0.57

151*97*48

Differential signal



MA860H

2.4-7.2

AC(36-80)

2-256,5-200

86,110

0.58

151*97*48

Differential signal



M415B

0.21-1.5

DC(18-40)

1-64

39,42

0.115

86*55*20

Signal End



M542

1.0-4.2

DC(20-50)

2-128,5-125

42,57,86

0.28

118*75.5*33

Differential signal



M860

2-6.0

DC(24-90)

2-256,5-250

57,86

0.683

151*100*56

Differential signal



DM432C

0.3-3.2

DC(18-40)

2-256

42,57

0.2

116*69.2*26.5

Differential signal



   DM542

 1.0-4.2

 DC(20-50)

 2-128,5-125

    42,57

 0.28

 118*75.5*33

    Differential signal



DM556

0.3-5.6

DC(18-50)

2-128,5-125

42,57

0.28

118*75.5*34

Differential signal



DM856

0.3-5.6

DC(18-80)

2-128,5-125

42,57,86

0.28

118*75.5*34

Differential signal



 DM860

 2.4-7.2

 DC(24-60)

 2-128,5-125

 57,86

 0.57

 151*97*48

 Differential signal



DM882

1.8-8.2

DC(24-90)

2-50

42,57,86

0.52

143*97*48

Differential signal



DM1182

0.7-8.2

AC(60-100)

2-128,5-125

86,110,130

1.7

200*145*83

Differential signal





High-voltage products

MD2278

0.45-7.8

AC(80-220

2-50

86,110,130

1.05

212*158.7*13.5

Differential signal



MD2282

0.45-7.8

AC(80-220

2-50

86,110,130

1.0

212*167*64

Differential signal



Three phase

ND

3ND583

2.1-8.3

DC(18-50)

200-10000

step/circle

42,57,86

0.38

118*75.5*34

Differential signal

3ND883

2.1-8.3

DC(18-80)

200-10000 step/circle

42,57,86

0.38

143*97*48

Differential signal

High-voltage products

3MD2280

0-8.0

AC(80-220)

400-10000 step/circle

110,130

1.05

212*158.7*13.5

Differential signal

.
