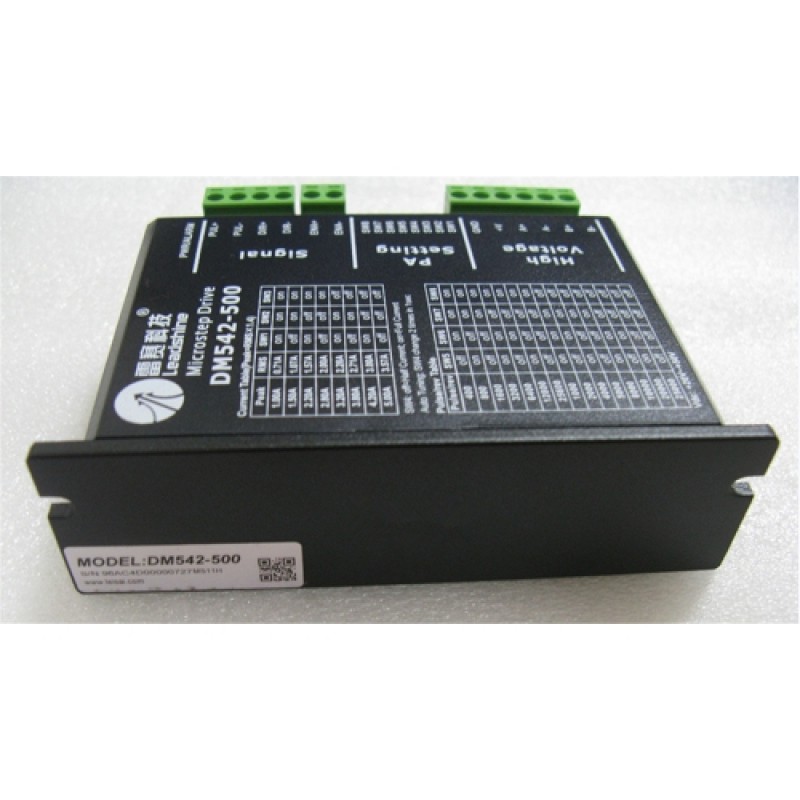

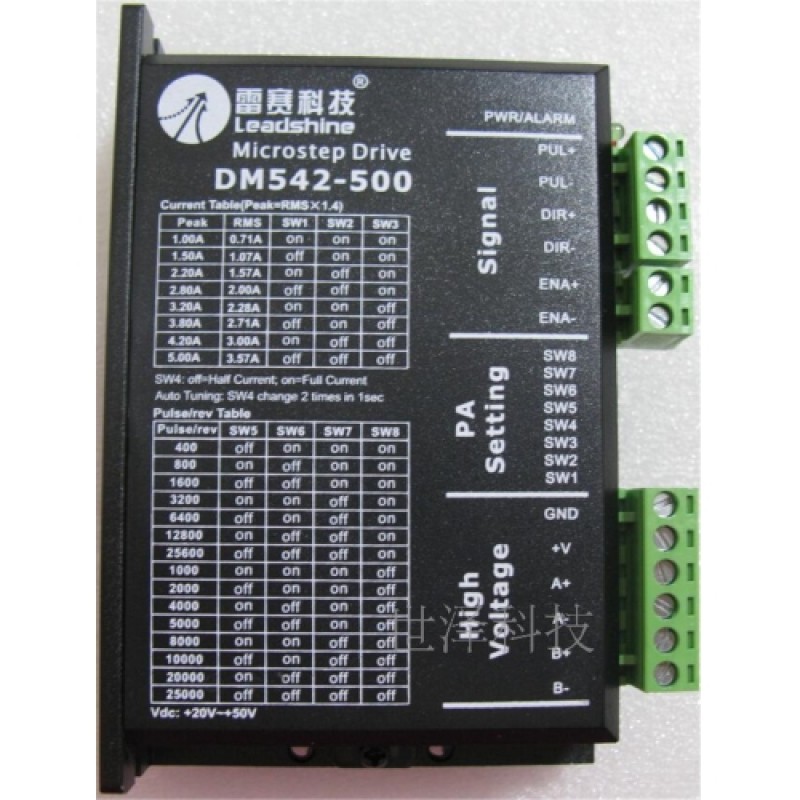

CNC Stepper Drive 2ph 1~5A 20~50VDC Matching Nema23 34 Motor DM542-500 Leadshine

Stepper Drive 2ph 1~5A 20~50VDC Matching 57mm NEMA23 86mm NEMA34 motor DM542-500 Leadshine

DM542-500 digital low-voltage stepper motor drive, using the latest 32-bit DSP technology, suitable for driving 57,86 series motor, with excellent low-speed performance to meet the application needs of most small and medium sized equipment.

With built-in micro-segmentation technology, even at low breakdown conditions, but also to achieve high breakdown effect, low-speed operation is very smooth, minimal noise.

Drive internal integration parameter self-tuning feature that can automatically generate the optimal operating parameters for different motors to maximize the performance of the motor.

Features

Can drive four lines, 8 lines of two-phase stepper motor

Voltage input range: 18 ~ 50 VDC

Current Max: 5A, Resolution: 0.1A

Subdivision range: 400 ~ 25600ppr

Signal Input: Differential / Single-Ended, pulse / direction or double pulse, 5 ~ 24VDC level compatible

Impulse Response Frequency: 200KHz

Built-in micro-segmentation

The electrical parameters of the automatic tuning function

Precision current control of the motor heat is greatly reduced

Stationary current is automatically reduced by half

Optically isolated inputs, strong anti-jamming capability

Overvoltage, overcurrent protection function

Specifications

Applications

For a variety of small and medium sized automation equipment and instruments, such as: laser processing equipment, engraving equipment, medical equipment, measuring equipment, electronic processing equipment, textile and garment equipment. User expectations low vibration, low noise devices used in, the better
