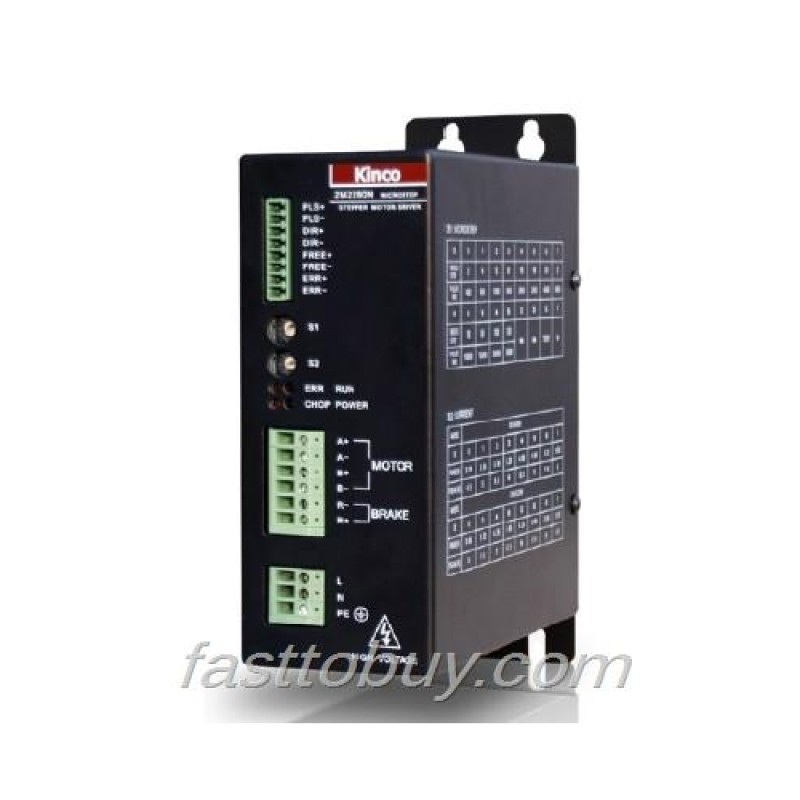

Features?
High-Performance, Low Prices.
The Input Voltage of 2M2280N is 187VAC~250VAC (Single-Phase), Help You to Reduce the Cost of Transformer.
Automatic Parameter Adjustable Regulation.
2M2280N Apply the Test Running Function.
Phase Memory Technology: Remember the Phase Position of the Motor Ehen the Motor Stopped, When Re-Power the Driver, the Motor Won’t Shake Anymore.
PLS+DIR and CW/CCW Control Signal Available.
Provide Optocoupler Isolated ERR Output Signal.
Automatic Semi-Current Locking, Reduce the Motor’s Heat Drastically.
Optocoupler Isolated Signal Input Circuit. The Maximum Frequency of Control Signal is Up to 400k Hz.
12 Micro-Step Value, the Maximum Micro-Step Value is 128.
With the Protection Function of Overvoltage, Undervoltage, Short Circuit and Heat Protection.
Specifications:
2M2280N
Input Voltage: Single Phase 220V AC +/-15%(50Hz)
Output Current(Peak,Unit:A): 4.5~8
Input Current: 6~16mA
Micro Step: 2~128
Model | 2M2280N |
| |||||||||||||||
Parameter Lable |
| ||||||||||||||||
Parameter | Value |
| |||||||||||||||
Input Voltage | Single phase 220V AC +/-15%(50Hz)(187VAC ~253VAC) |
| |||||||||||||||
Output Current | 4.5A, 5A, 5.5A, 6A, 6.5A, 7A, 7.5A, 8A |
| |||||||||||||||
Micro Step | 2/4/5/8/10/16/20/32/50/64/100/128 |
| |||||||||||||||
Input Signal | PLS/DIR/FRE current limit: 6~16 mA |
| |||||||||||||||
Control Signal Mode | PLS + DIR, CW/CCW |
| |||||||||||||||
Output Signal | Port: ERR, (maximum current: 10mA) |
| |||||||||||||||
Protection | Overvoltage, under voltage, short circuit and heat protection. |
| |||||||||||||||
Brake Mode * | Available to connect the power resister. Need custom. |
| |||||||||||||||
Environment Parameter |
| ||||||||||||||||
Cooling Way | Fan |
| |||||||||||||||
Environment | Operation Environment | Avoid the Environment with Great Amount of metallic Powder, oil Mist, or Erosive Gases. |
| ||||||||||||||
Operation Humidity | <85%, RH |
| |||||||||||||||
Operation Temperature | 0°C ~+40°C |
| |||||||||||||||
Storage Temperature | -20°C ~+70°C |
| |||||||||||||||
Weight | 1.5Kg |
| |||||||||||||||
Dimensions | 210mm×147mm×66mm |
| |||||||||||||||
Protect Level | IP20 |
| |||||||||||||||
|
| ||||||||||||||||
Function of Rotary Switch |
| ||||||||||||||||
S1, Micro-step? |
| ||||||||||||||||
S1 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |||||||||
Micro Step | 2 | 4 | 5 | 8 | 10 | 16 | 20 | 32 | |||||||||
Pulse/rev | 400 | 800 | 1000 | 1600 | 2000 | 3200 | 4000 | 6400 | |||||||||
S1 | 8 | 9 | A | B | C | D | E | F | |||||||||
Micro Step | 50 | 64 | 100 | 128 | NA | NA | TEST | NA | |||||||||
Pulse/rev | 10000 | 12800 | 20000 | 25600 |
| ||||||||||||
|
| ||||||||||||||||
S2, Current? |
| ||||||||||||||||
Mode | PLS+DIR |
|
|
|
|
|
|
| |||||||||
S2 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |||||||||
Rms(A) | 3.18 | 3.54 | 3.89 | 4.24 | 4.6 | 4.95 | 5.3 | 5.65 | |||||||||
Peak(A) | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | |||||||||
Mode | CW/CCW |
|
|
|
|
|
|
| |||||||||
S2 | 8 | 9 | A | B | C | D | E | F | |||||||||
Rms(A) | 5.65 | 5.3 | 4.95 | 4.6 | 4.24 | 3.89 | 3.54 | 3.18 | |||||||||
Peak(A) | 8 | 7.5 | 7 | 6.5 | 6 | 5.5 | 5 | 4.5 | |||||||||
