- Stock: In Stock

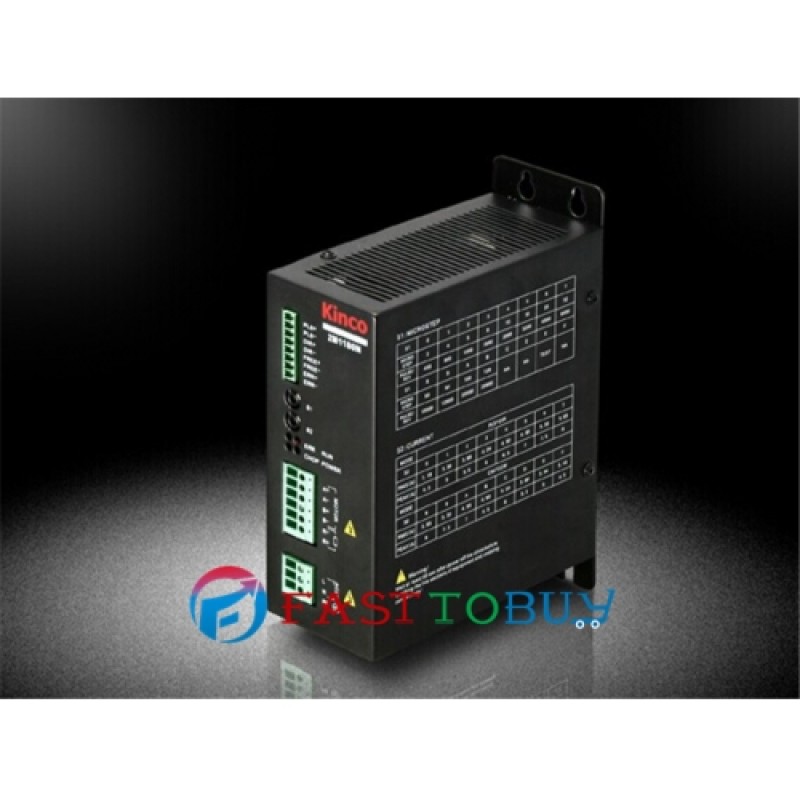

- Model: 2M1180N
- Weight: 2.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Features?
High-Performance, Low Prices;
The Input Voltage of 2M1180N is 77VAC~123VAC (Single-Phase);
Automatic Parameter Adjustable Regulation;
Phase Memory Technology: Remember the Phase Position of the Motor When the Motor Stopped, when Re-Power the Driver, the Motor Won’t Shake Anymore;
PLS+DIR and CW/CCW Control Signal Available;
Supply Optocoupler Isolated ERR Output Signal;
Automatic Semi-Current Locking, Reduce the Motor’s Heat Drastically;
Optocoupler Isolated Signal Input Circuit. The Maximum Frequency of Control Signal is Up to 400k Hz;
12 Micro-Step Value, the Maximum Micro-Step Value is 128;
With the Protection Function of Overvoltage, Under voltage, Short Circuit and Heat Protection.
Specifications:
2M1180N
Input Voltage: Single Phase 77VAC~123VAC,(50Hz)
Output Current(Peak,Unit:A): 4.5~8
Input Current: 6~16mA
Micro Step: 2~128
Model | 2M1180N | |
Parameter Lable | ||
Parameter | Value | |
Input Voltage | Single Phase 77VAC~123VAC,(50Hz) | |
Output Current | 4.5A, 5A, 5.5A, 6A, 6.5A, 7A, 7.5A, 8A | |
Micro Step | 2/4/5/8/10/16/20/32/50/64/100/128 | |
Input Signal | PLS/DIR/FRE Current Limit: 6~16 mA | |
Control Signal Mode | PLS + DIR, CW/CCW | |
Output Signal | Prot: ERR( Maximum Output Current: 10mA ) | |
Protection | Overvoltage, Under Voltage, Short Circuit and Heat Protection. | |
Brake Mode | Available to Connect the Power Resister. Need Custom. | |
Environment Parameter | ||
Cooling Way | Fan | |
